Connector Views



Cruise Control Connector End Views

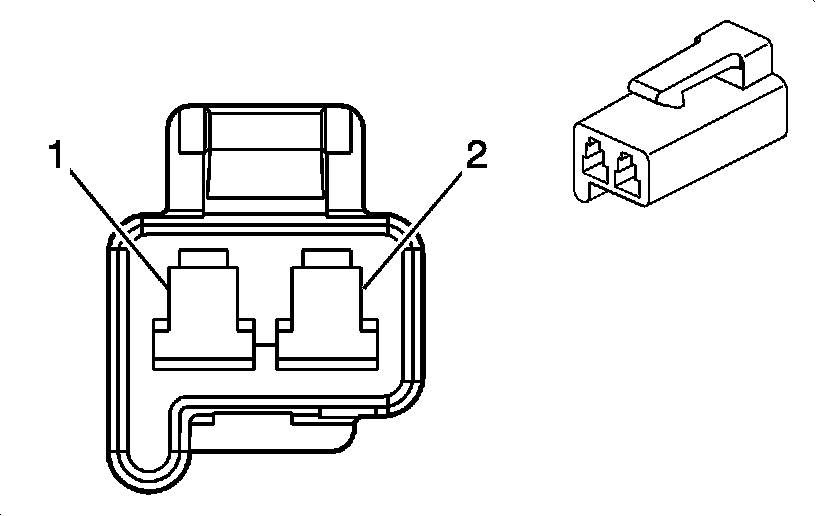

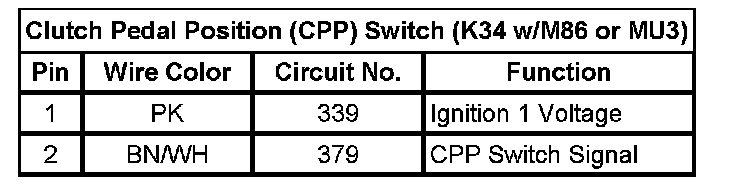

Clutch Pedal Position (CPP) Switch (K34 w/M86 or MU3)

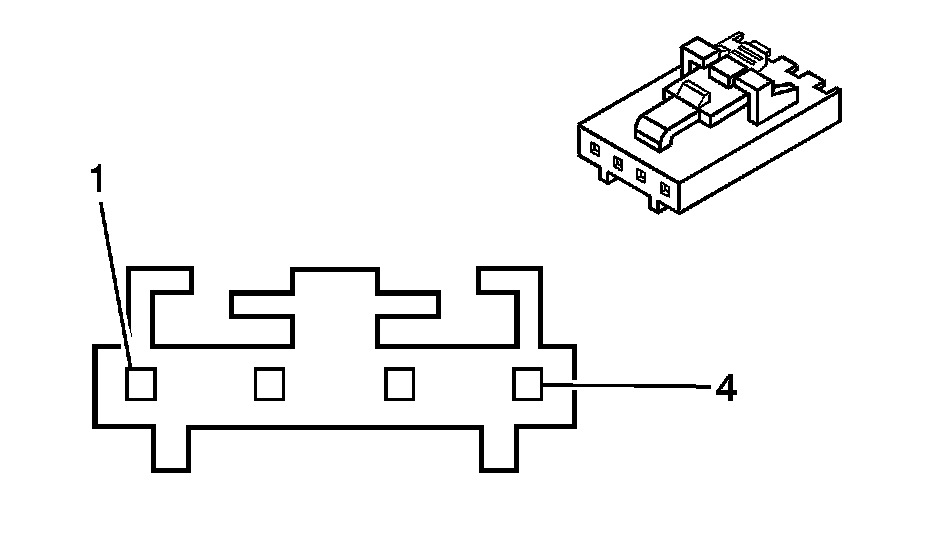

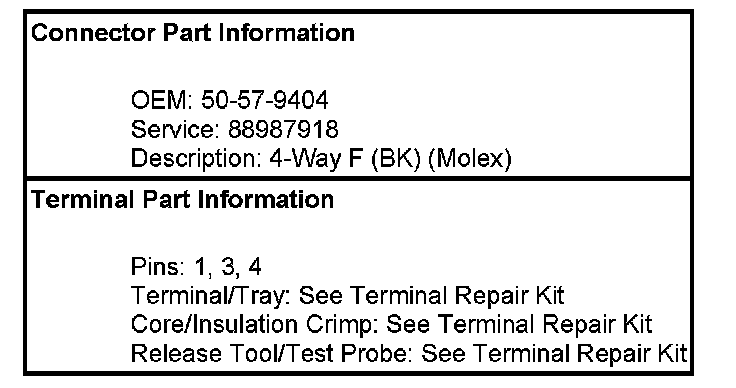

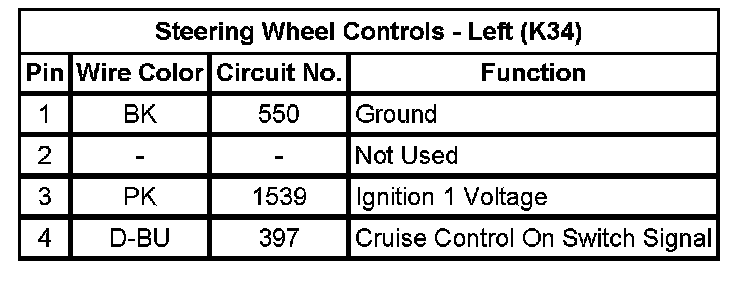

Steering Wheel Controls - Left (K34)

Steering Wheel Controls - Right (UK3):

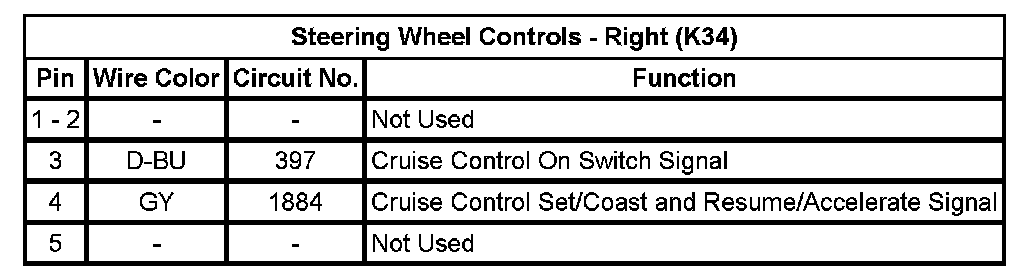

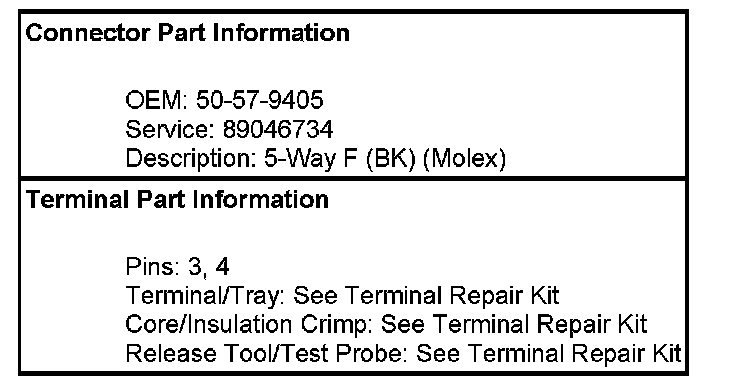

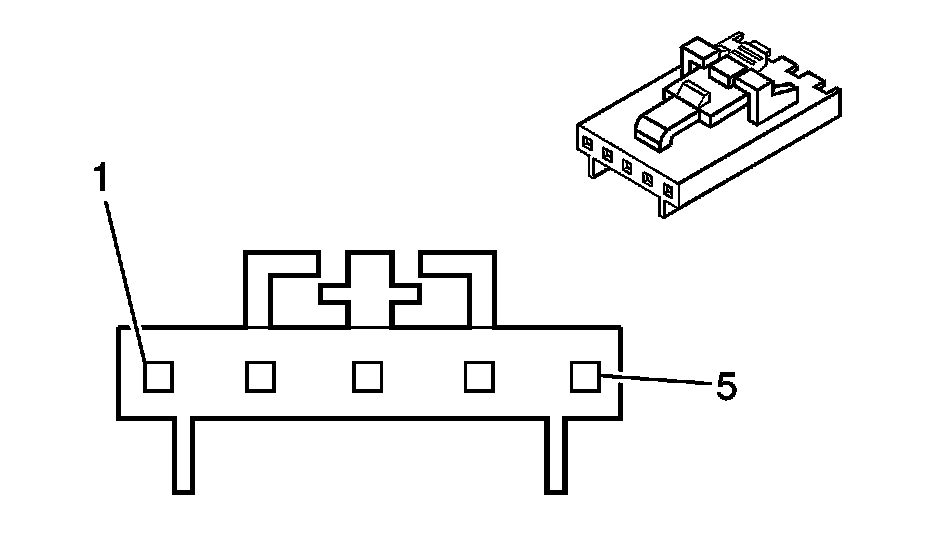

Steering Wheel Controls - Right (K34)

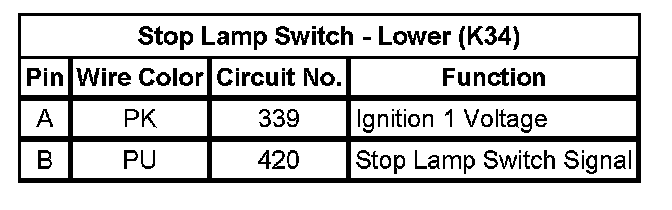

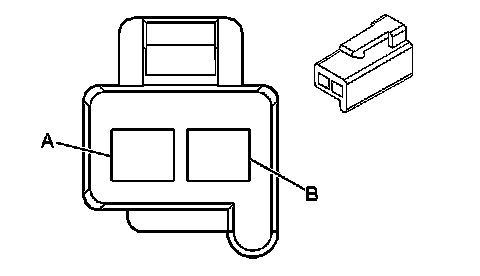

Stop Lamp Switch - Lower (K34)
