Amplifier, Sound System



Entertainment/Communication Connector End Views

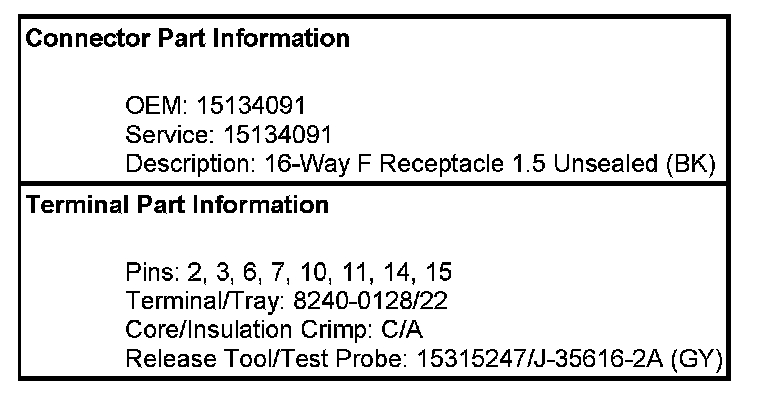

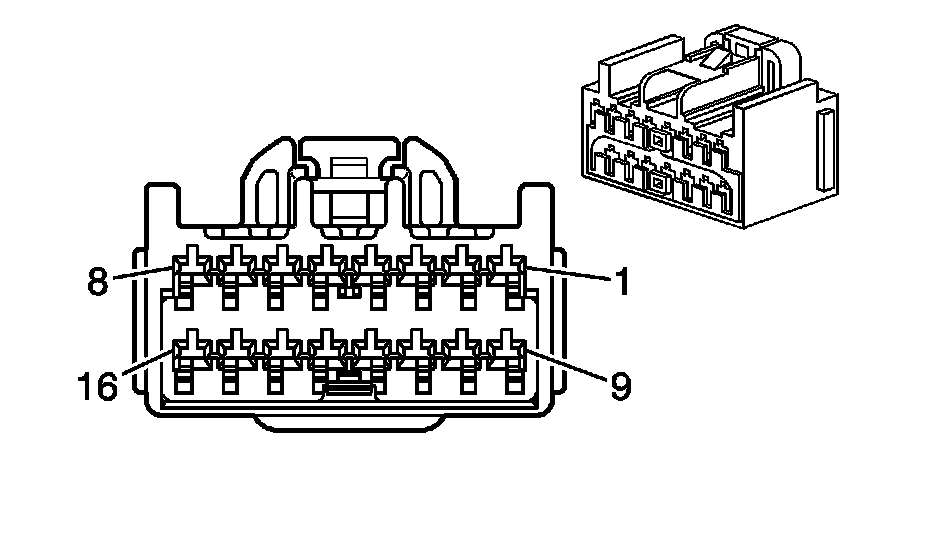

Audio Amplifier C1 (UZ6)

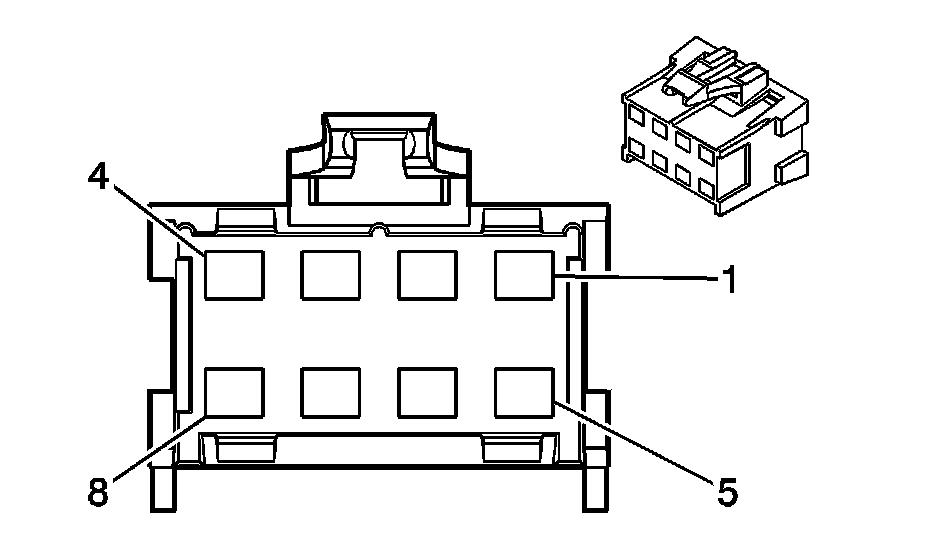

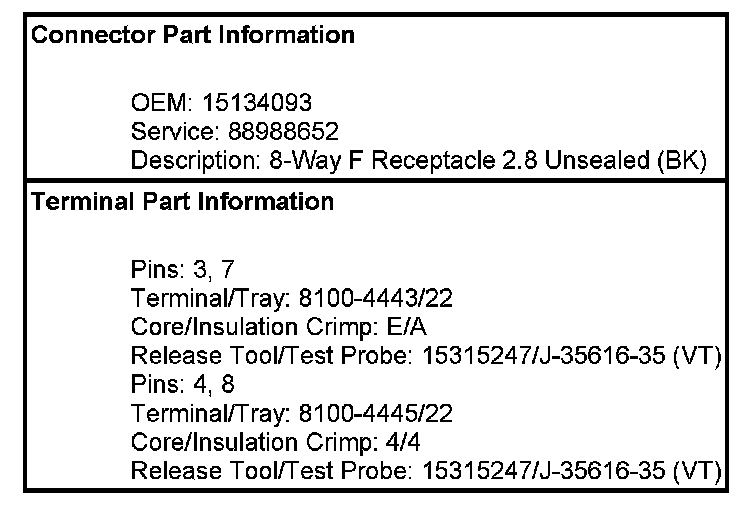

Audio Amplifier C2 (UZ6)

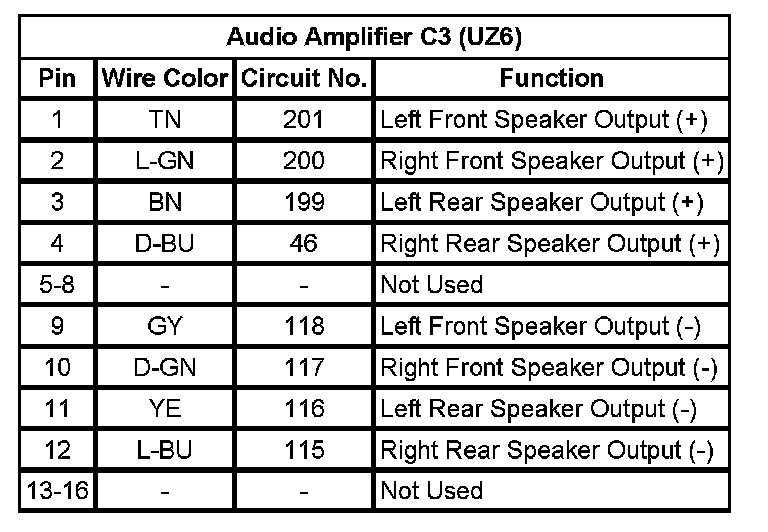

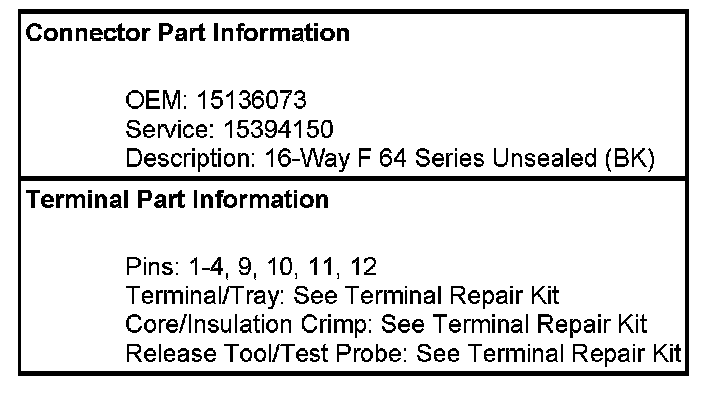

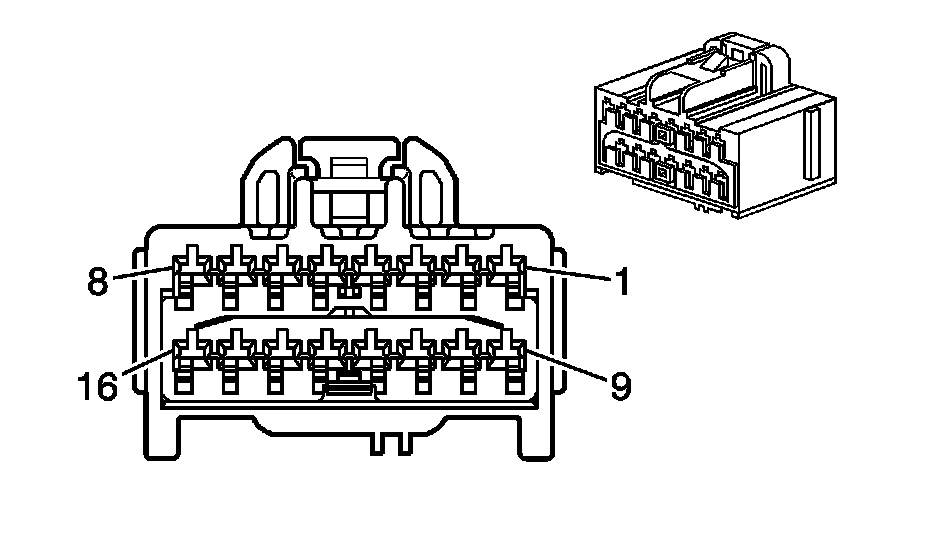

Audio Amplifier C3 (UZ6)
