Brake Fluid Level Sensor/Switch

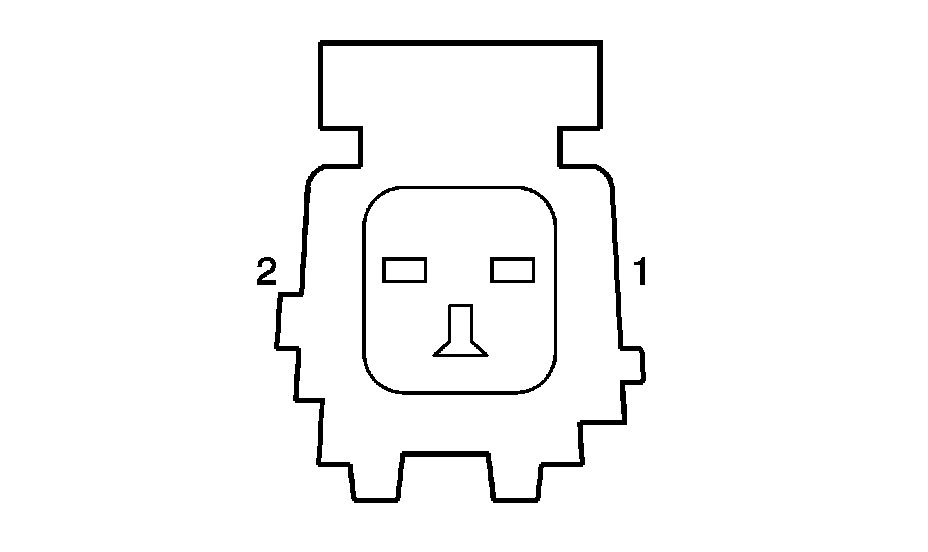

Hydraulic Brake Connector End Views

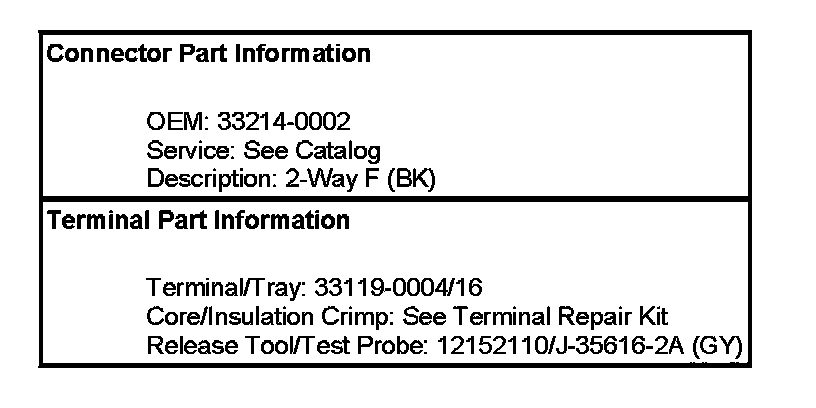

Brake Fluid Level Switch

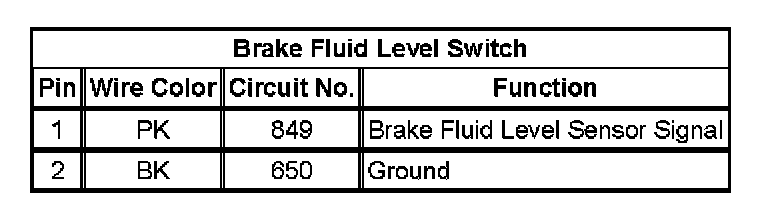

Brake Fluid Level Switch:
