Control Assembly, HVAC



HVAC Connector End Views

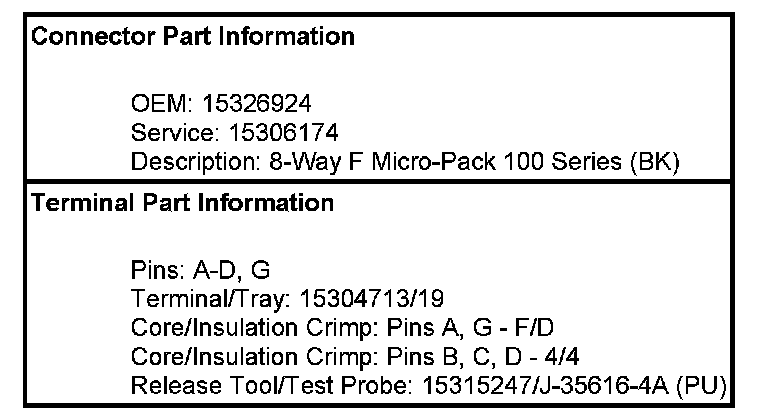

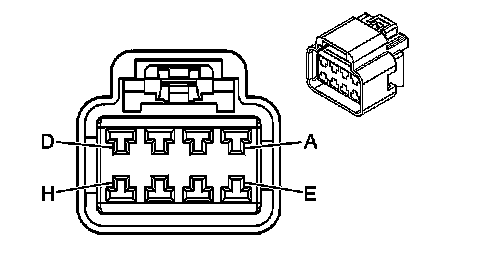

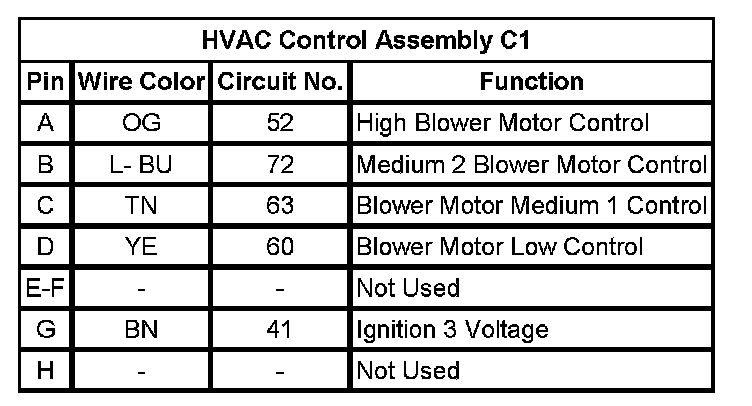

HVAC Control Assembly C1

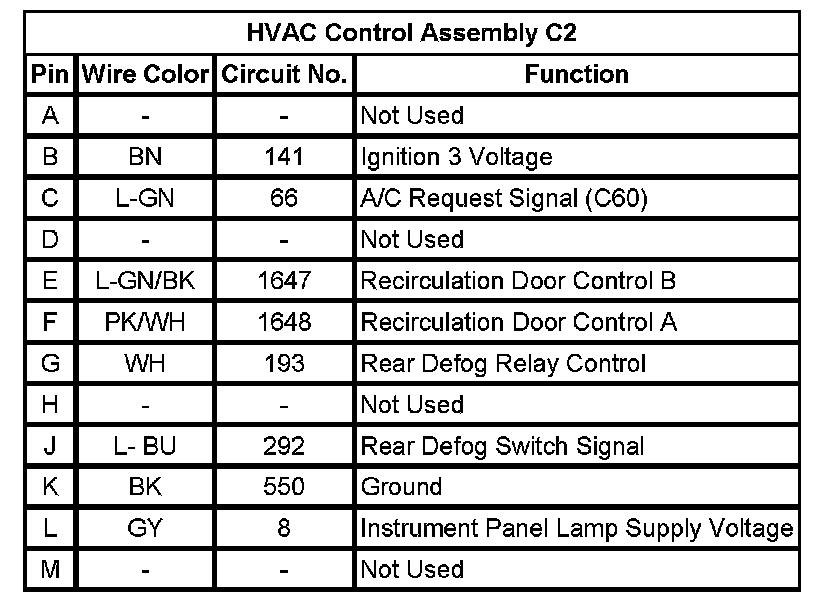

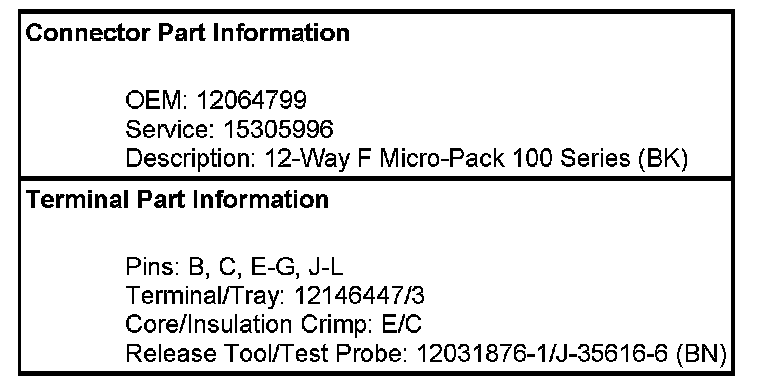

HVAC Control Assembly C2
