Front Door Latch

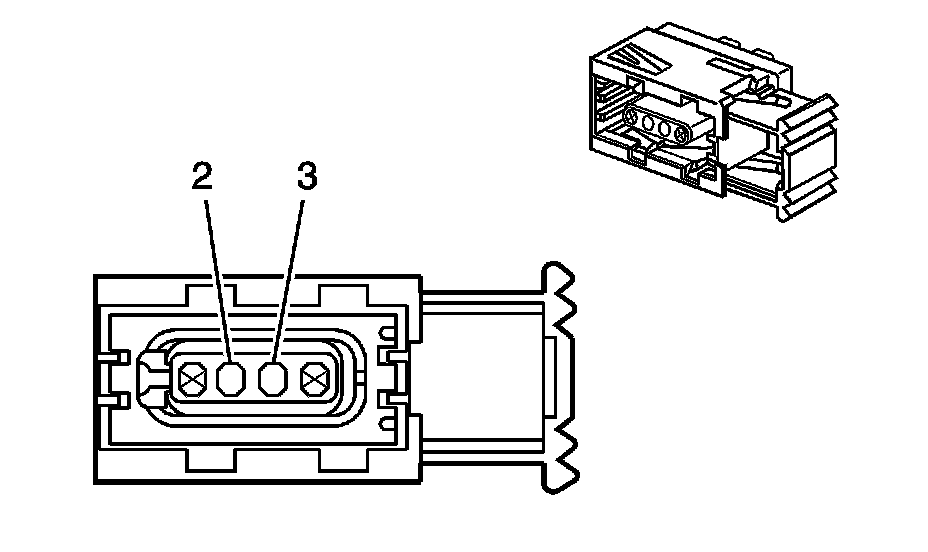

Vehicle Access Connector End Views

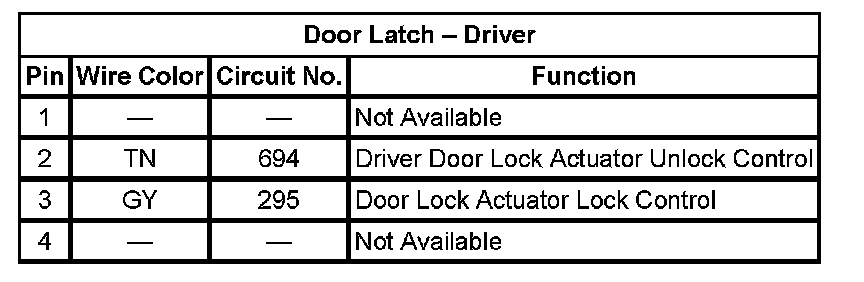

Door Latch - Driver














Door Latch - Front Passenger

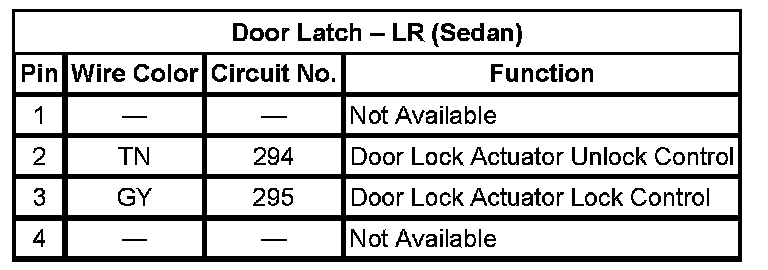

Door Latch - LR (Sedan)

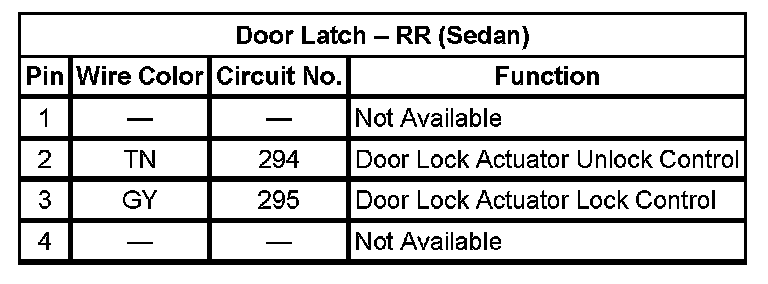

Door Latch - RR (Sedan)
