Power Door Lock Switch

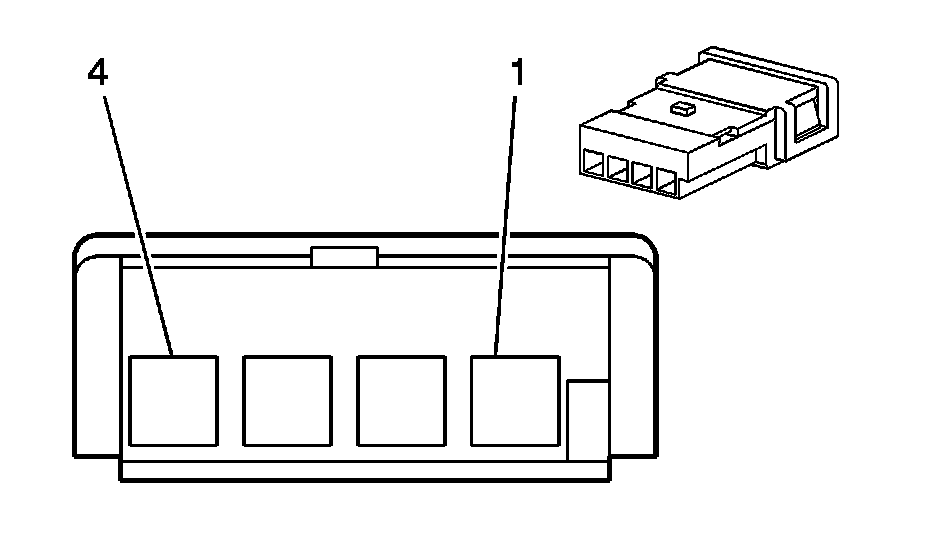

Vehicle Access Connector End Views

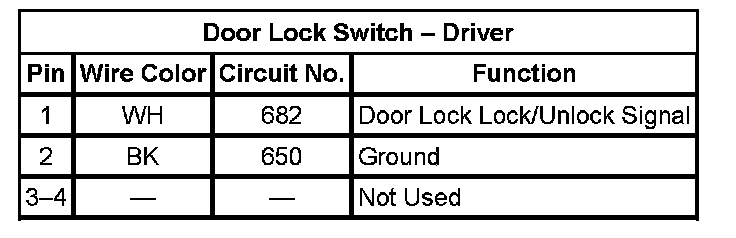

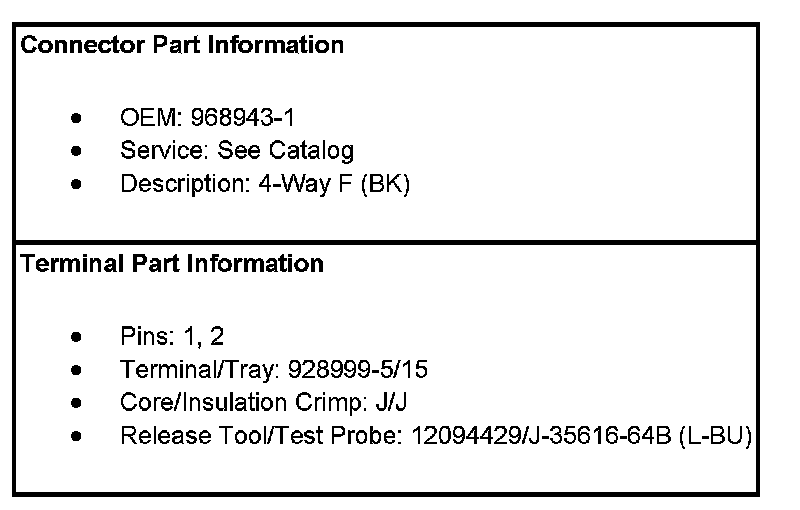

Door Lock Switch - Driver

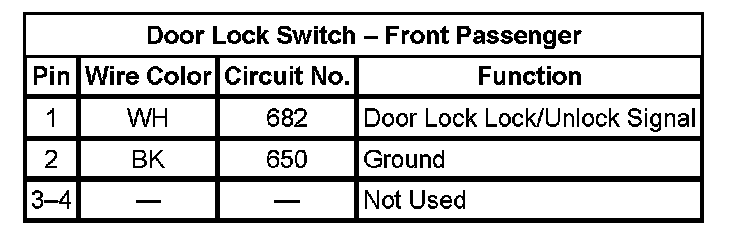

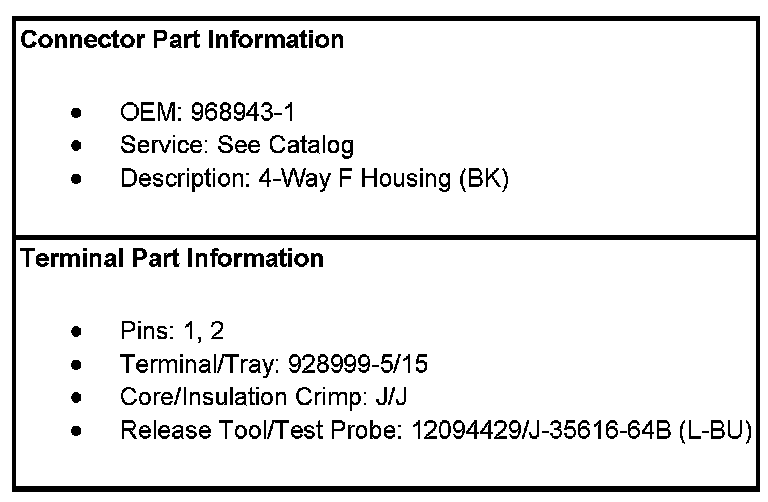

Door Lock Switch - Front Passenger
