Power Window Motor

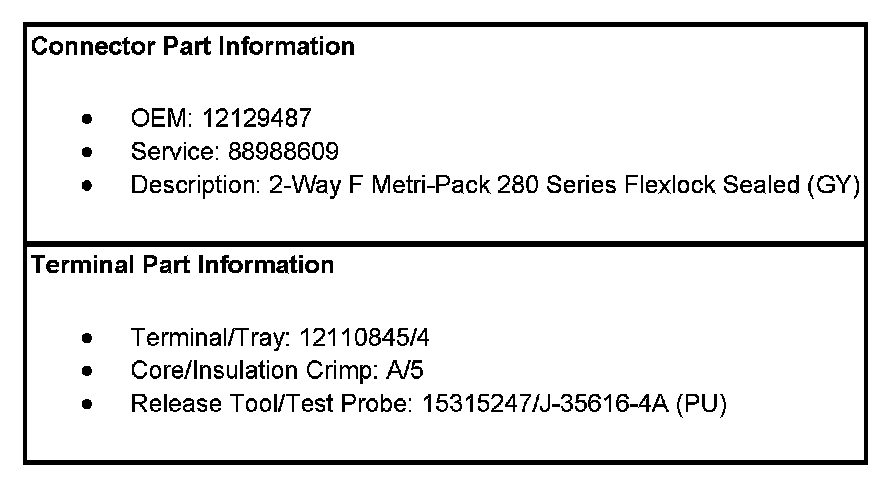

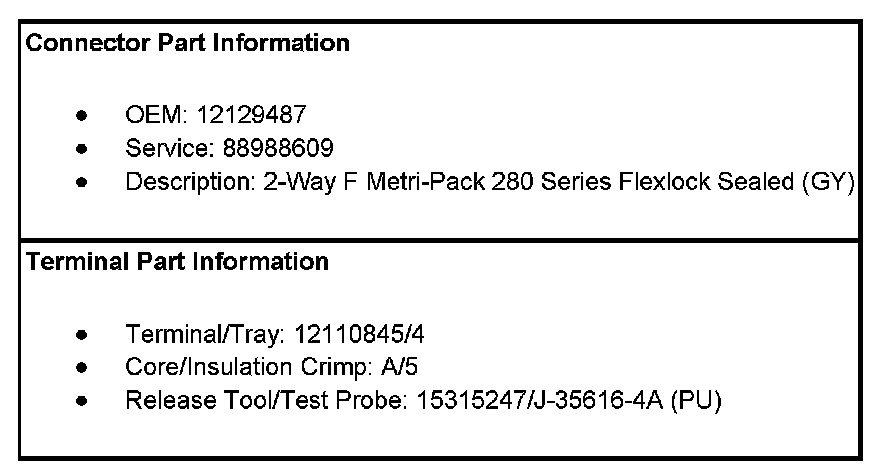

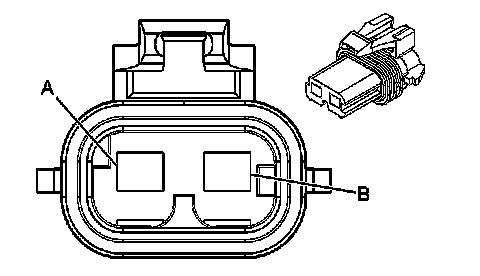

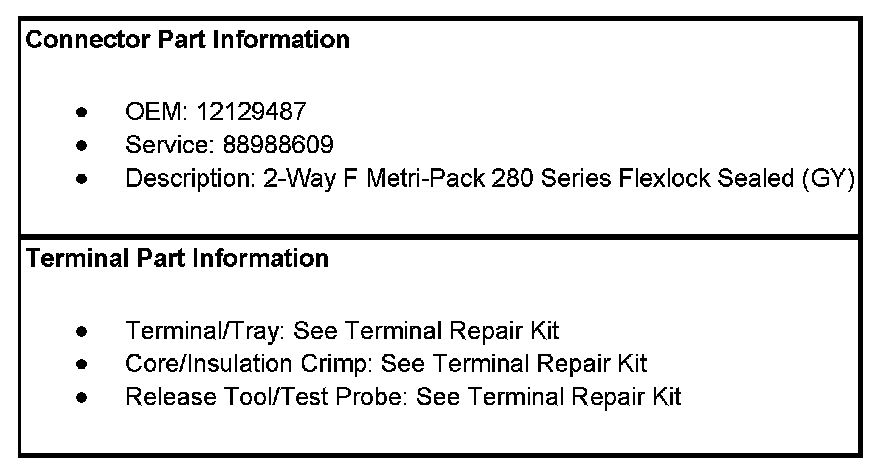

Window Systems Connector End Views

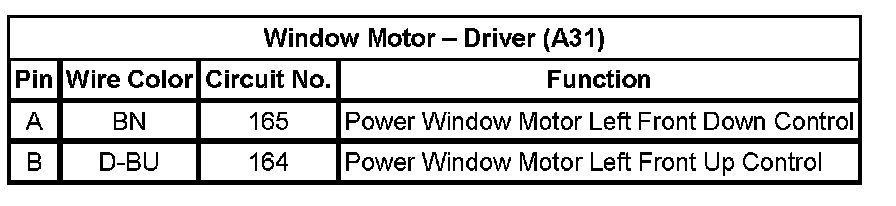

Window Motor - Driver (With RPO Code A31)

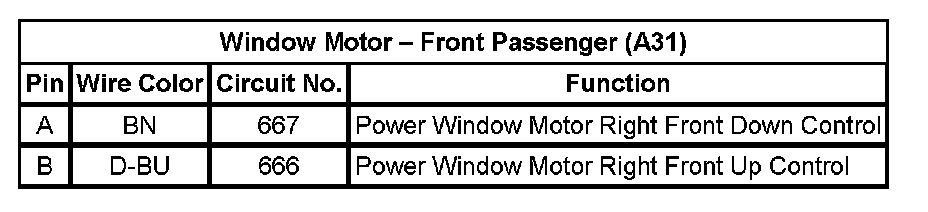

Window Motor - Front Passenger (With RPO Code A31)

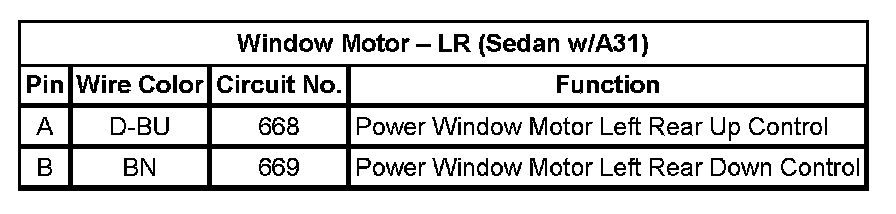

Window Motor - LR (Sedan With RPO Code A31)














Window Motor - RR (Sedan With RPO Code A31)
