Traction Control Switch



Traction Control Switch (JM4/JL9 w/NW7)

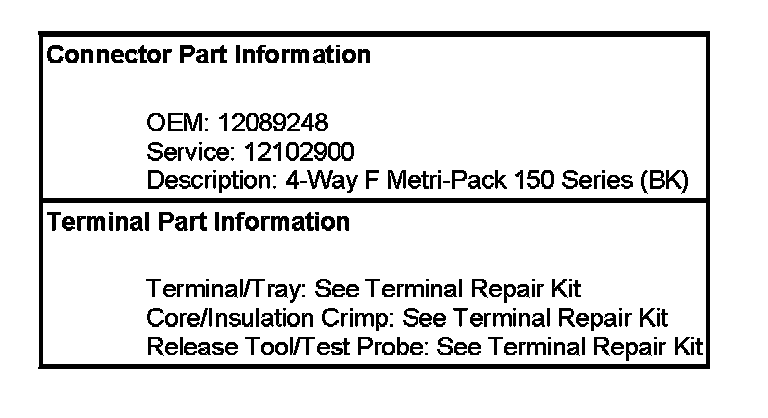

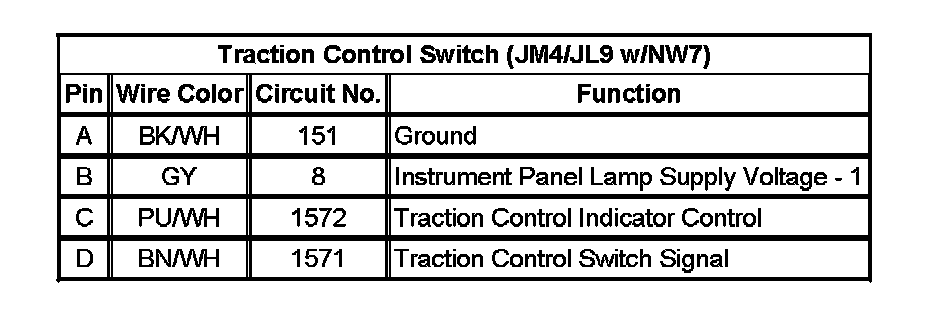

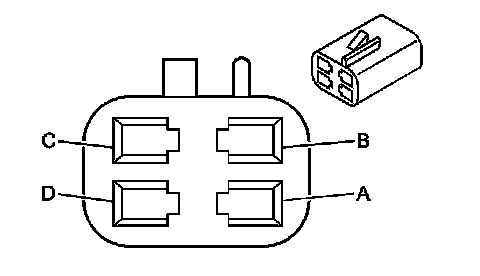

Traction Control Switch (JM4/JL9 w/NW7):
