Automatic Transmission Related Connector End Views



Automatic Transmission Related Connector End Views

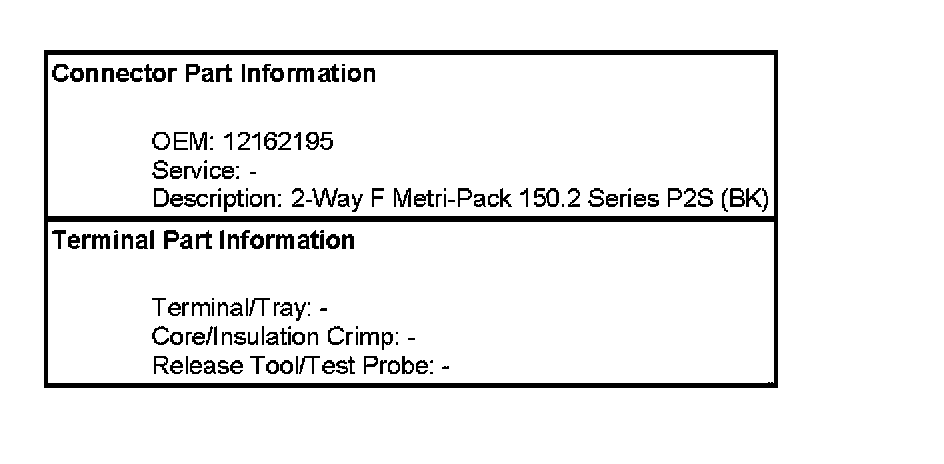

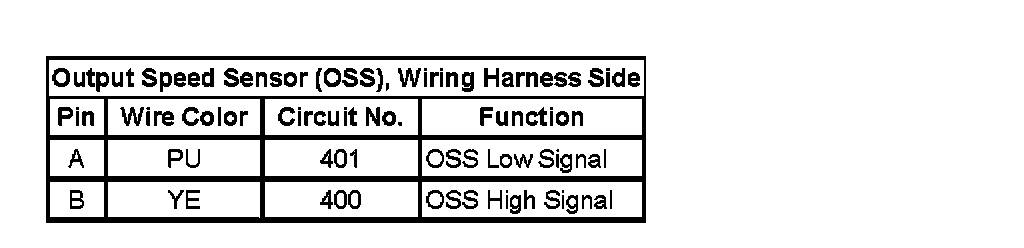

Output Speed Sensor (OSS), Wiring Harness Side







Output Speed Sensor (OSS), Wiring Harness Side:

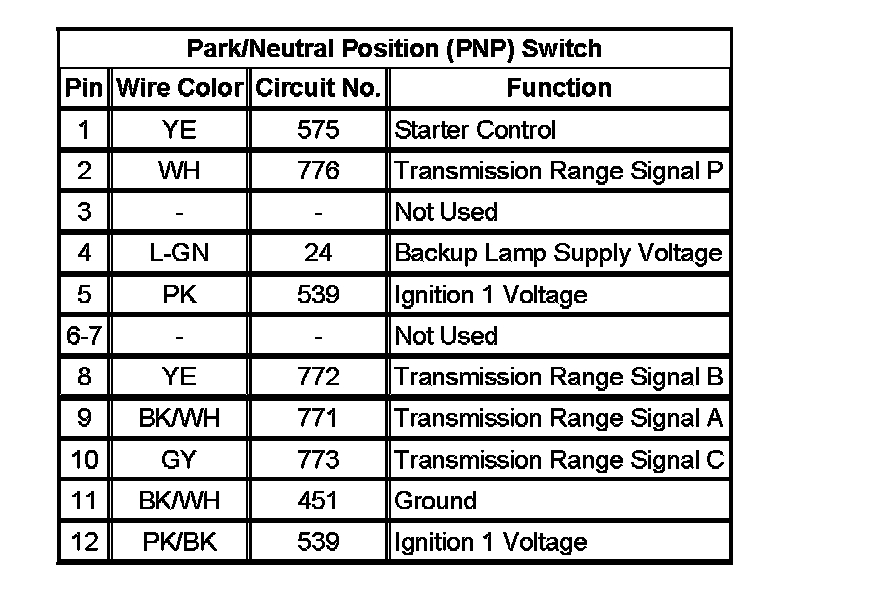

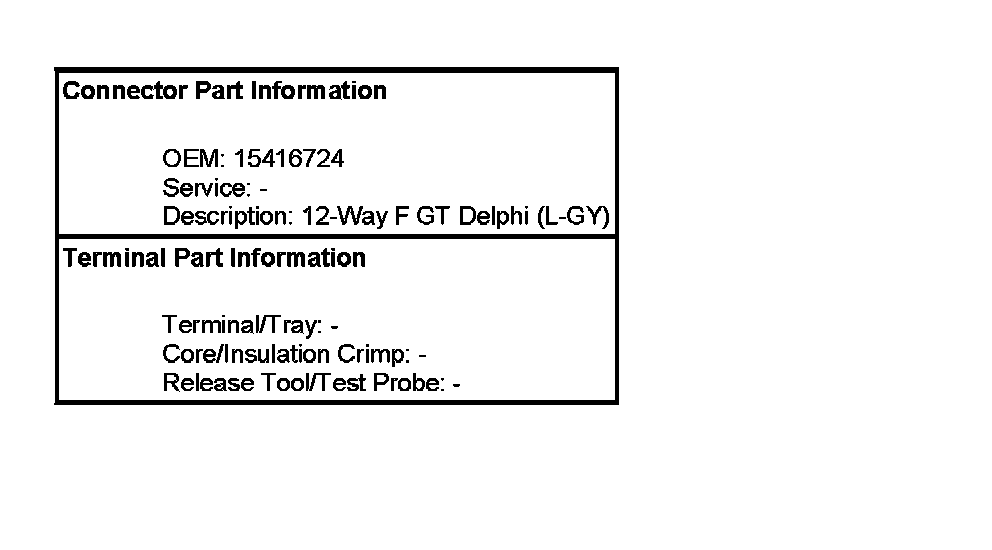

Park/Neutral Position (PNP) Switch







Park/Neutral Position (PNP) Switch:





Transmission Control Module (TCM), Engine Side







Transmission Control Module (TCM), Engine Side:
