Transmission Control Systems

Automatic Transmission Controls Schematics

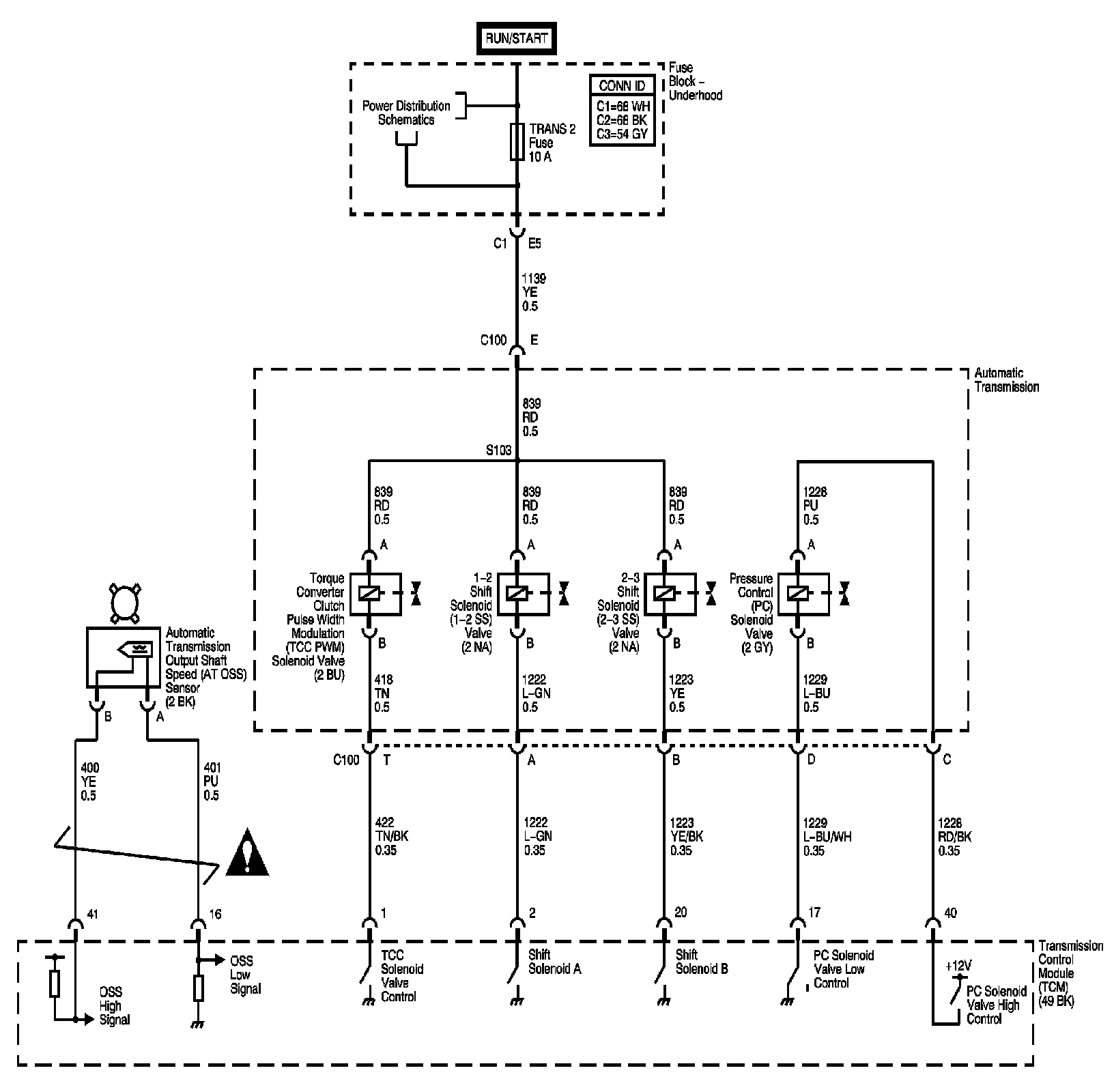

Automatic Transmission Controls Schematics 1:

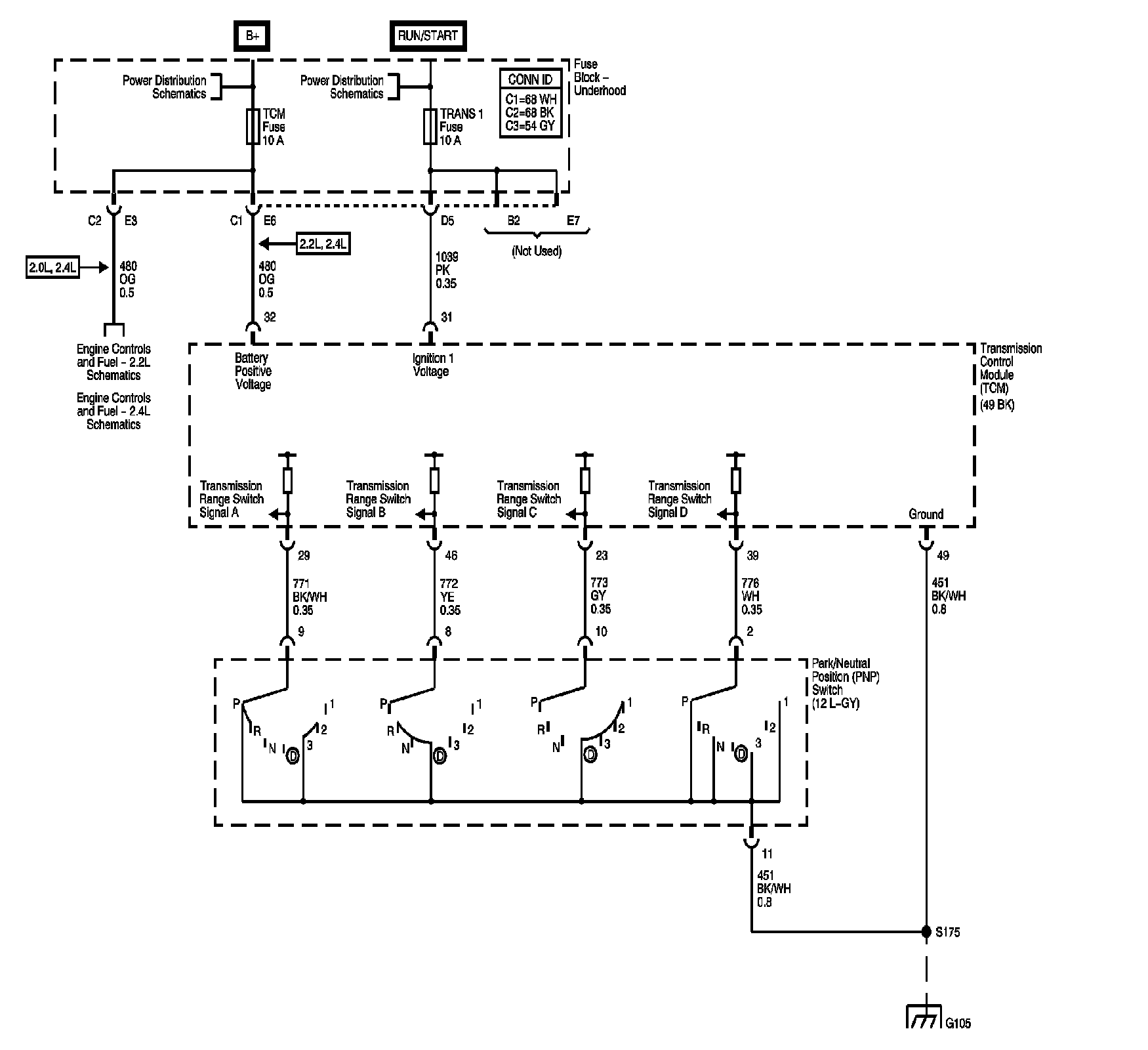

Automatic Transmission Controls Schematics 2:

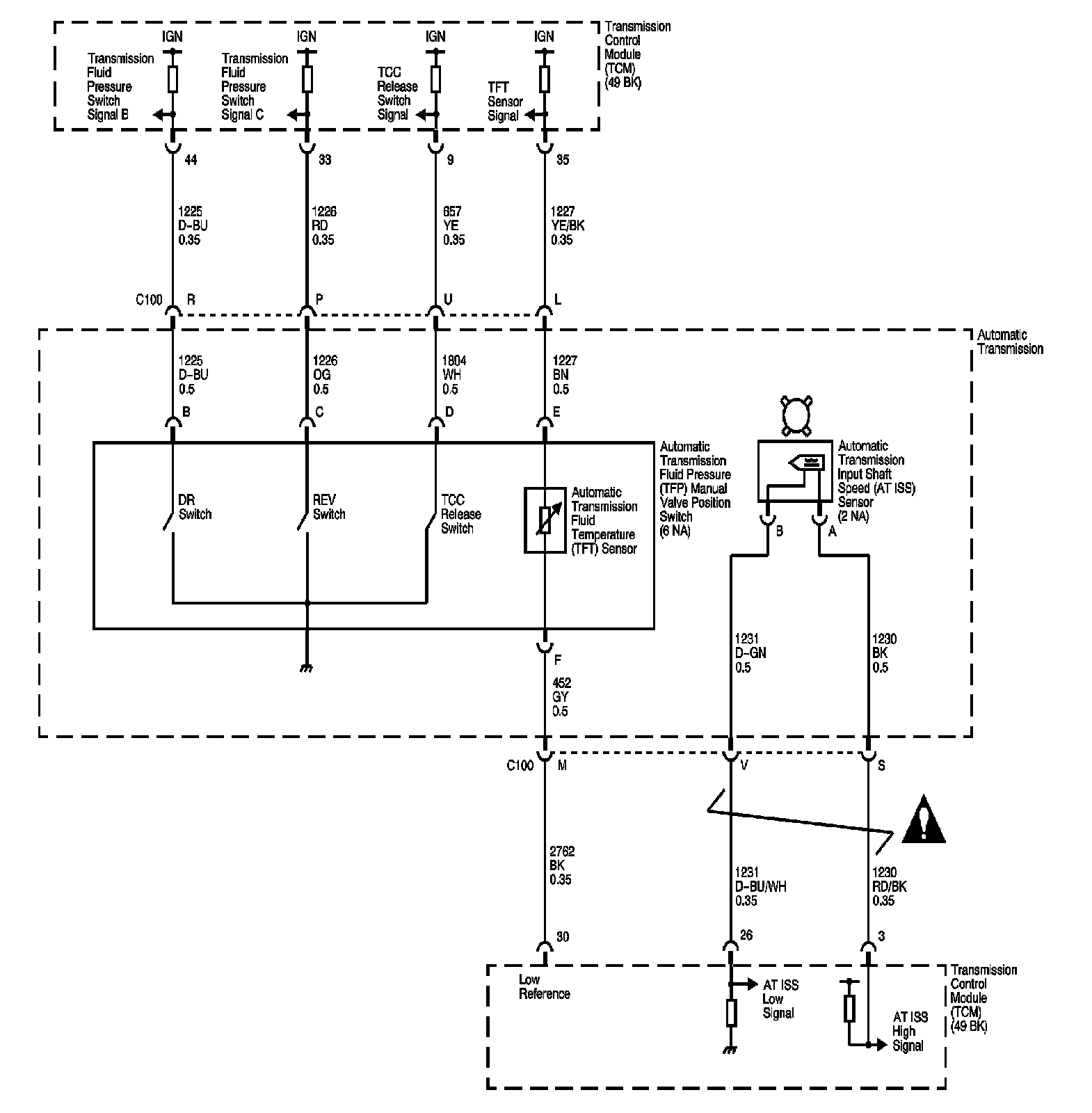

Automatic Transmission Controls Schematics 3:

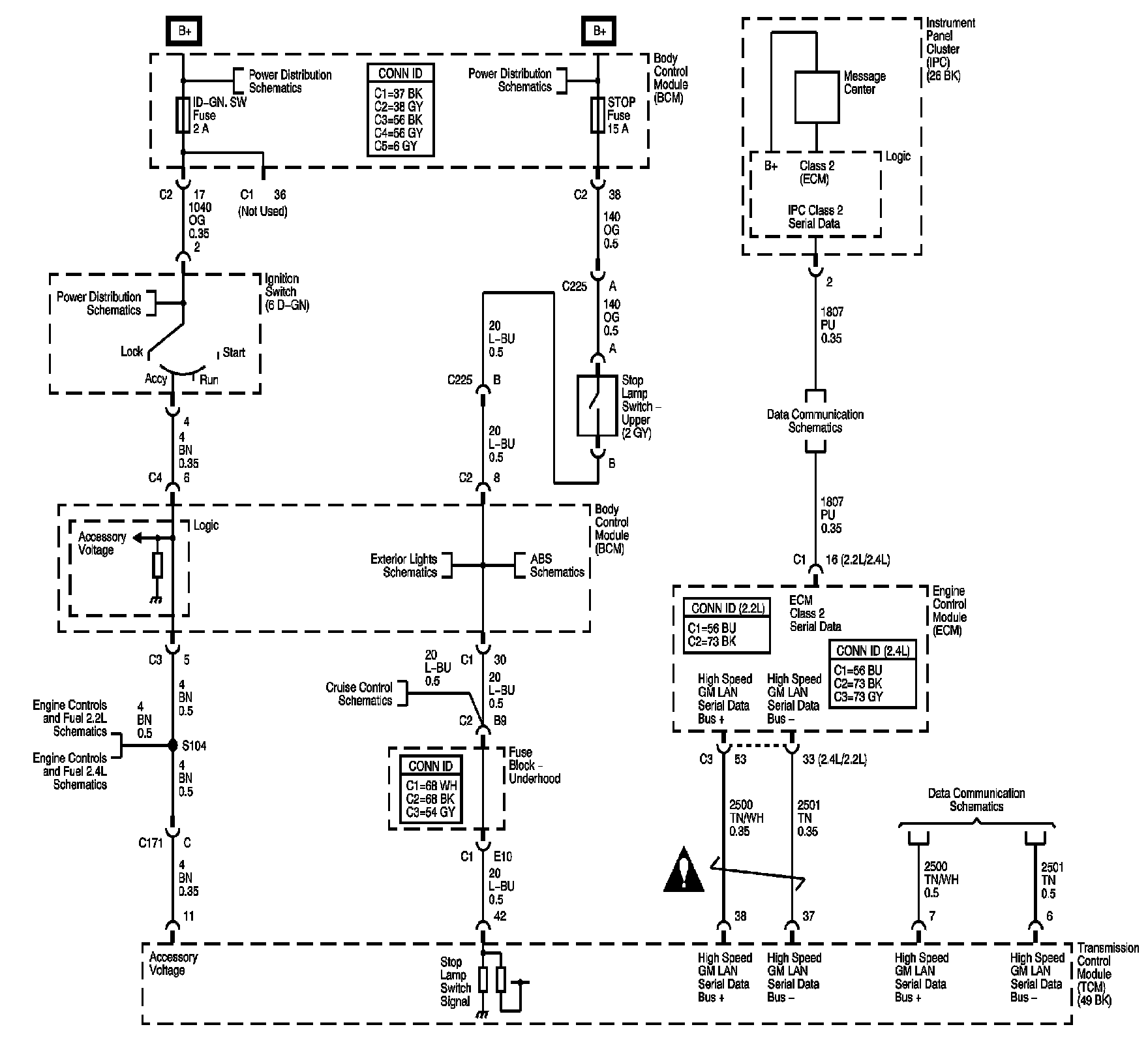

Automatic Transmission Controls Schematics 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
