Engine Support Fixture

Engine Support Fixture

Tools Required

* SA9105E Engine Support Fixture (3 Bar)
* J 43405 Engine Support Fixture Adaptor

Installation Procedure

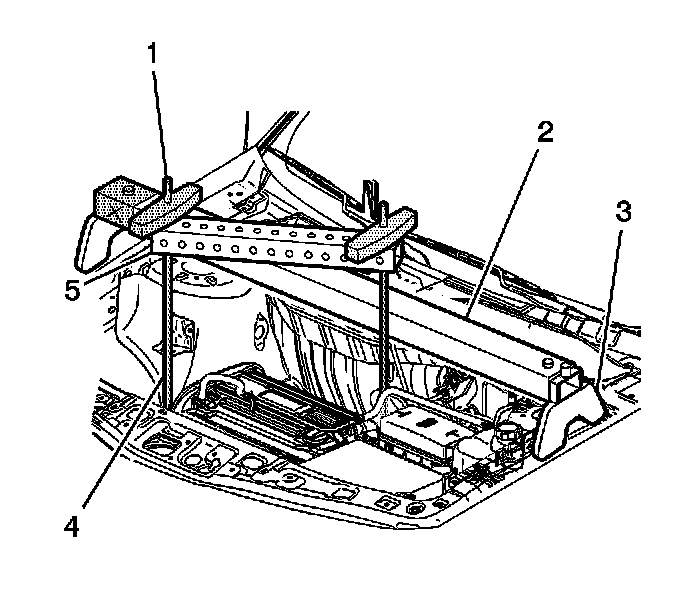

1. Place the engine support fixture long bar (2), from the SA9105E across the engine compartment.
2. Install the Engine support fixture legs (3) from the J 43405 on the engine support fixture long bar and center above the engine.
3. Install the engine support fixture hooks (4) and engine support fixture handle to the engine support cross bar.
4. Place the engine support cross bar over the engine support long bar and connect the hooks to the engine lift brackets.
