Heating and Air Conditioning: Locations

HVAC Component Views

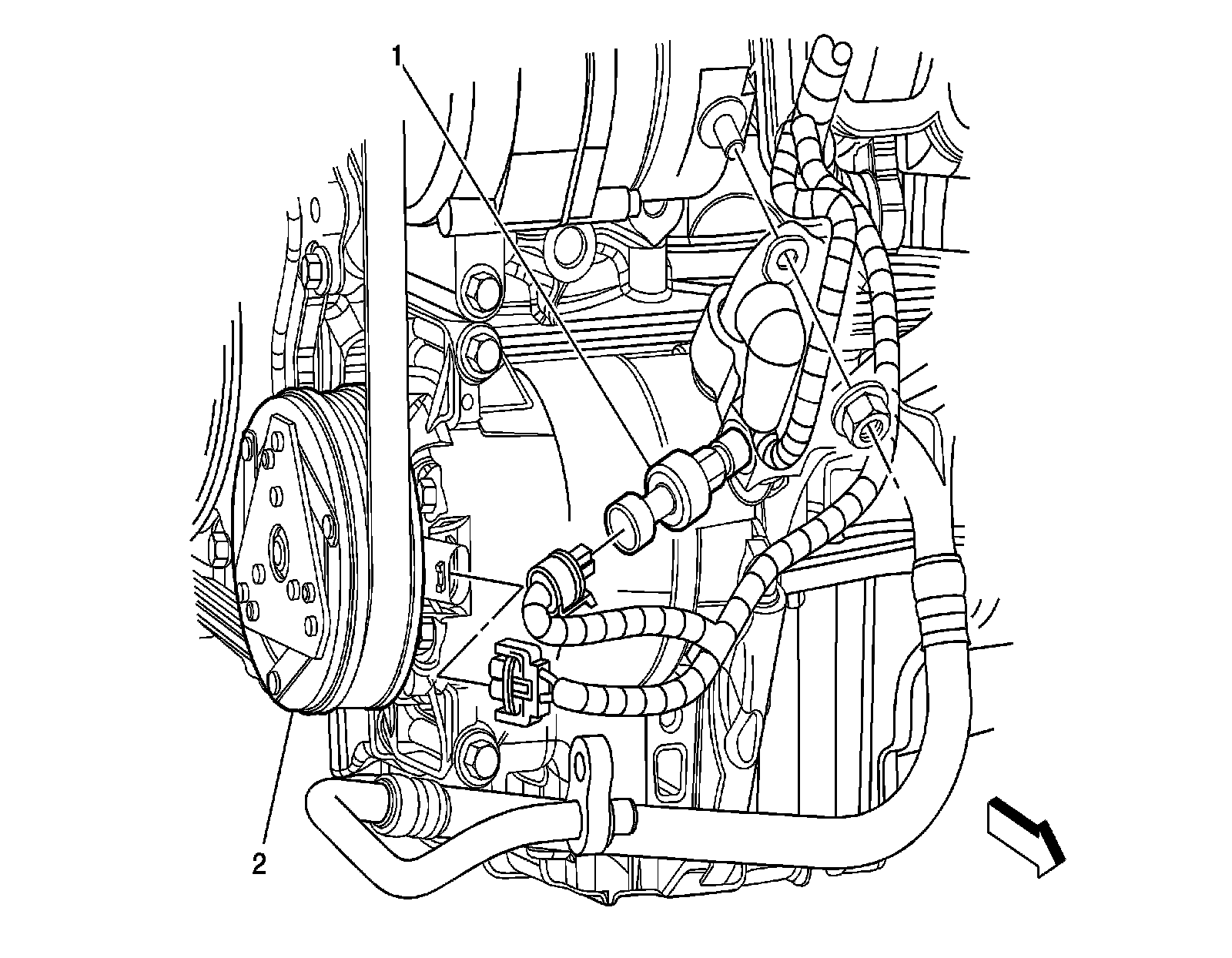

Lower Right Side of the Engine (C60)




1 - A/C Refrigerant Pressure Sensor
2 - A/C Compressor Clutch

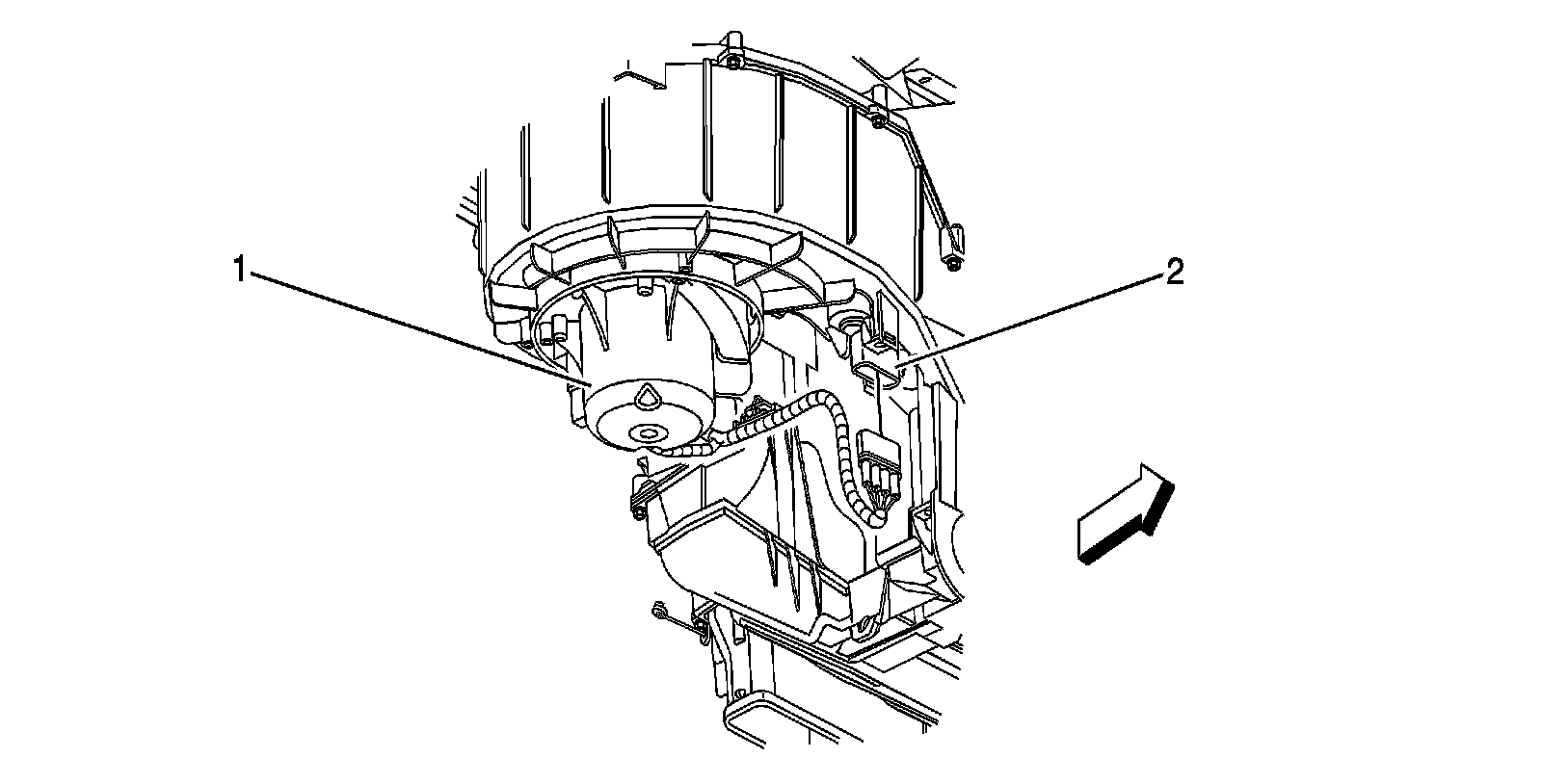

Lower RF of the Passenger Compartment




1 - Blower Motor
2 - Blower Motor Resistor Assembly

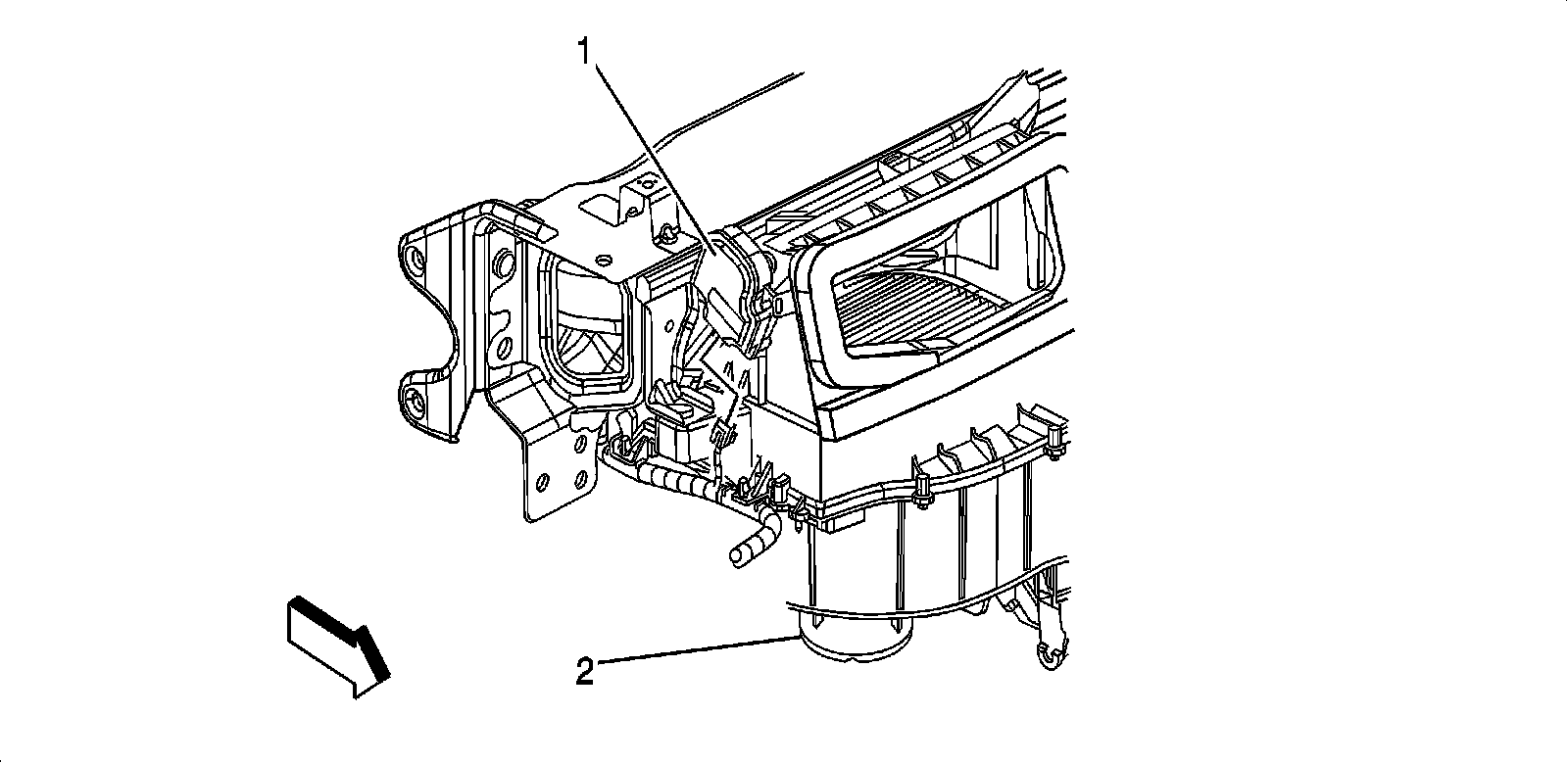

Behind the Left Side of the I/P




1 - Recirculation Actuator
2 - Blower Motor

Instrument Panel




1 - Turn Signal/Multifunction Switch
2 - Windshield Wiper/Washer Switch
3 - Hazard Switch
4 - Instrument Panel Cluster (IPC)
5 - Traction Control Switch (NW7)
6 - Radio
7 - A/T Shifter (MN5)
8 - HVAC Control Assembly
9 - Steering Wheel Controls - Right (K34)
10 - Steering Wheel Controls - Left (K34)
11 - Rear Compartment Lid Release Switch
