Underhood Fuse Block
Electrical Center Identification Views

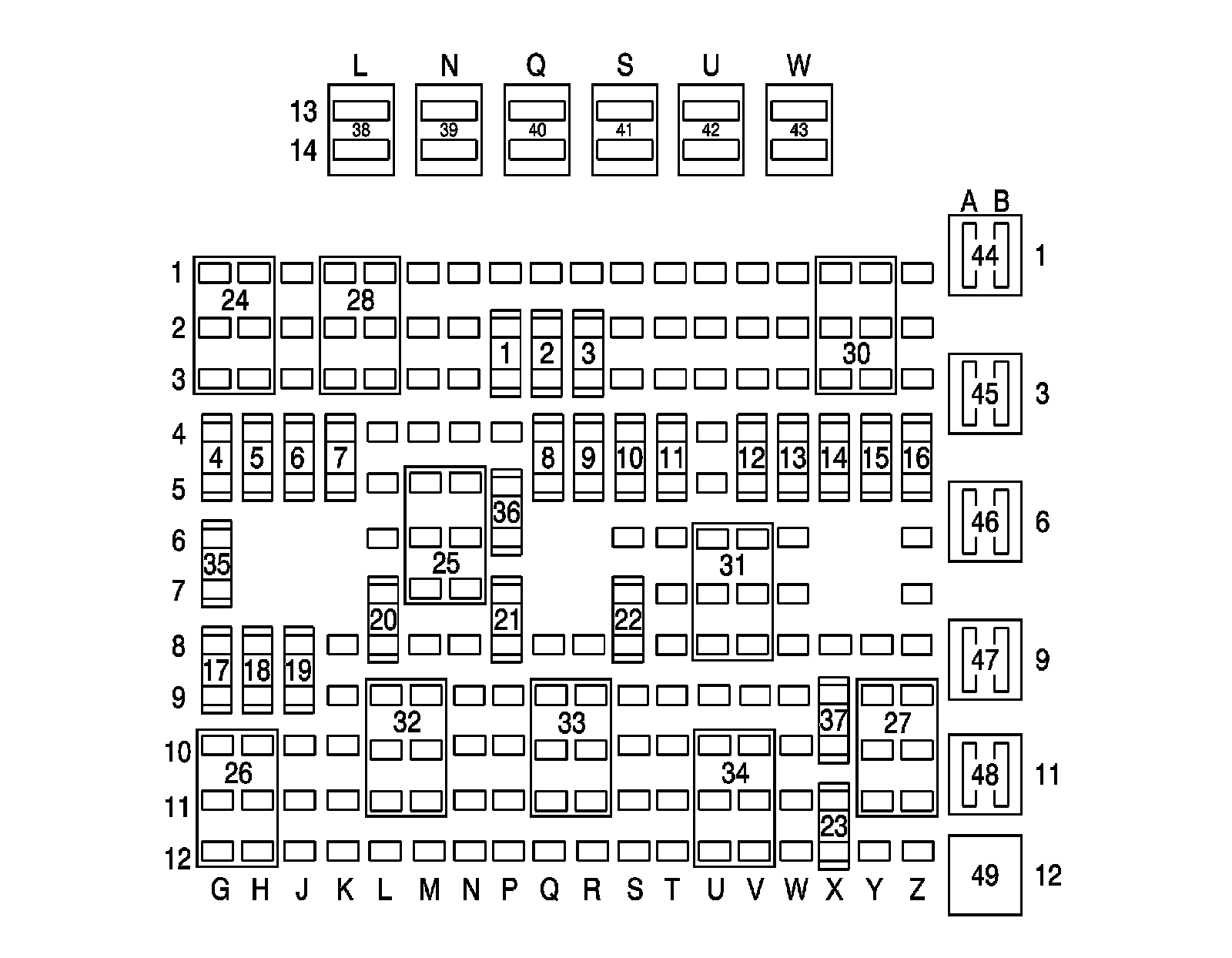

Fuse Block - Underhood Top View (2.2L, 2.4L)

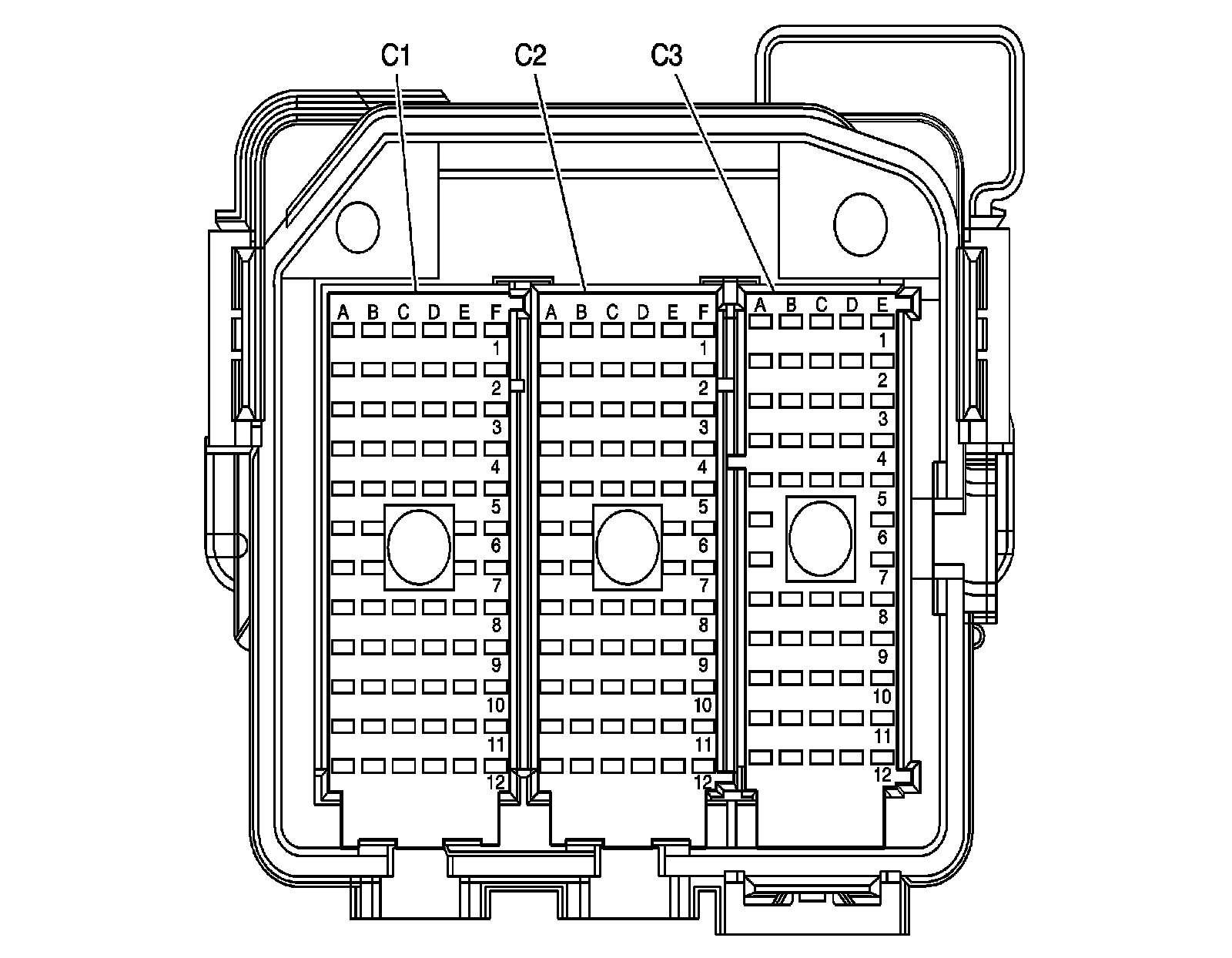

Fuse Block - Underhood Bottom View (2.2L, 2.4L)

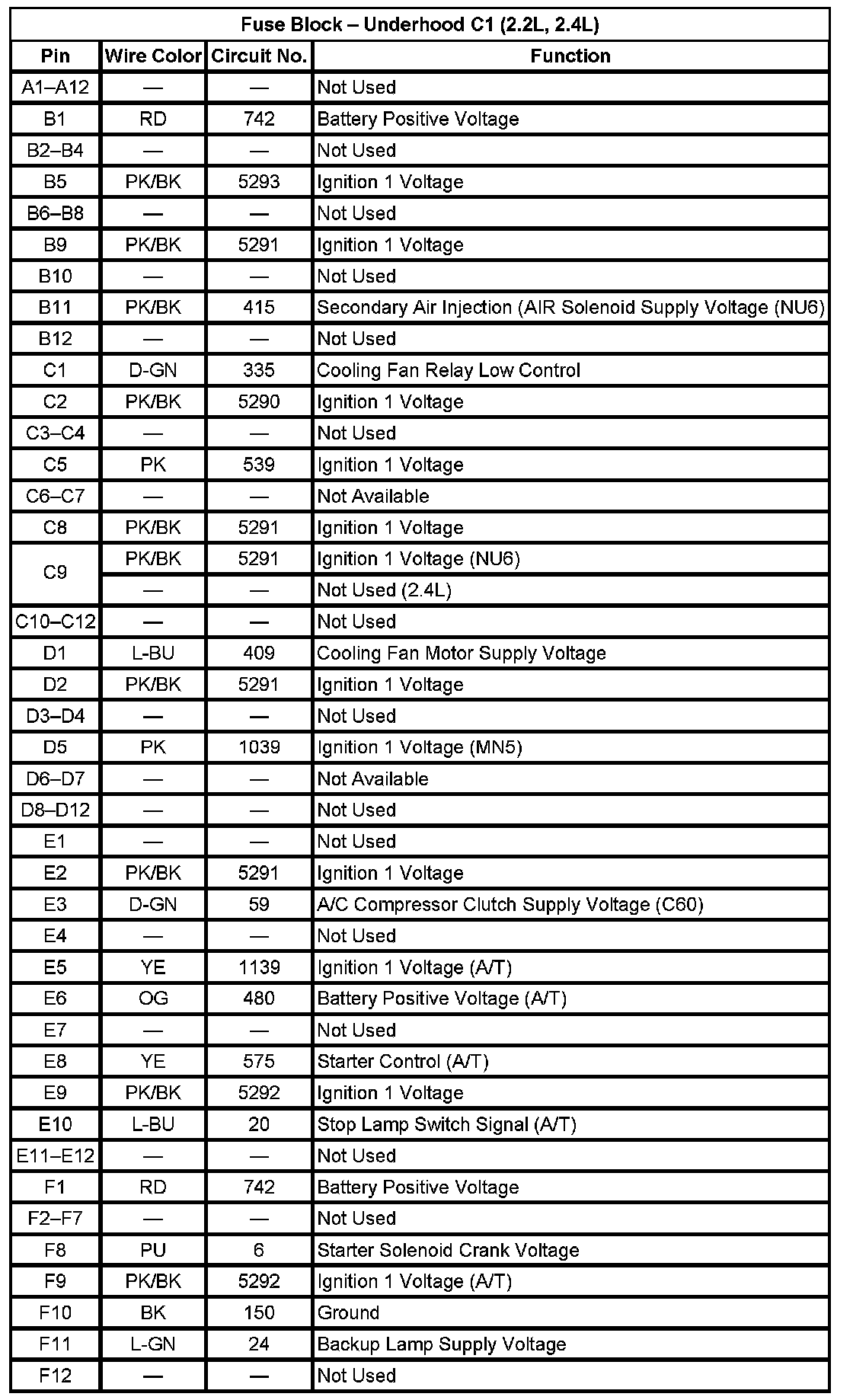

Fuse Block - Underhood C1 (2.2L, 2.4L)

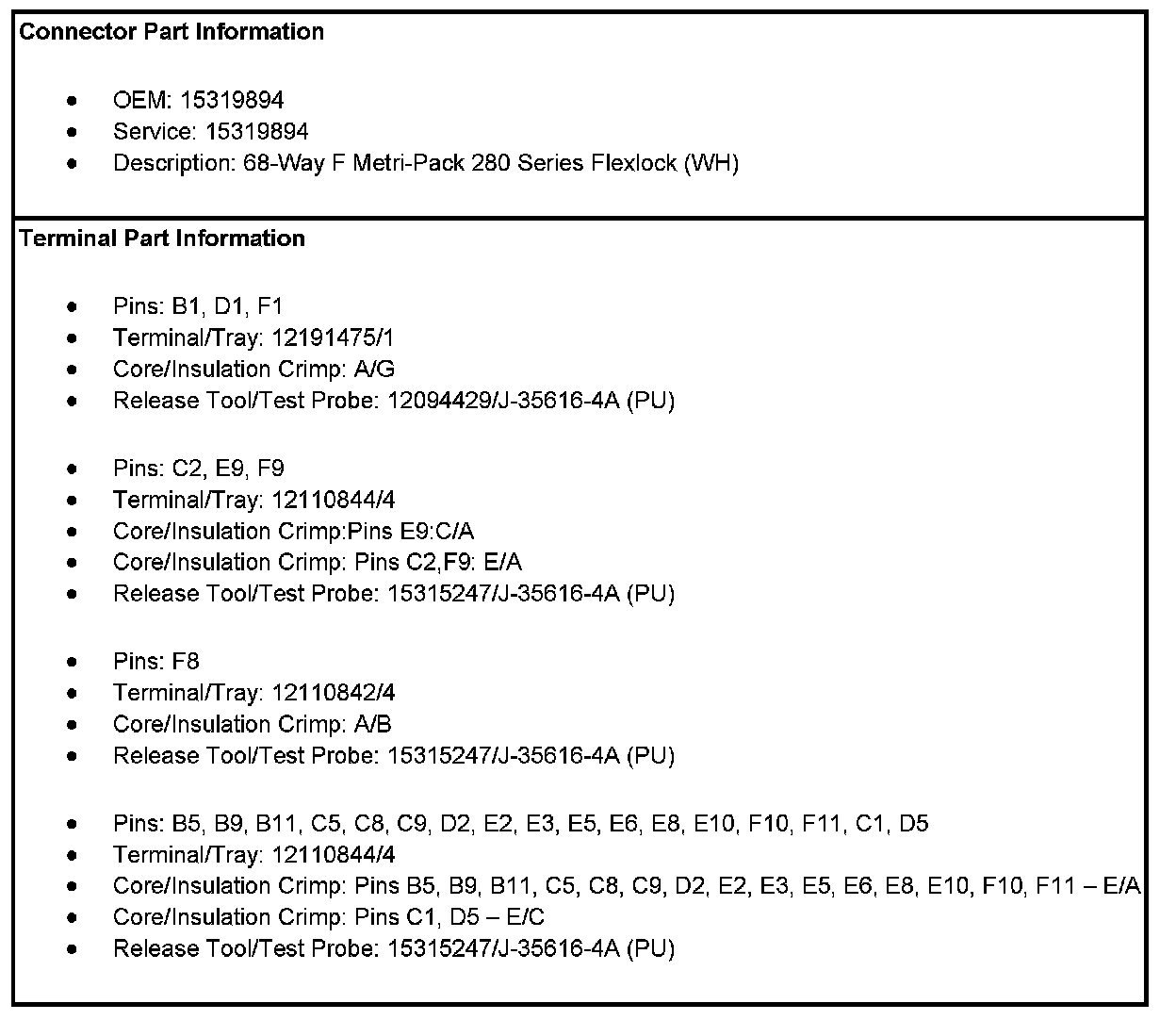

Fuse Block - Underhood C2 (2.2L, 2.4L)

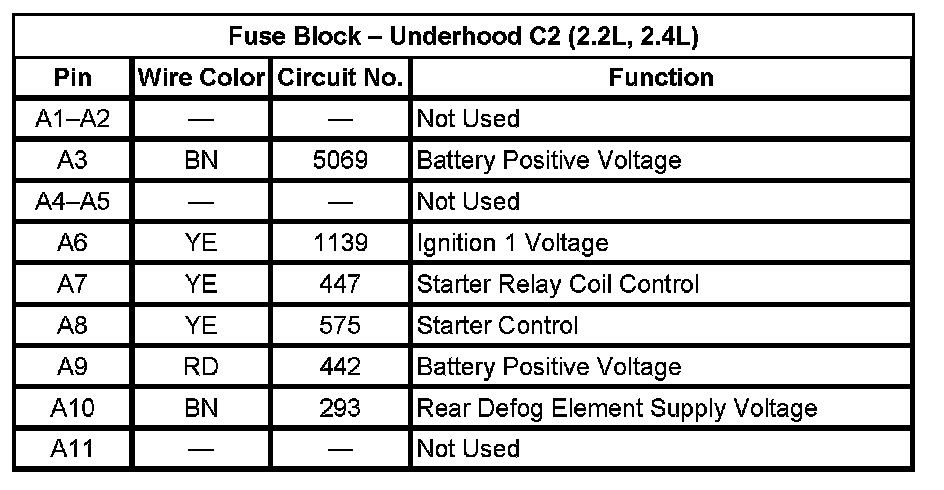

Fuse Block - Underhood C2 (Pin A1 To A11):

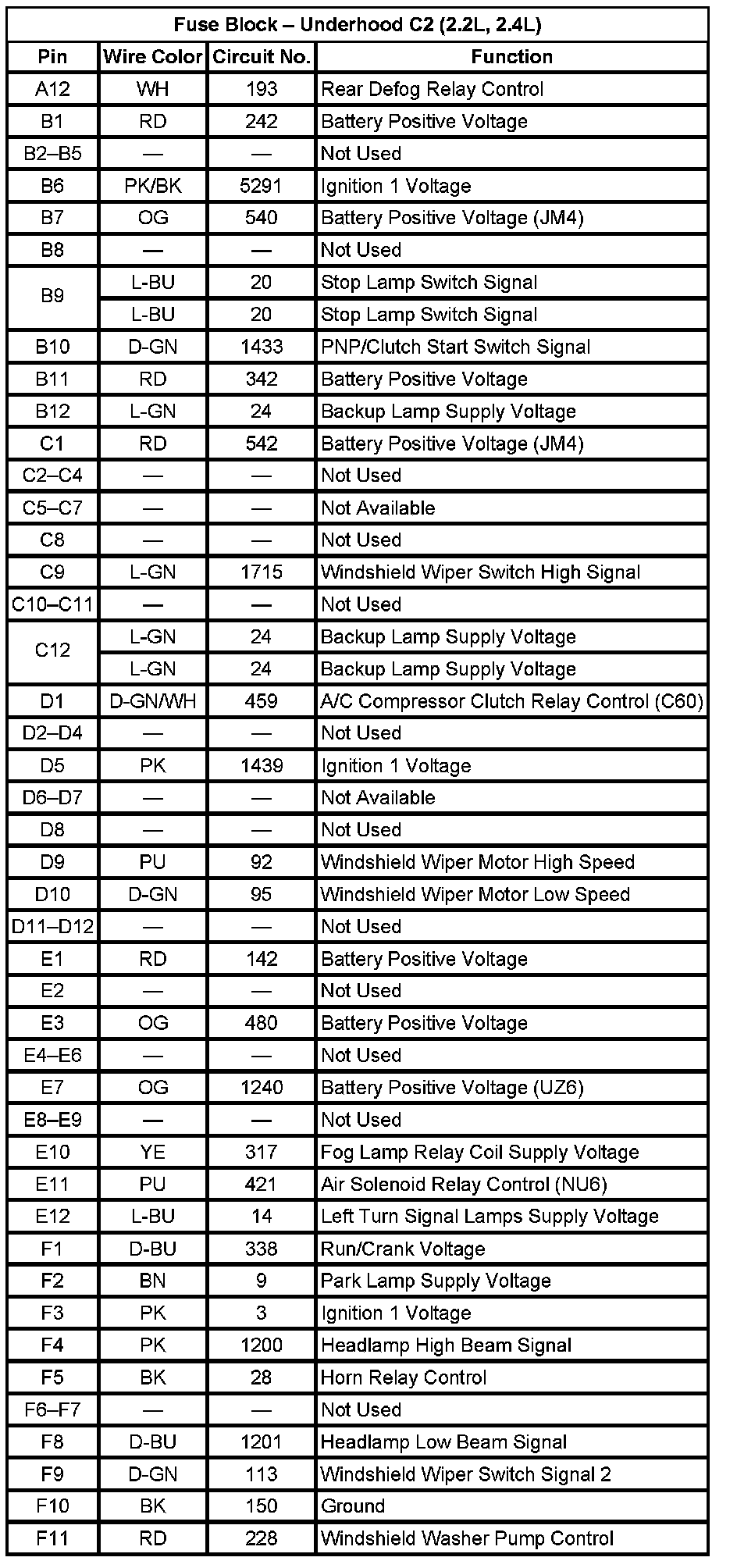

Fuse Block - Underhood C2 (Pin A12 To F11):

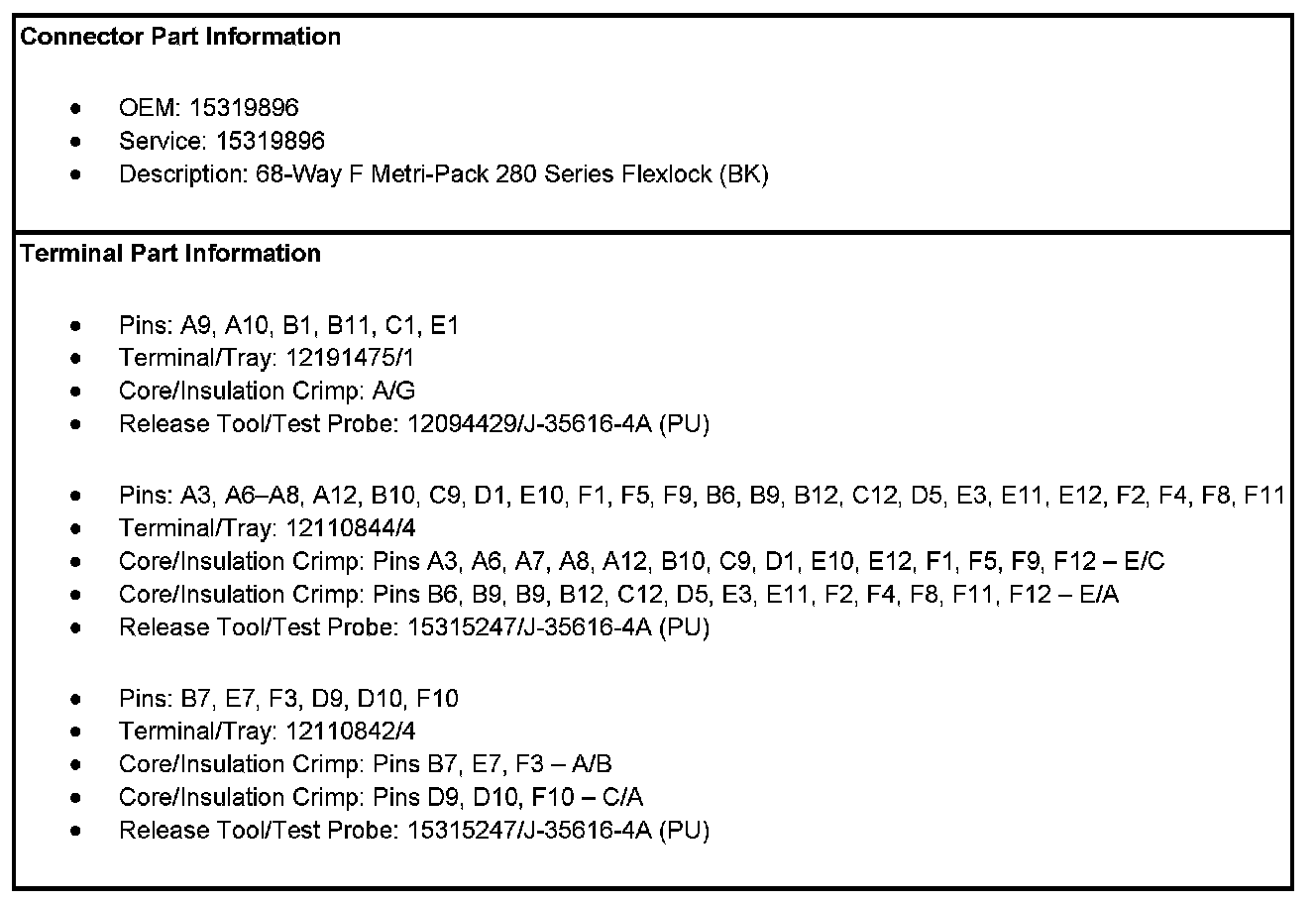

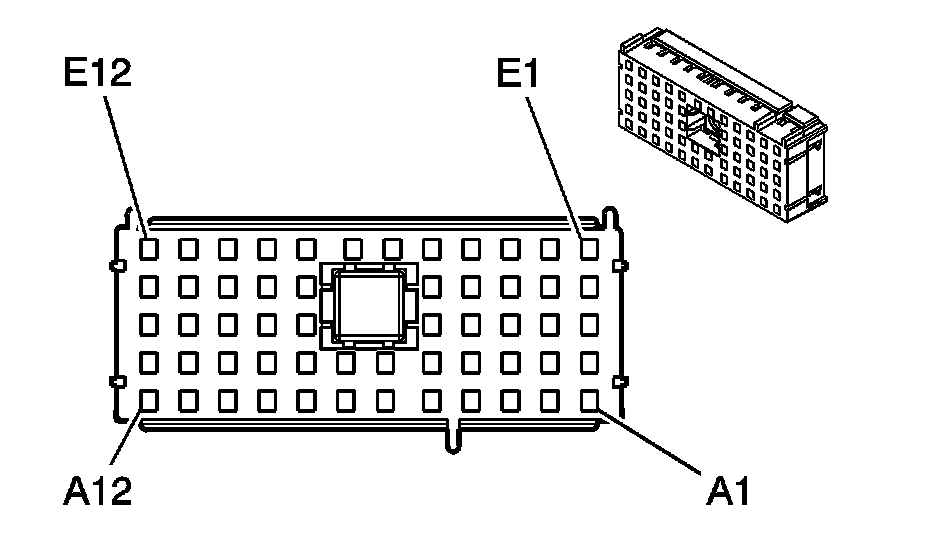

Fuse Block - Underhood C3 (2.2L, 2.4L)

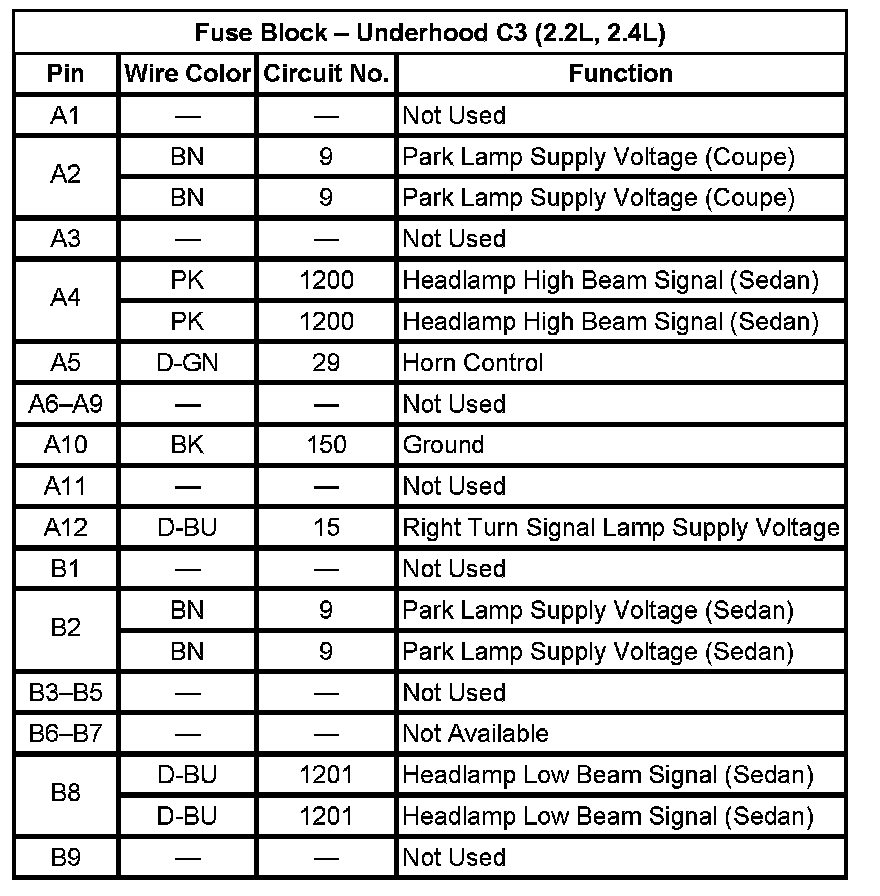

Fuse Block - Underhood C3 (Pin A1 To B9):

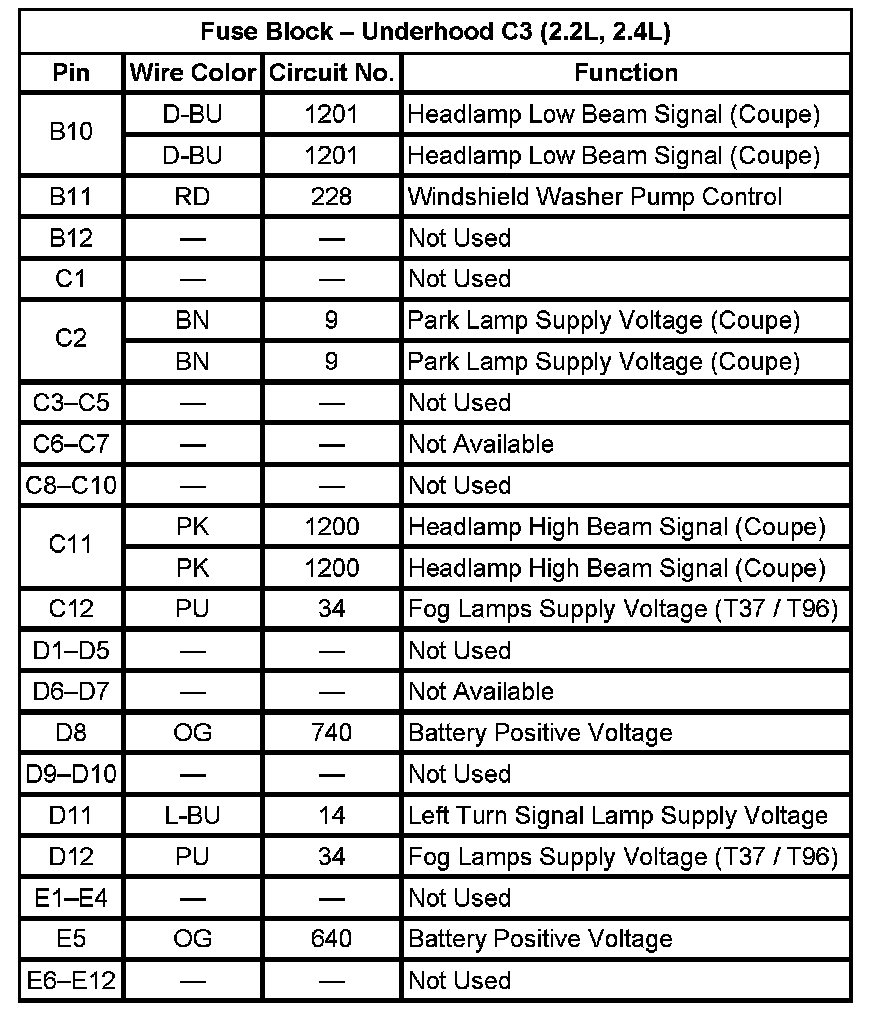

Fuse Block - Underhood C3 (Pin B10 To E12):
