Coolant Temperature Sensor/Switch (For Computer): Diagrams

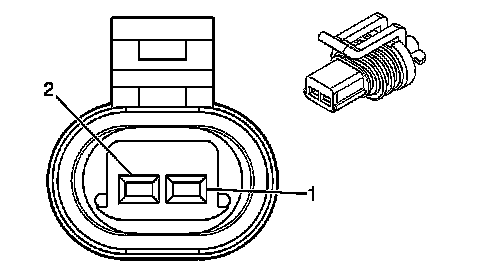

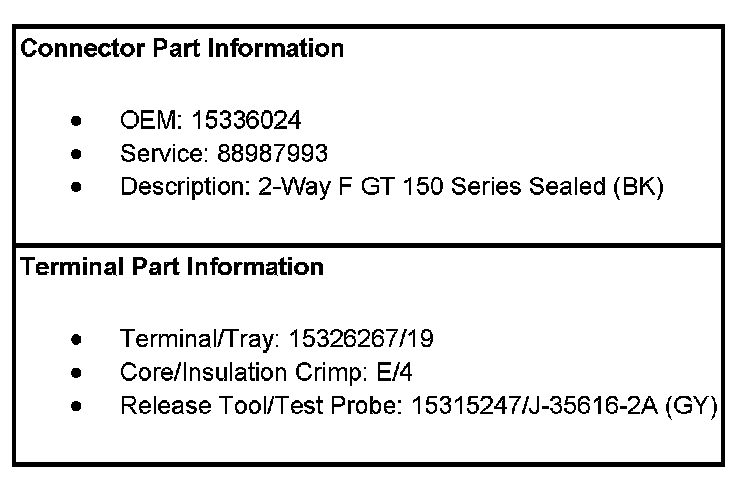

Engine Controls Connector End Views

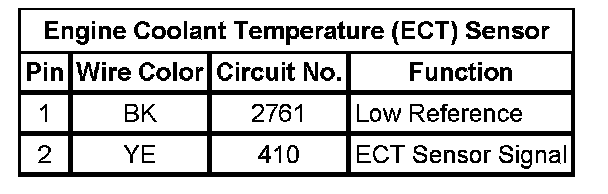

Engine Coolant Temperature (ECT) Sensor
