Knock Sensor: Service and Repair

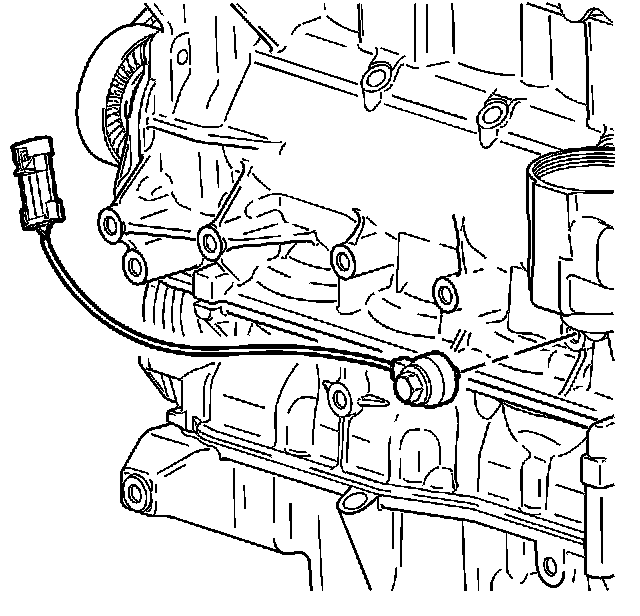

Knock Sensor Replacement

Removal Procedure

1. Remove the starter.




2. Disconnect the knock sensor (KS) harness connector.
3. Remove the KS retaining bolt.
4. Remove the KS.

Installation Procedure






Notice: Refer to Fastener Notice in Service Precautions

Important: The KS threaded surfaces must be clean before installation.

1. Install the knock sensor.

Tighten the knock sensor retaining bolt to 25 N.m (18 lb ft).

2. Connect the knock sensor harness connector.
3. Install the starter.
