Main Relay (Computer/Fuel System): Locations



Electrical Center Identification Views

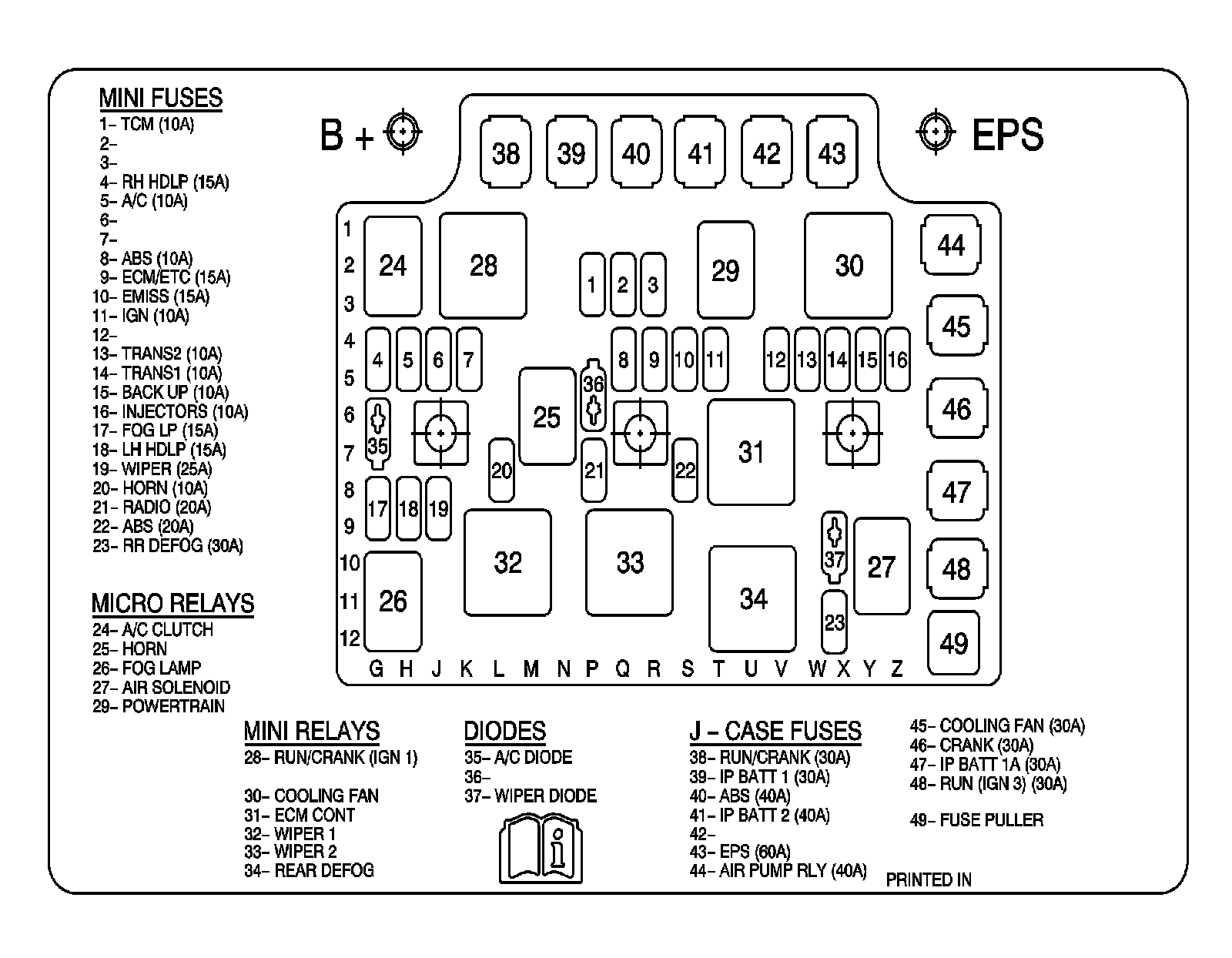

Fuse Block - Underhood Label (2.2L, 2.4L)
