Oil Pressure Sensor: Diagrams

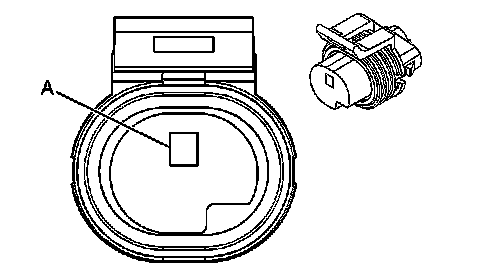

Displays and Gages Connector End Views

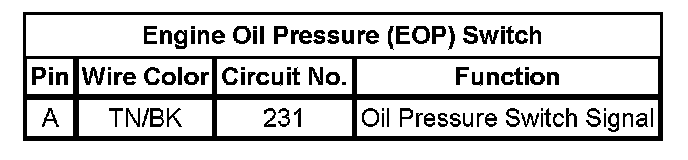

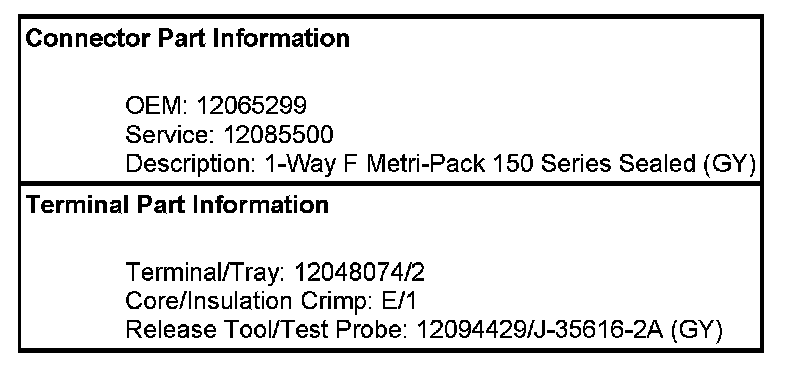

Engine Oil Pressure (EOP) Switch
