Ignition Coil: Diagrams

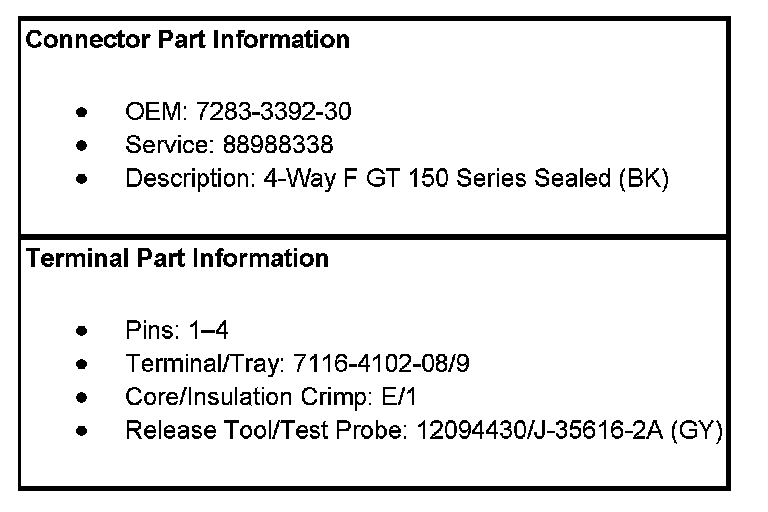

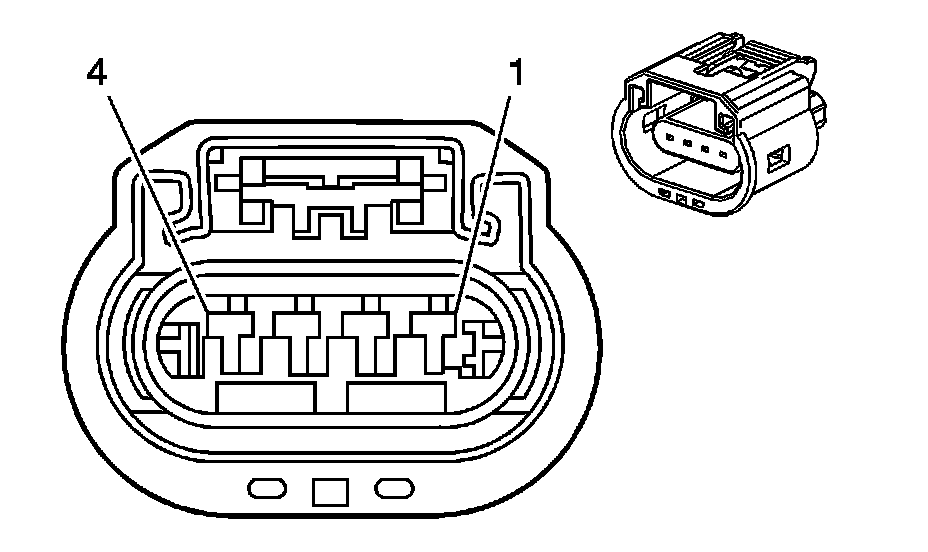

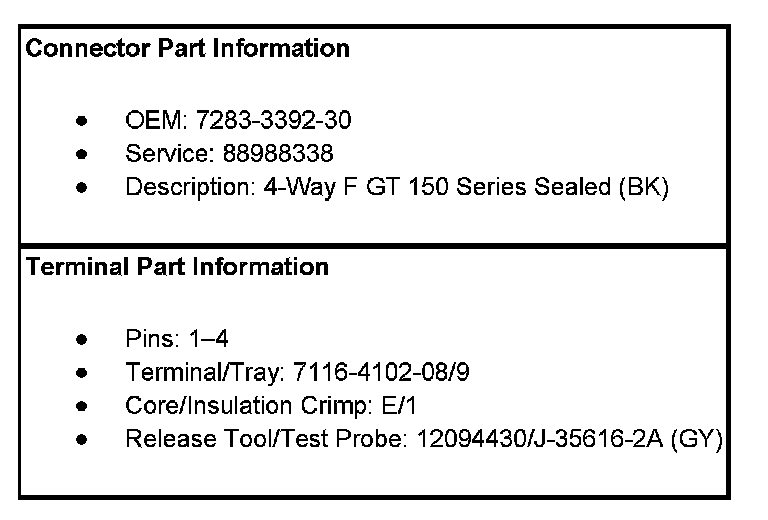

Engine Controls Connector End Views

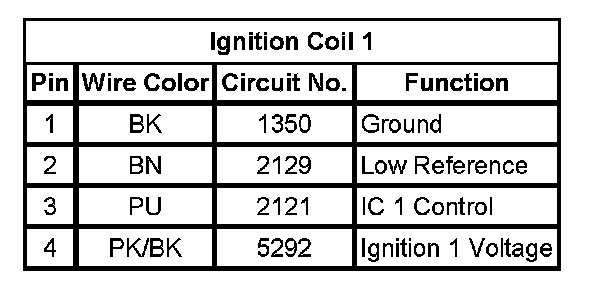

Ignition Coil 1

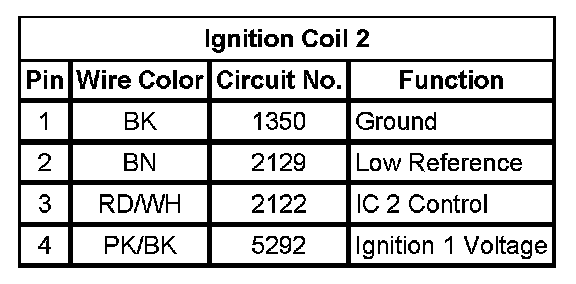

Ignition Coil 2

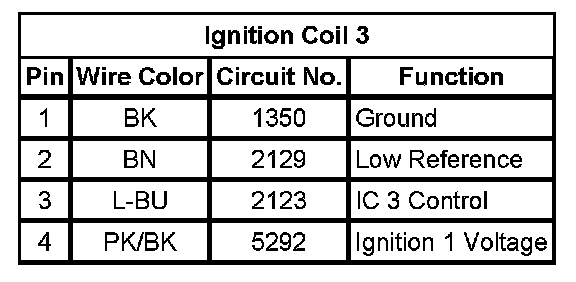

Ignition Coil 3

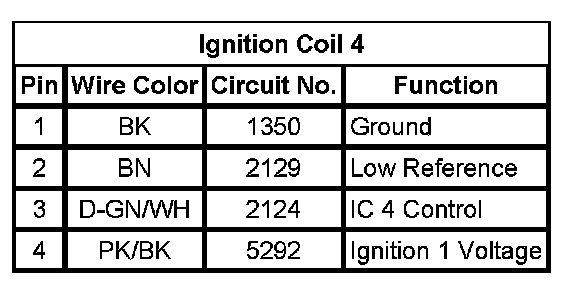

Ignition Coil 4
