Knock Sensor: Locations

Engine Controls Component Views

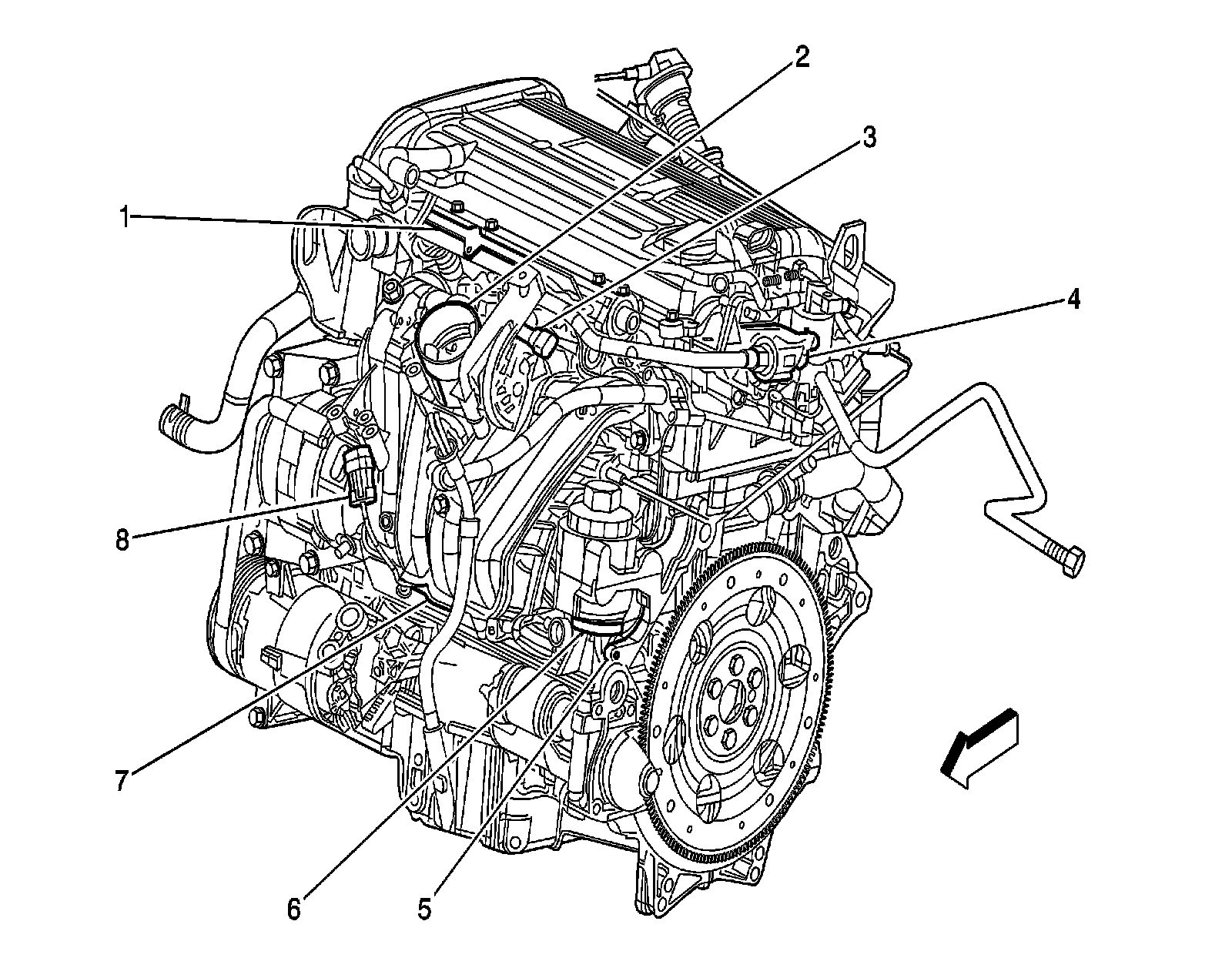

Front Left Side of the Engine (2.2L)




1 - Fuel Injectors Rail
2 - Throttle Body
3 - Manifold Absolute Pressure (MAP) Sensor
4 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
5 - G105 (2.0L Similar)
6 - Crankshaft Position (CKP) Sensor
7 - Knock Sensor (KS)
8 - C150
