Ignition Lock: Diagrams



Power and Grounding Connector End Views

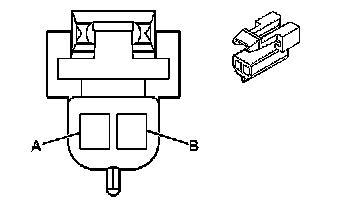

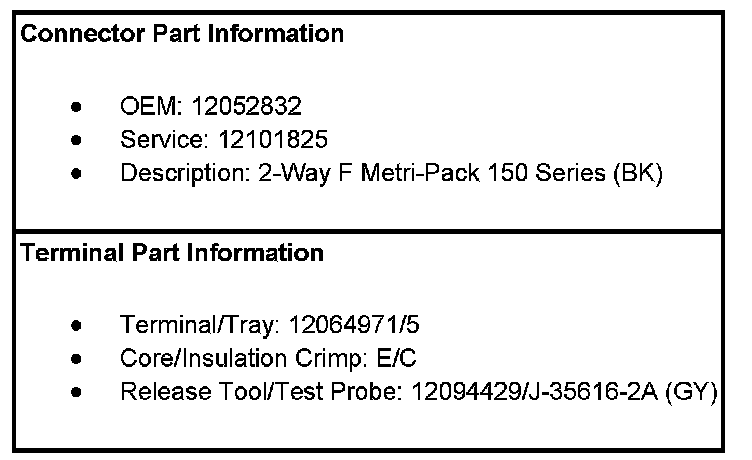

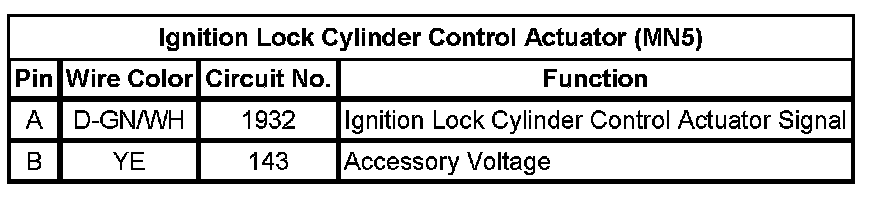

Ignition Lock Cylinder Control Actuator (MN5)

A/T Shift Lock Control Solenoid:
