Ignition Coil



Engine Controls Connector End Views

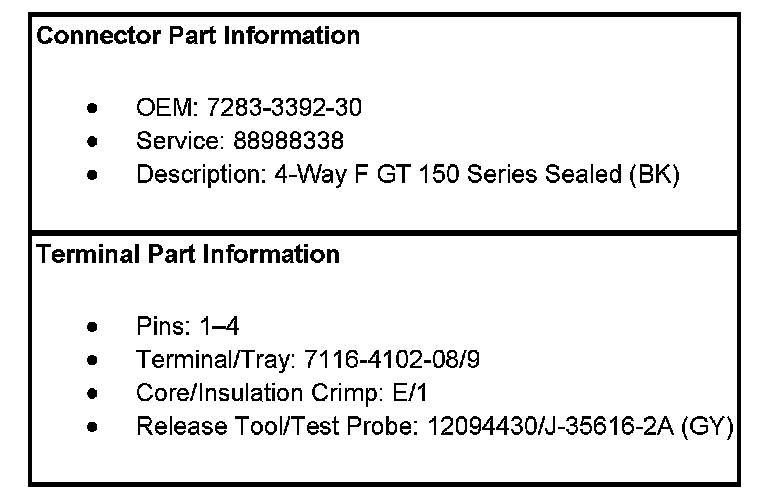

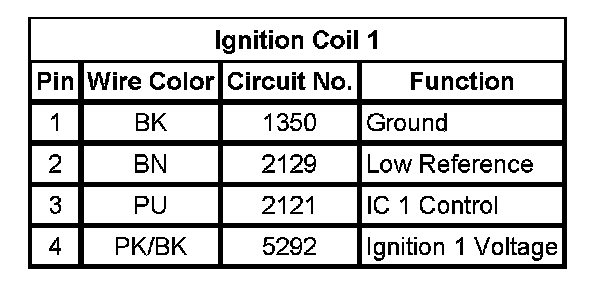

Ignition Coil 1

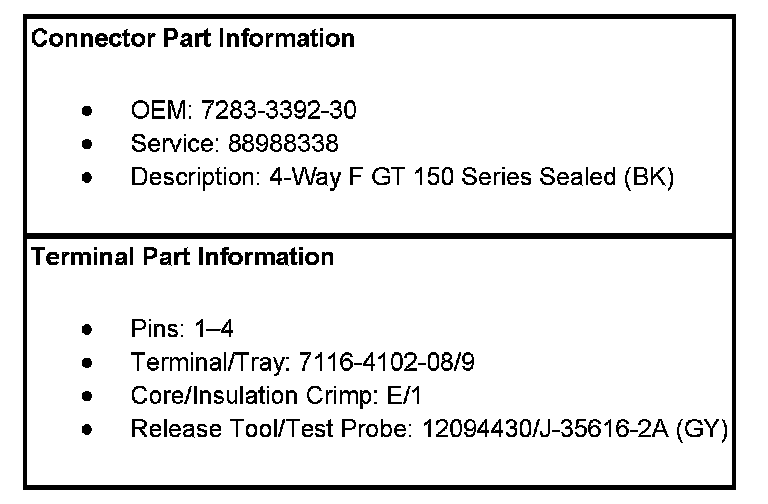

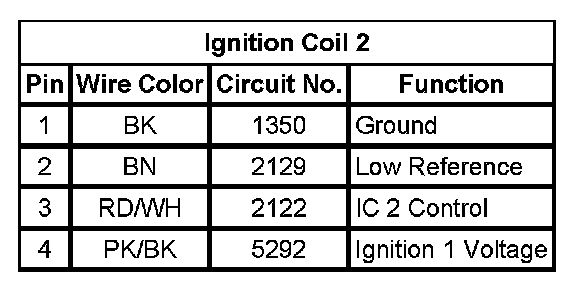

Ignition Coil 2

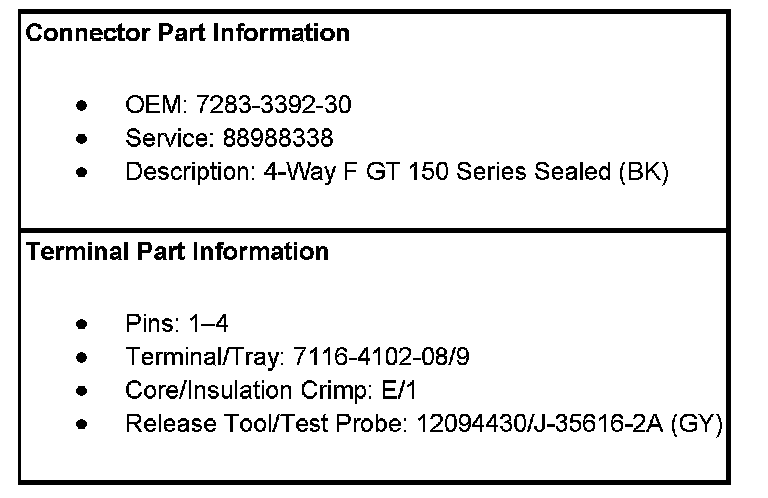

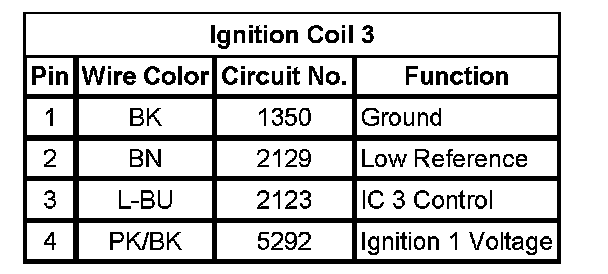

Ignition Coil 3

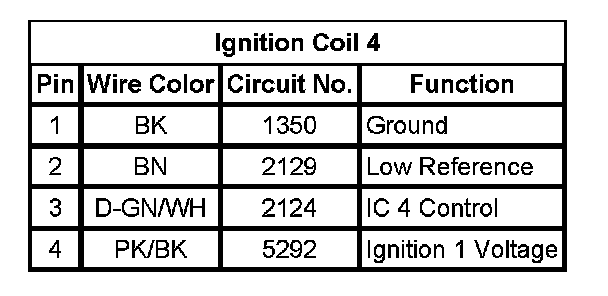

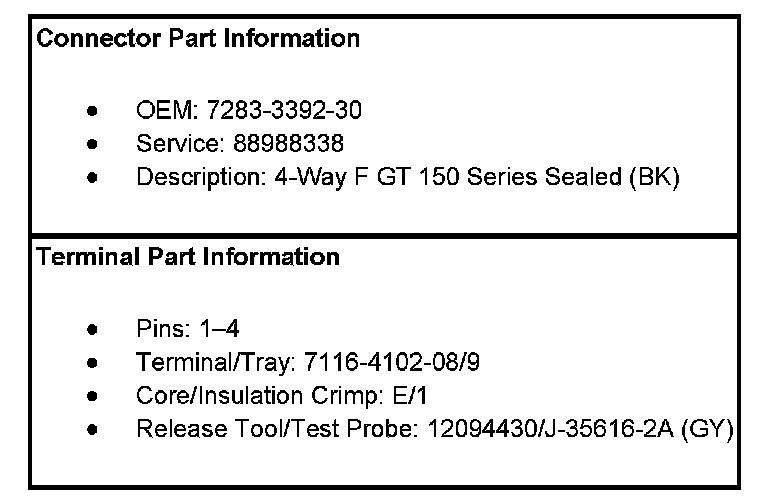

Ignition Coil 4
