Refrigerant Pressure Sensor / Switch, HVAC

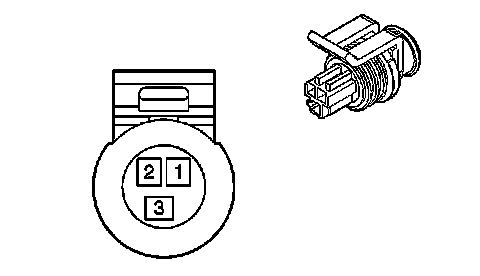

HVAC Connector End Views

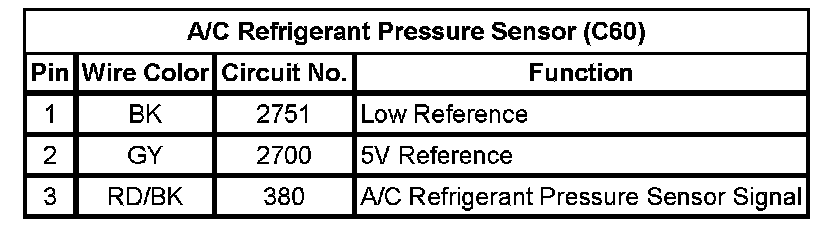

A/C Refrigerant Pressure Sensor (C60)
