Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure




1. Remove the steering column filler panel. Steering Column Opening Filler Replacement.

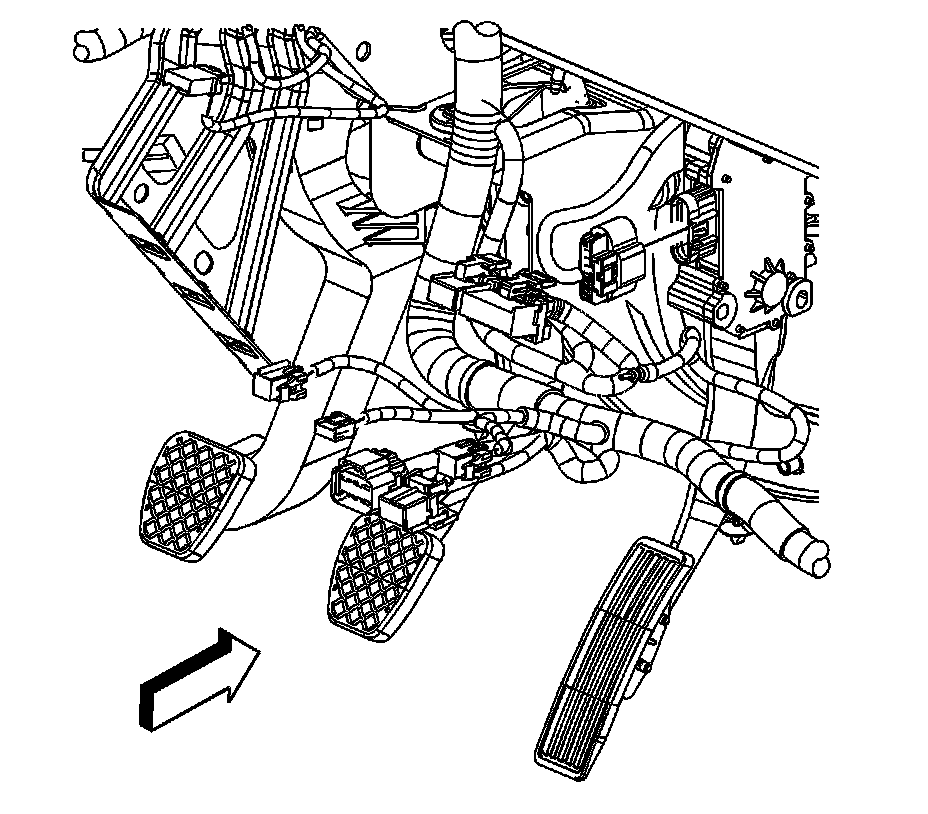

2. Disconnect the instrument panel (I/P) wiring harness electrical connector from the accelerator pedal position (APP) sensor.

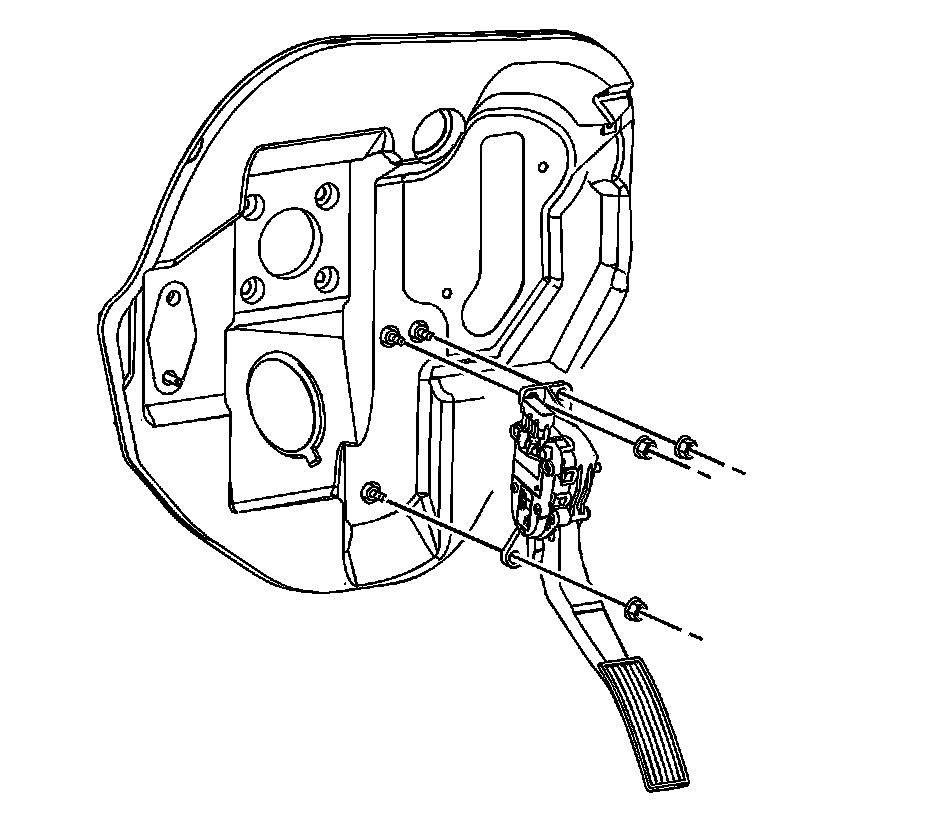

3. Remove the accelerator pedal bolts.
4. Remove the accelerator pedal with sensor.

Installation Procedure




1. Position the accelerator pedal with sensor.

Notice: Refer to Fastener Notice.

2. Install the accelerator pedal bolts.

Tighten the bolts to 10 N.m (89 lb in).




3. Connect the I/P wiring harness electrical connector to the APP sensor.
4. Install the steering column filler panel.
