Knock Sensor: Service and Repair

Knock Sensor Replacement

Removal Procedure

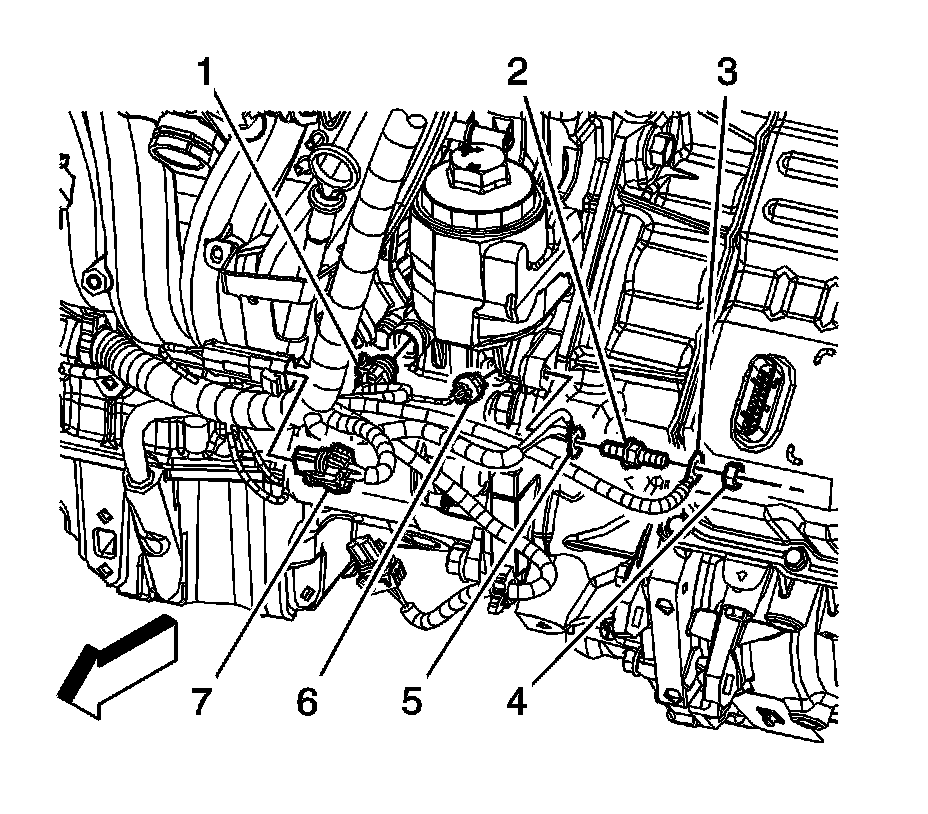

1. Disconnect the knock sensor (KS) electrical connector (7).




2. Remove the KS bolt.
3. Remove the KS.

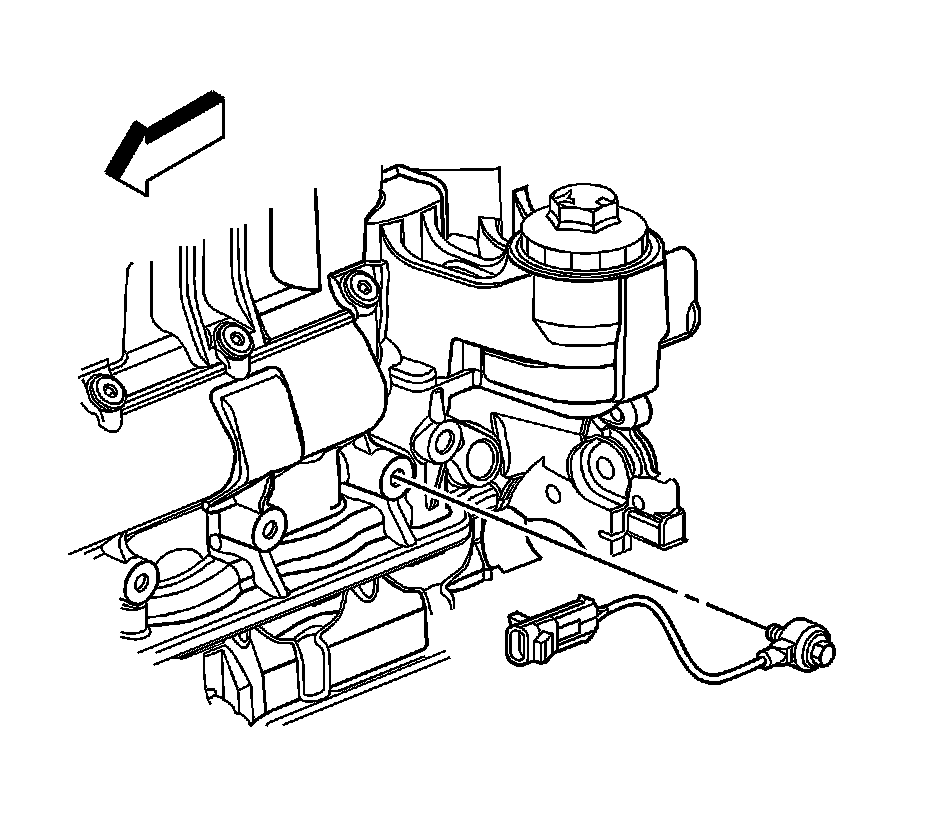

Installation Procedure

Important: Rotate the pigtail 90 degrees from vertical before securing the fastener.




1. Install the KS.

Notice: Refer to Fastener Notice.

2. Install the KS bolt.

Tighten the bolt to 25 N.m (18 lb ft).




3. Connect the KS electrical connector (7).
