Automatic Transmission Internal Connector End Views
Automatic Transmission Internal Connector End Views

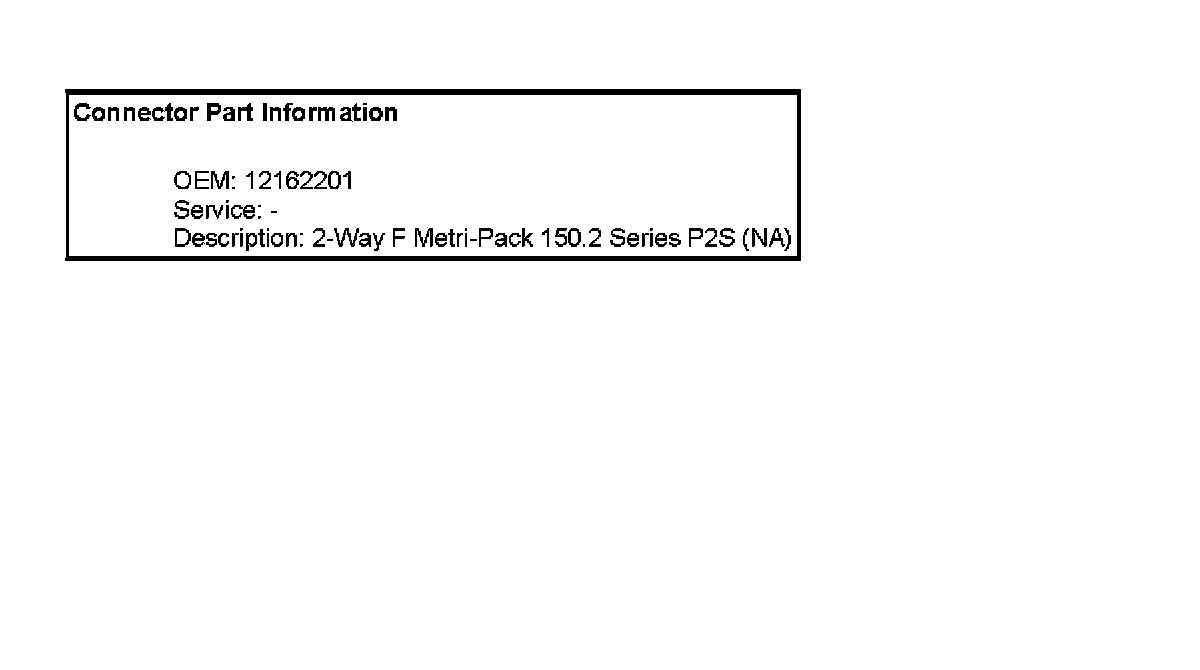

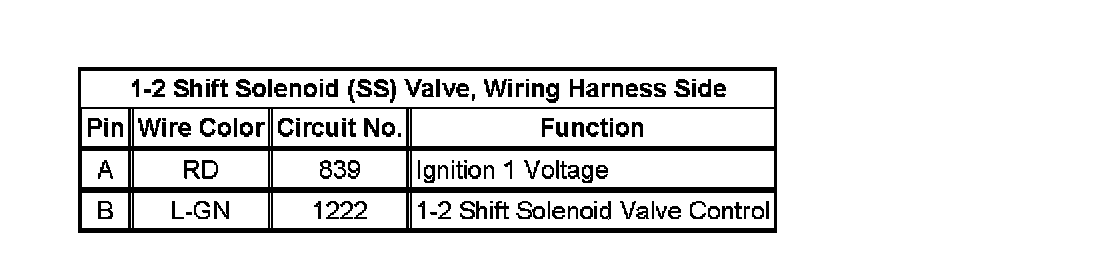

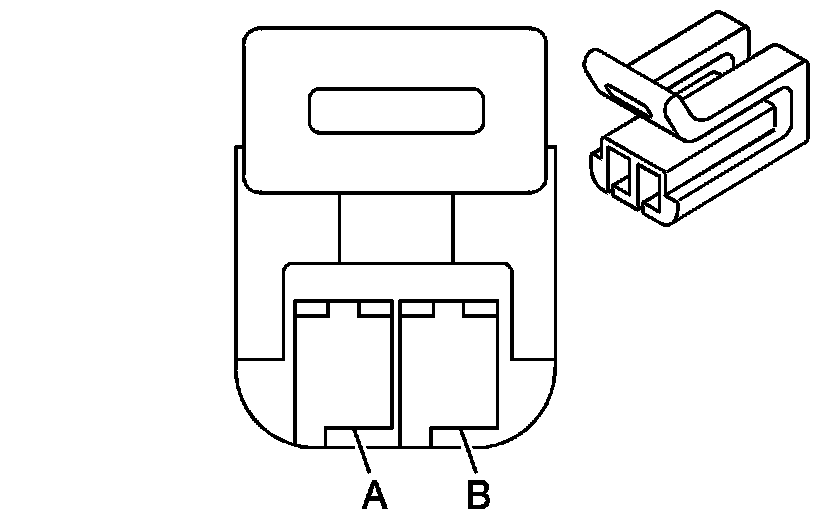

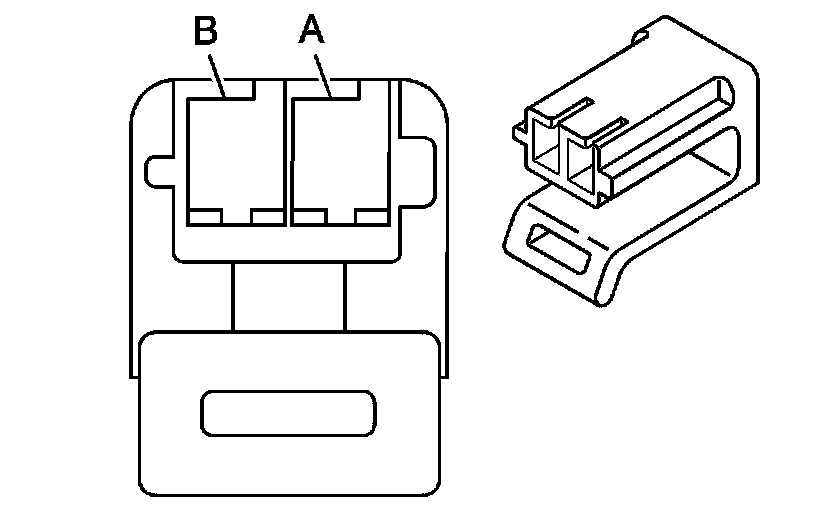

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side
1-2 Shift Solenoid (SS) Valve, Wiring Harness Side:

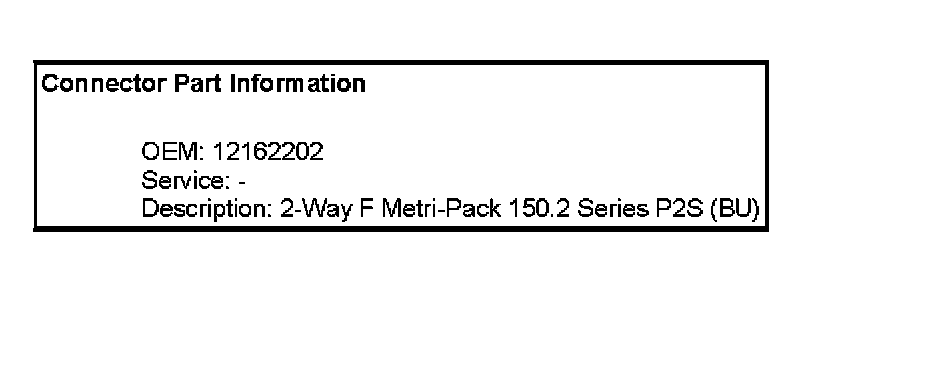

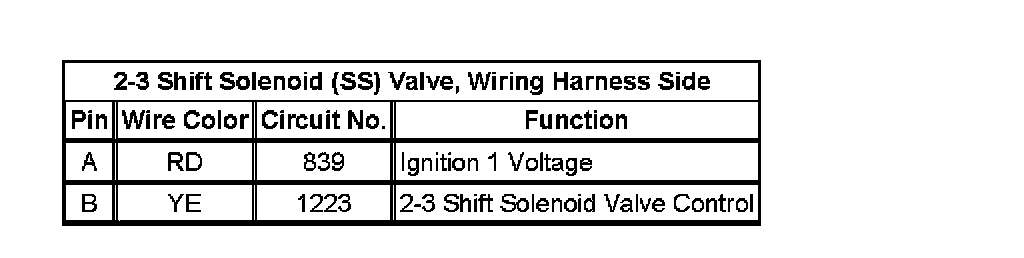

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side
2-3 Shift Solenoid (SS) Valve, Wiring Harness Side:

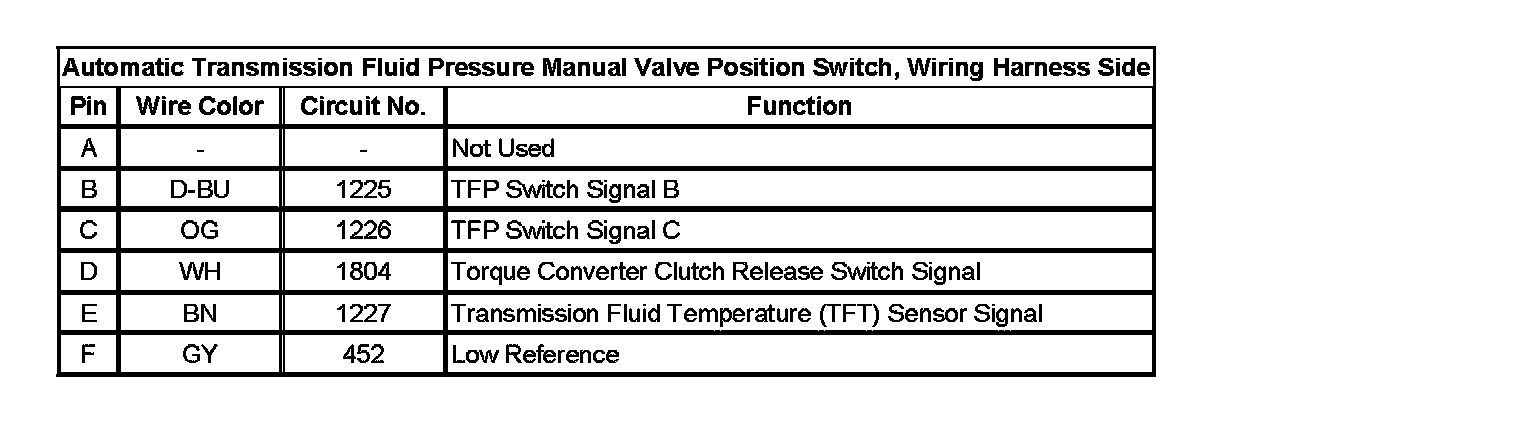

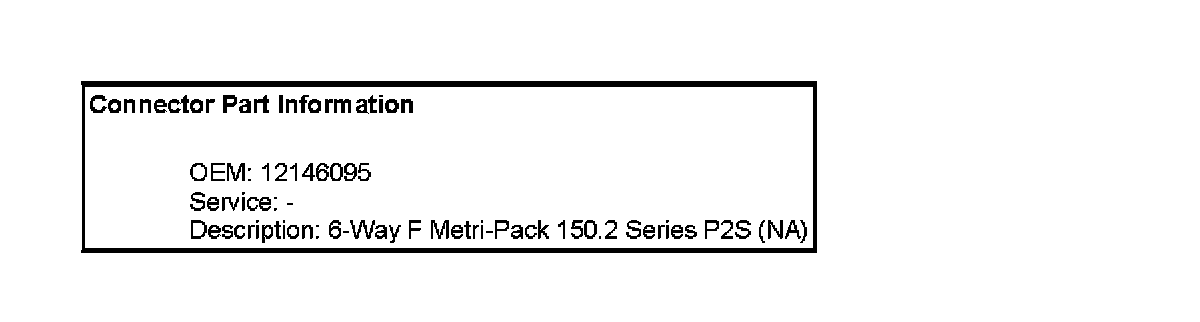

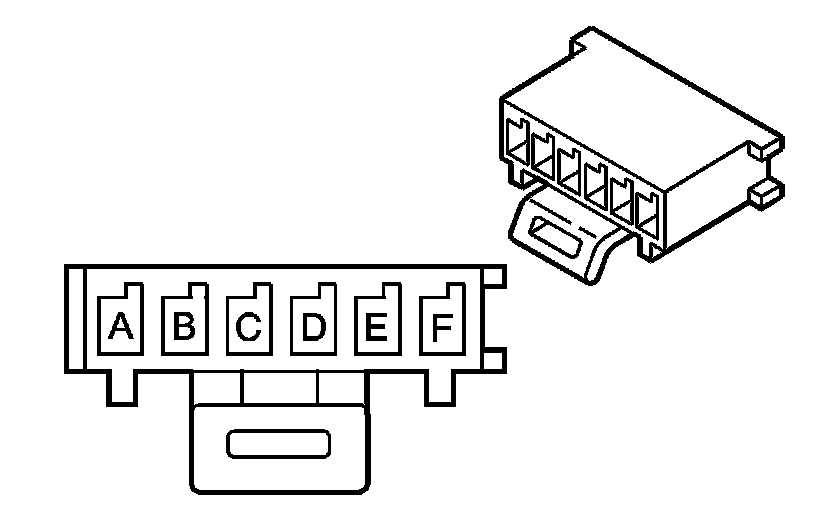

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side
Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side:

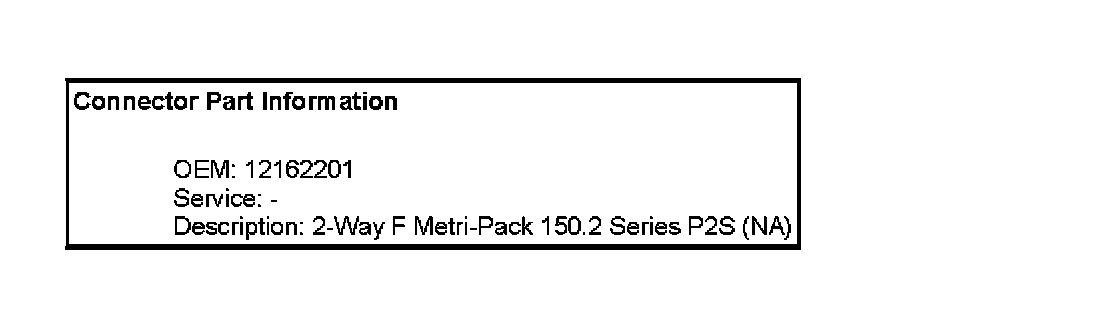

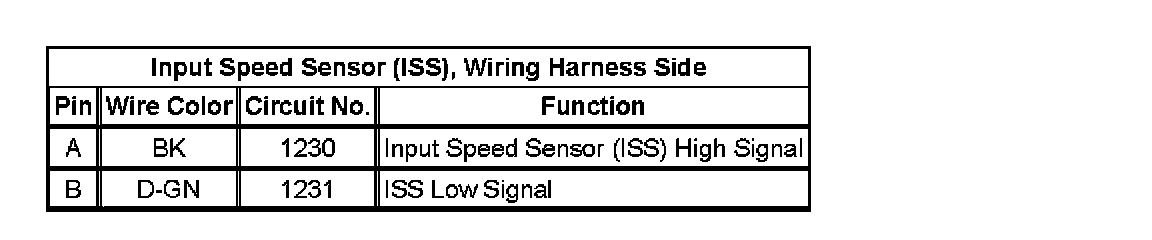

Input Speed Sensor (ISS), Wiring Harness Side
Input Speed Sensor (ISS), Wiring Harness Side:

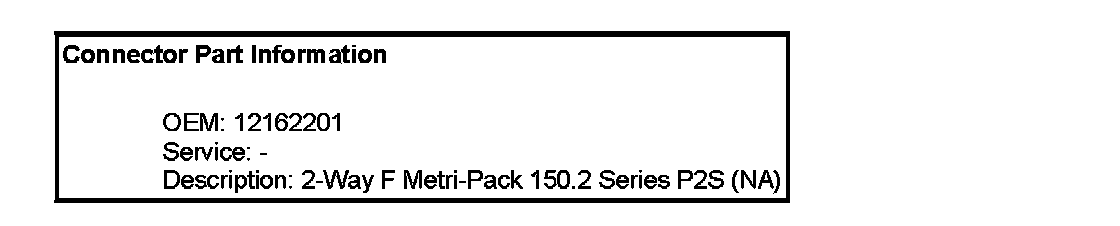

Pressure Control Solenoid Valve, Wiring Harness Side
Pressure Control Solenoid Valve, Wiring Harness Side:

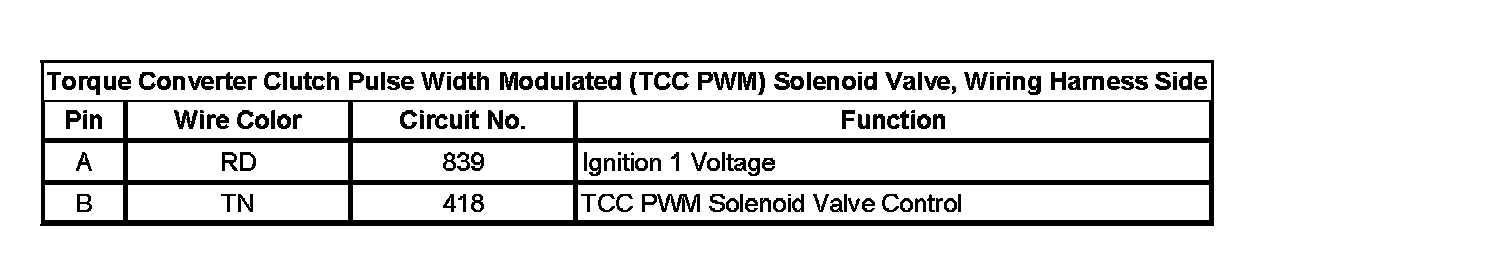

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side
Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side:
