Removal Procedure

  1. Lift the pull cup liner.

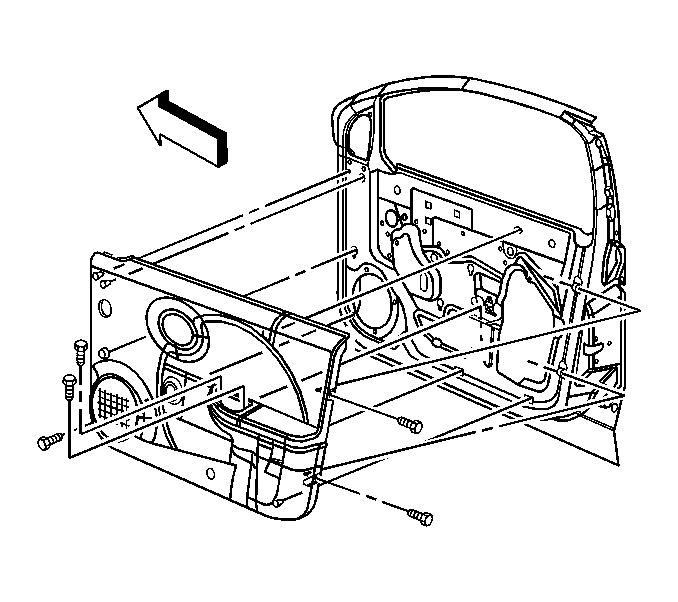

    2. Fig 1: View Of Front Door Trim
    GM864943Courtesy of GENERAL MOTORS CORP.
  2. Remove the pull cup screws from the door trim.
  3. Using a small flat-bladed tool, pry the rearward end of the pull cup out of the door trim.
  4. Pull rearward to disengage the forward pull cup hook from the door trim.

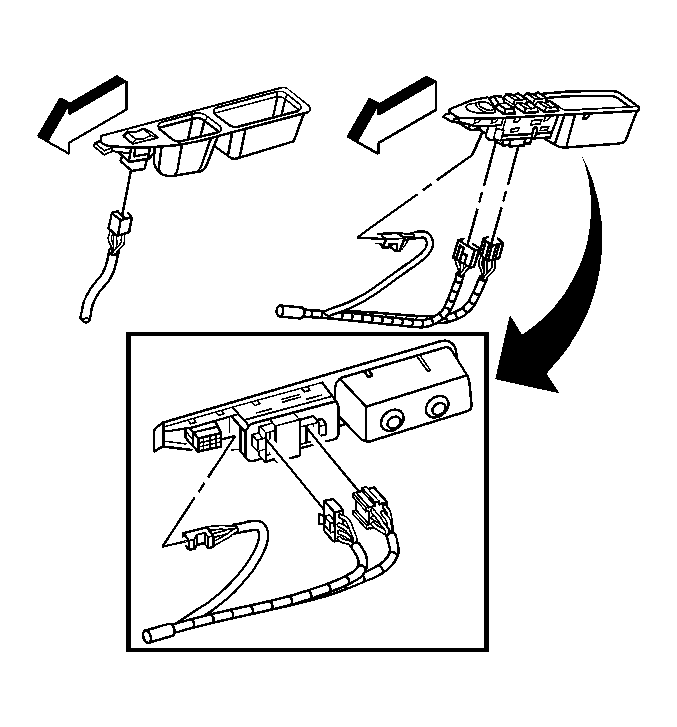

    5. Fig 2: View Of Power Window Switch & Electrical Connector
    GM888370Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the mirror switch electrical connector.
  6. Disengage the locking tabs that hold the mirror switch in the pull cup.
  7. Remove the switch from the pull cup.
