Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

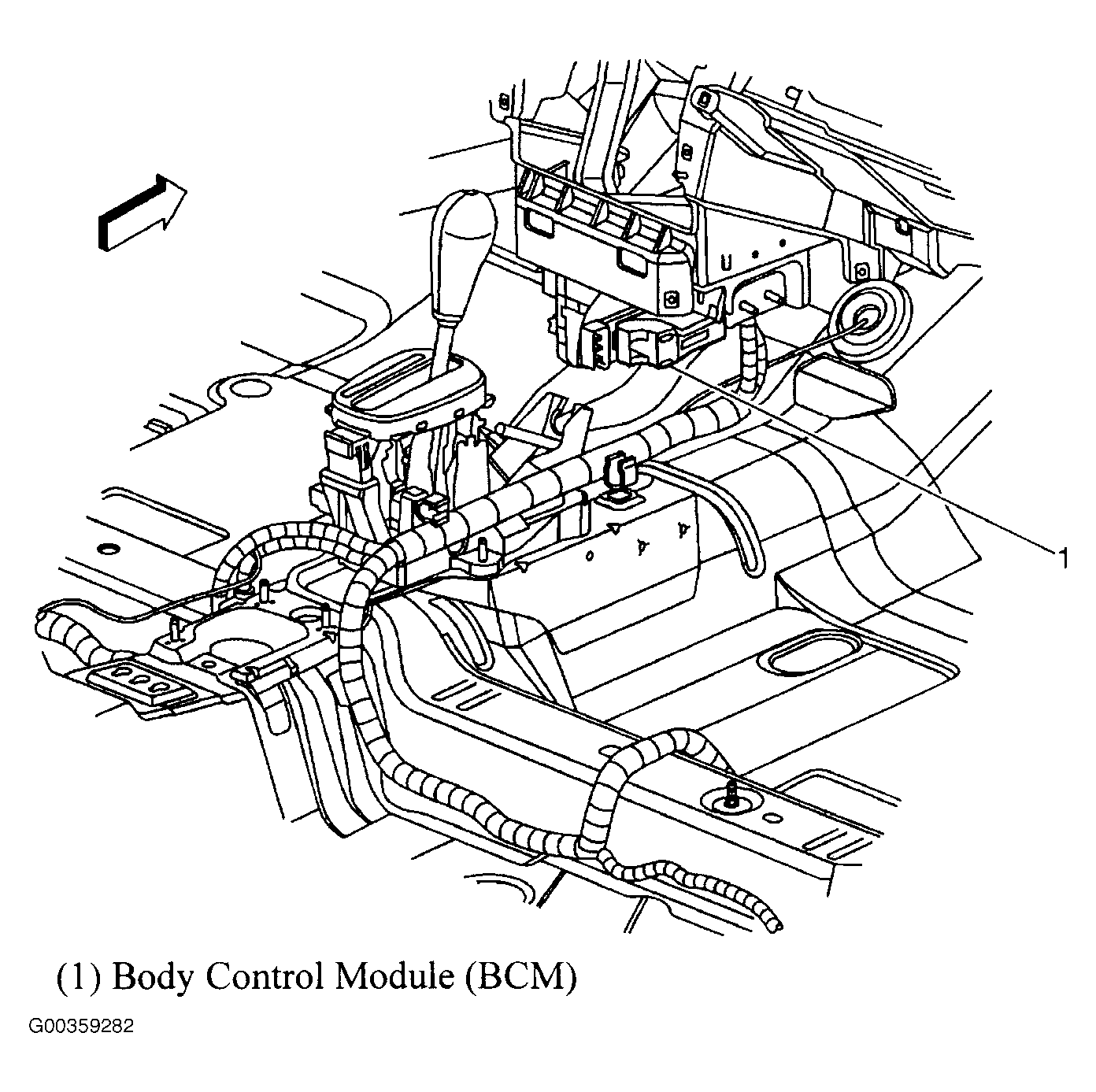

| Body Control Module (BCM) | At lower center of dash. See Figure. |

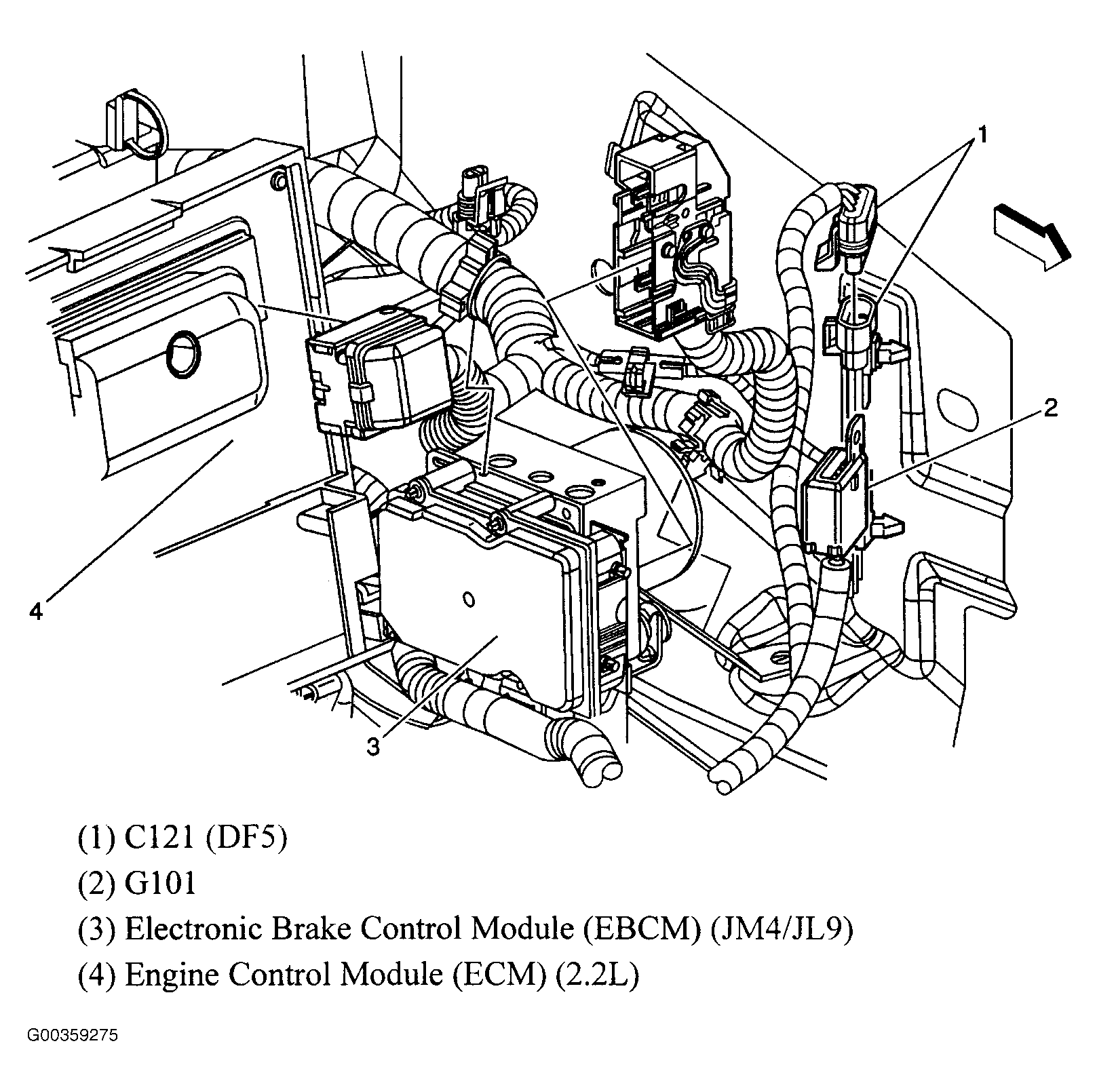

| Electronic Brake Control Module (EBCM) | At left side of engine compartment. See Figure. |

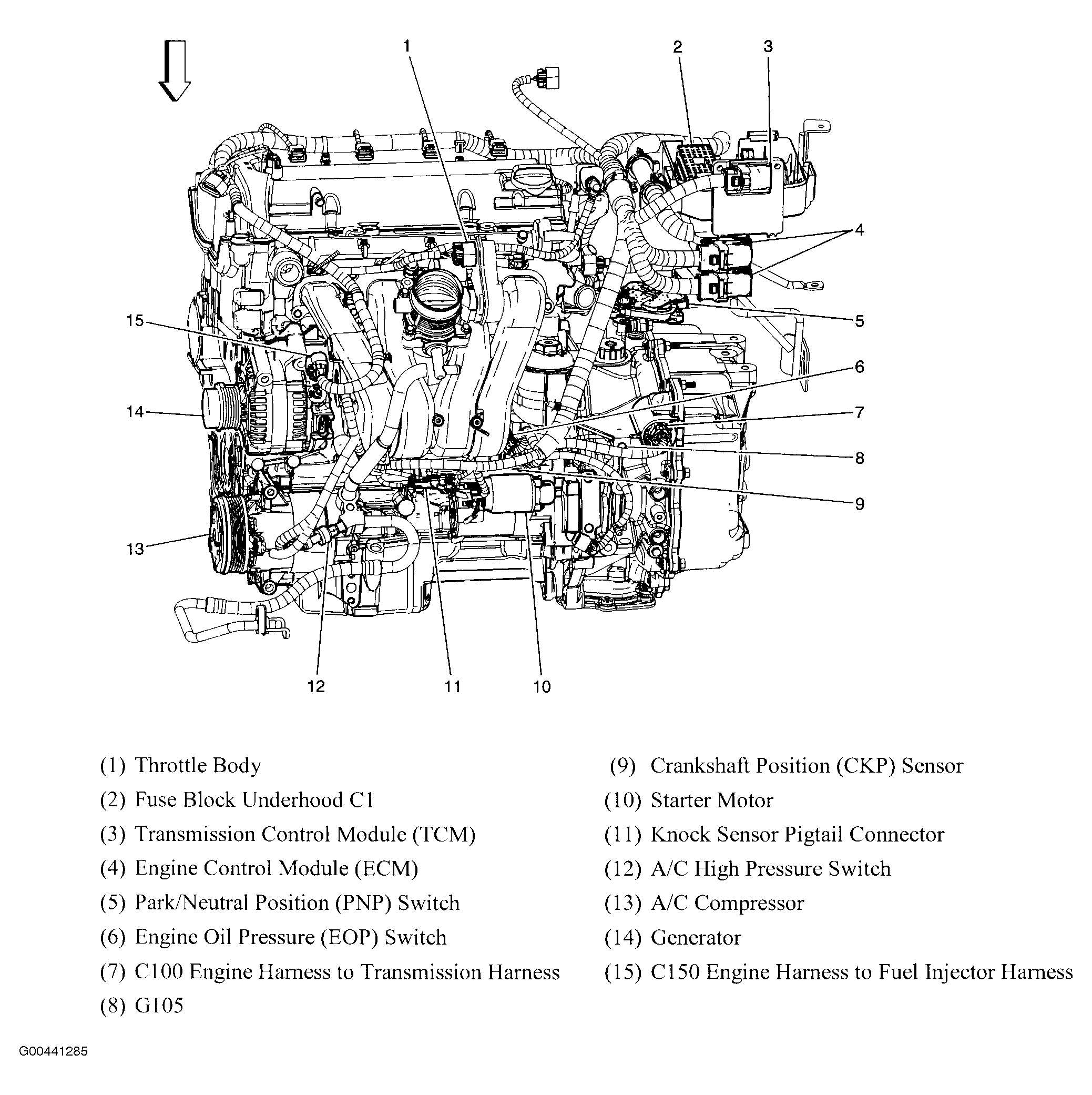

| Engine Control Module (ECM) | At left side of engine compartment. See Figure. |

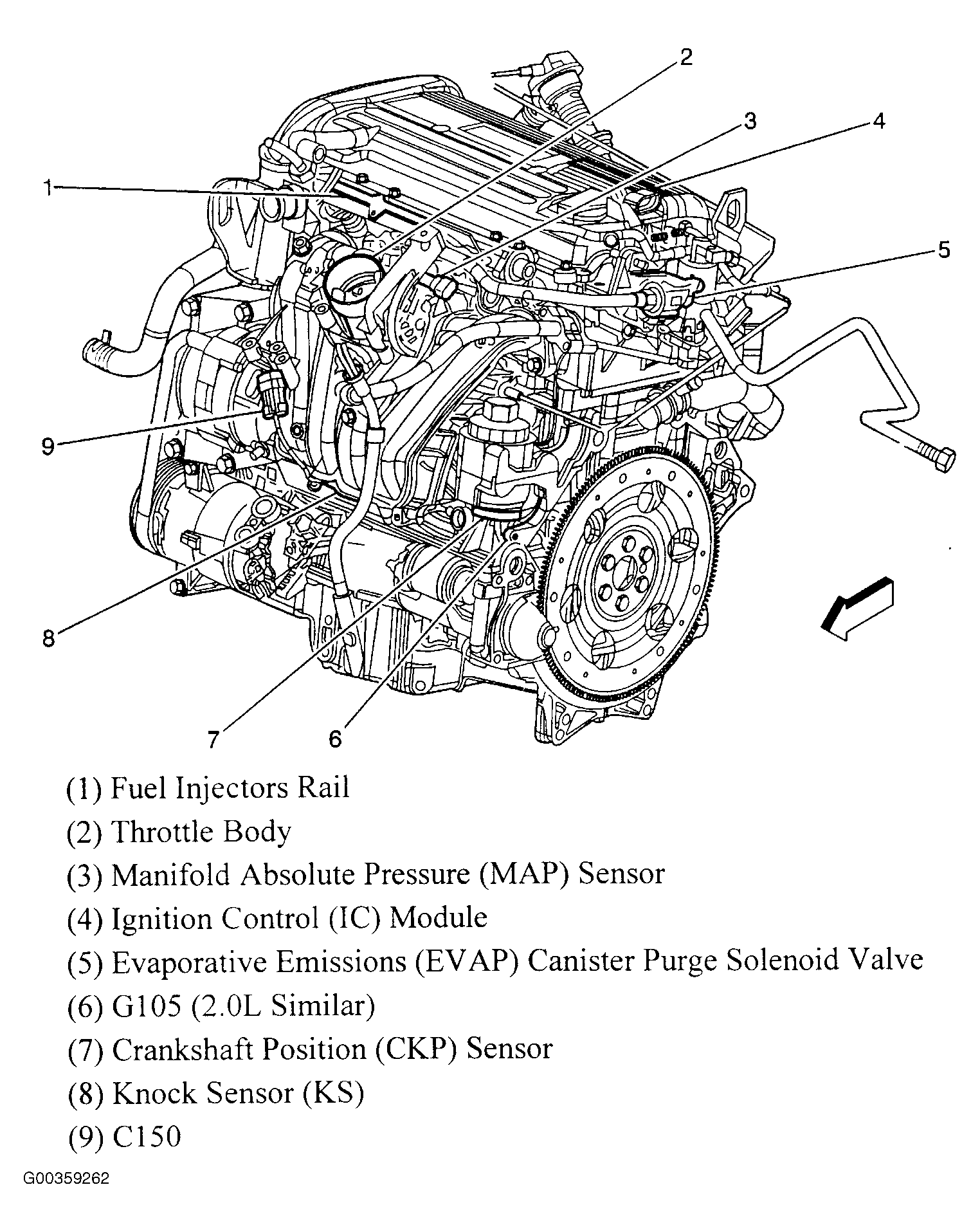

| Ignition Control (IC) Module | At top rear of engine, near oil fill cap. See Figure. |

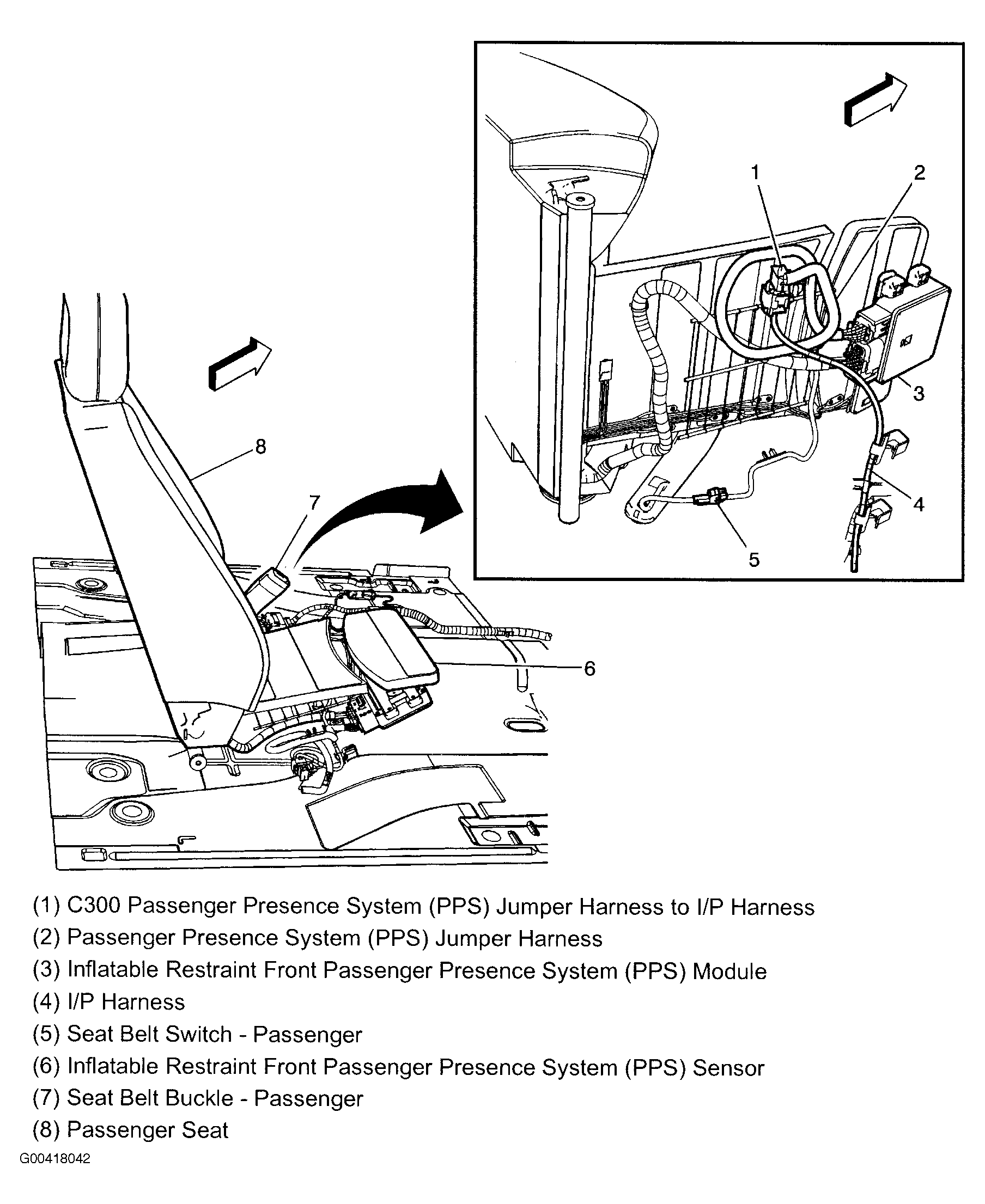

| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under front passenger's seat. See Figure. |
| Inflatable Restraint I/P Module | At right side of dash. See Figure. |

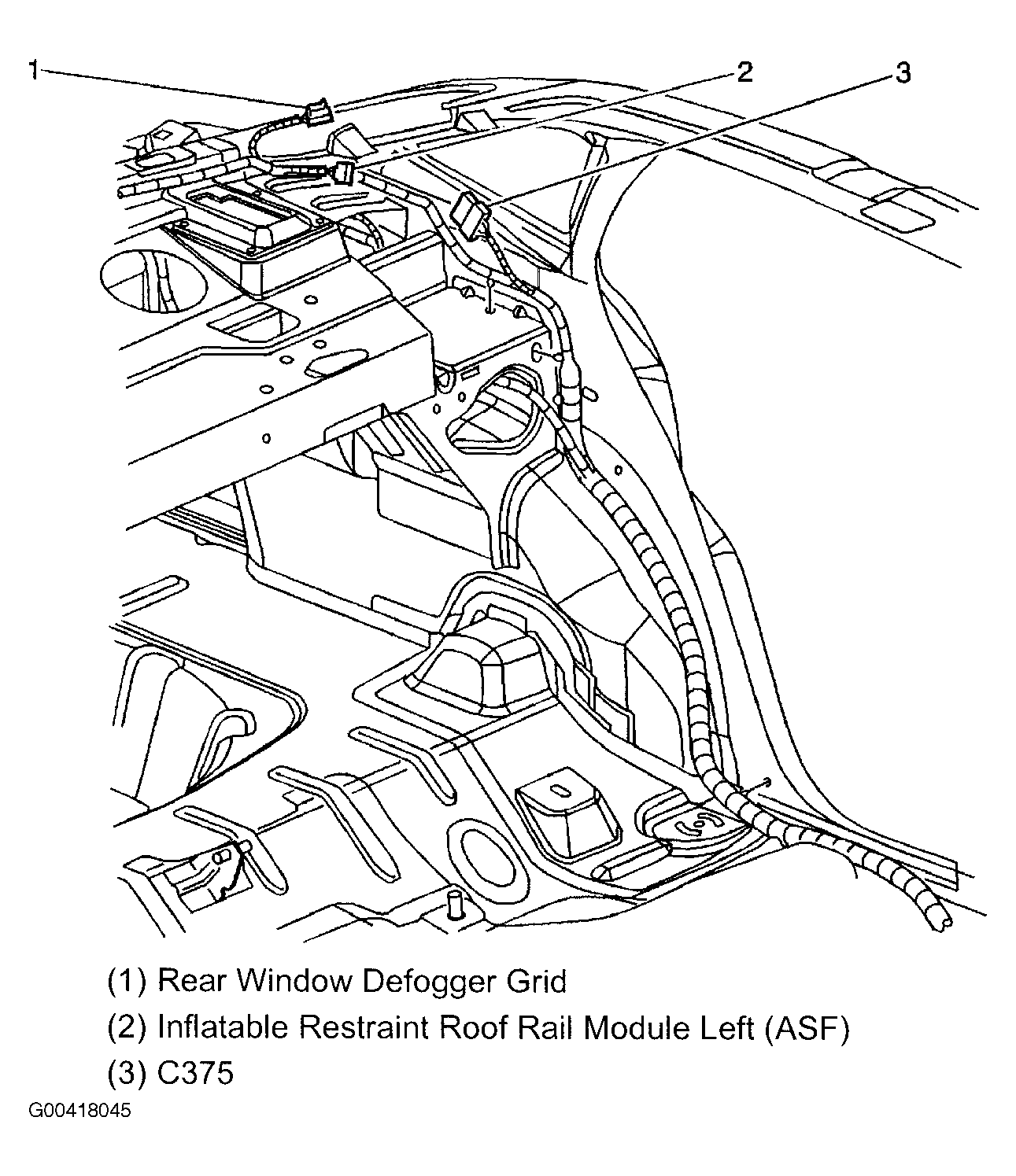

| Inflatable Restraint Roof Rail Module (Left) | At left rear side of roof bracket, in "C" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module (Right) | At right rear side of roof bracket, in "C" pillar. See Figure. |

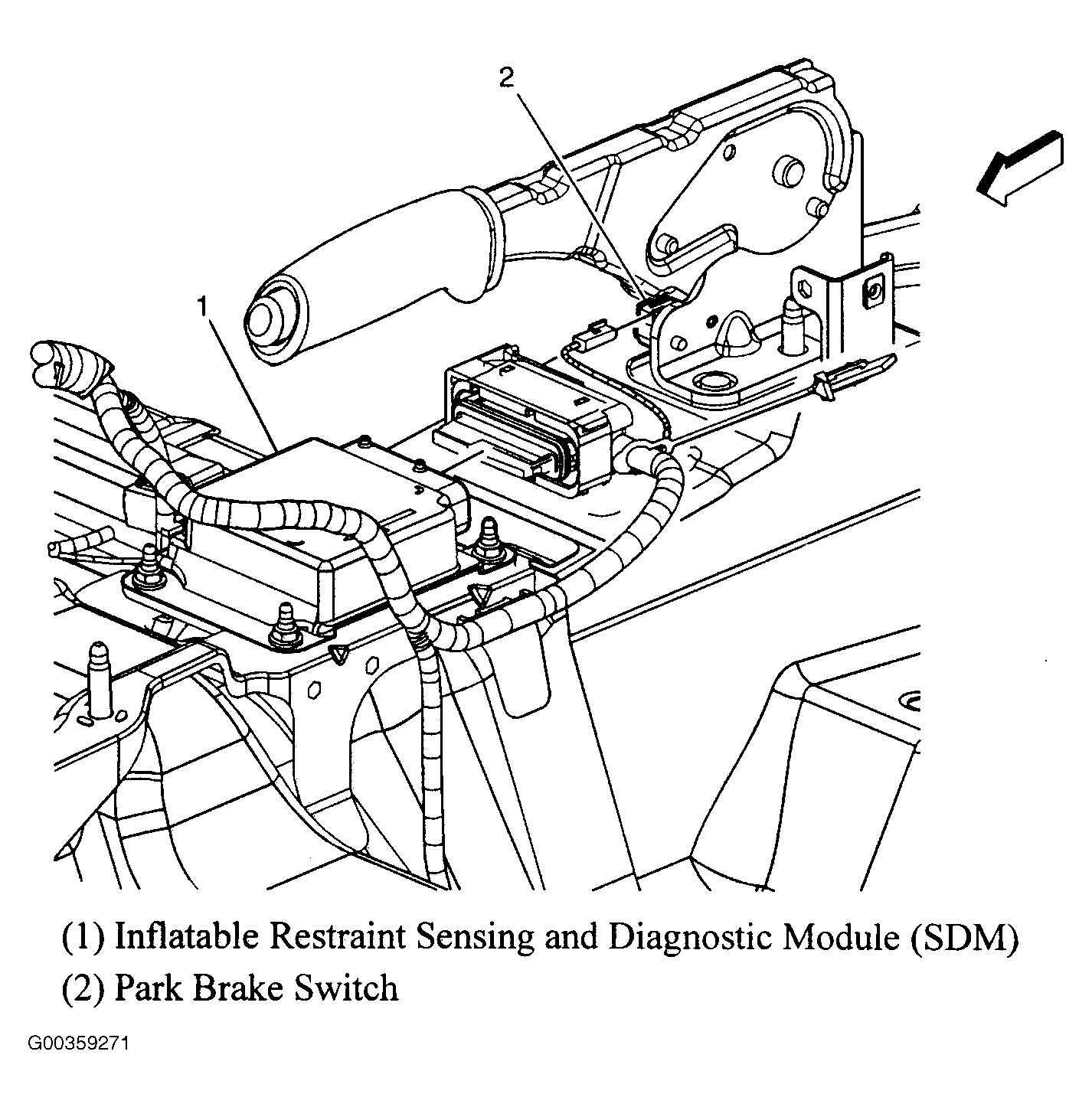

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console, behind emergency brake. See Figure. |

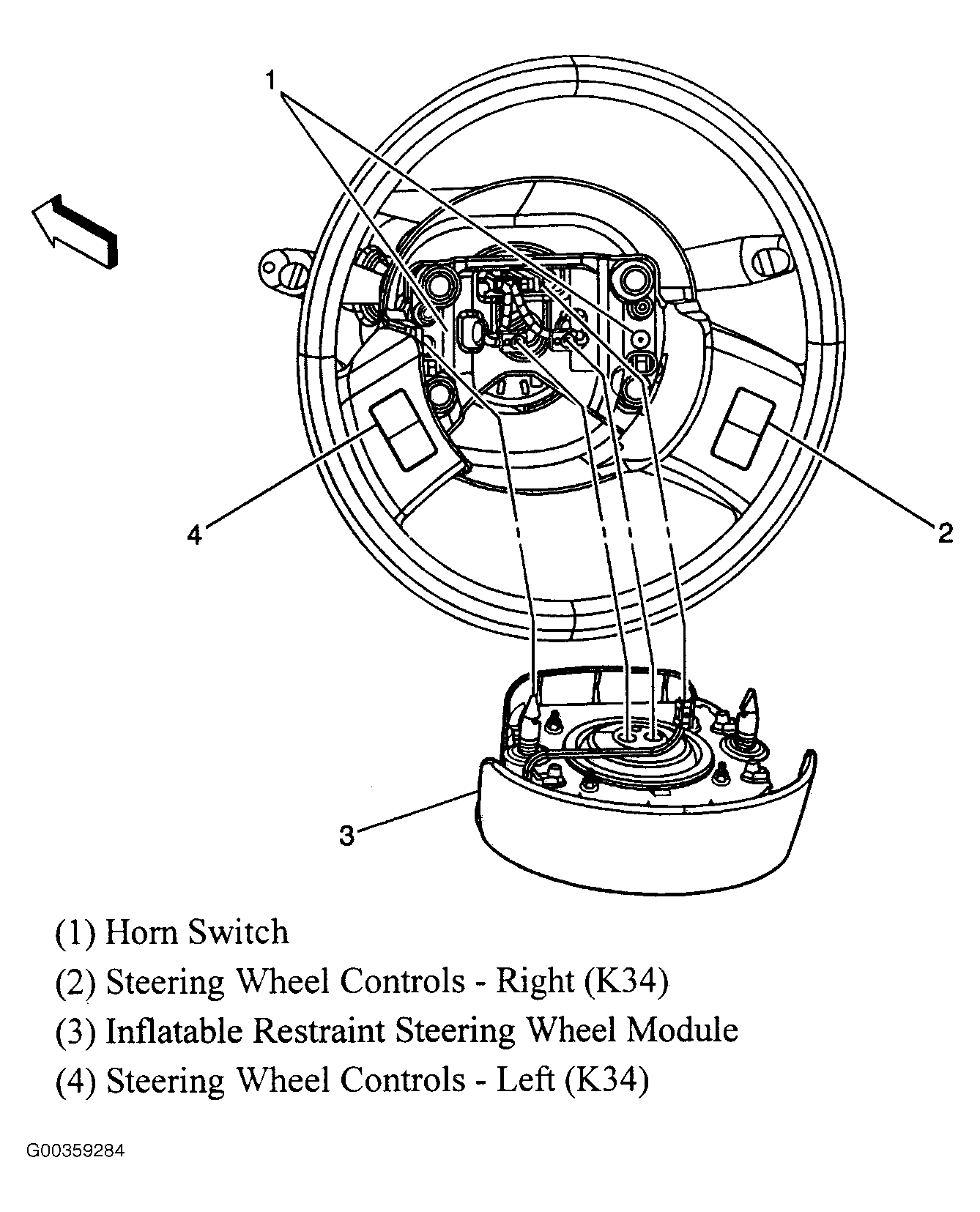

| Inflatable Restraint Steering Wheel Module | On steering wheel. See Figure. |
| I/P Module | Behind top right side of dash. See Figure. |

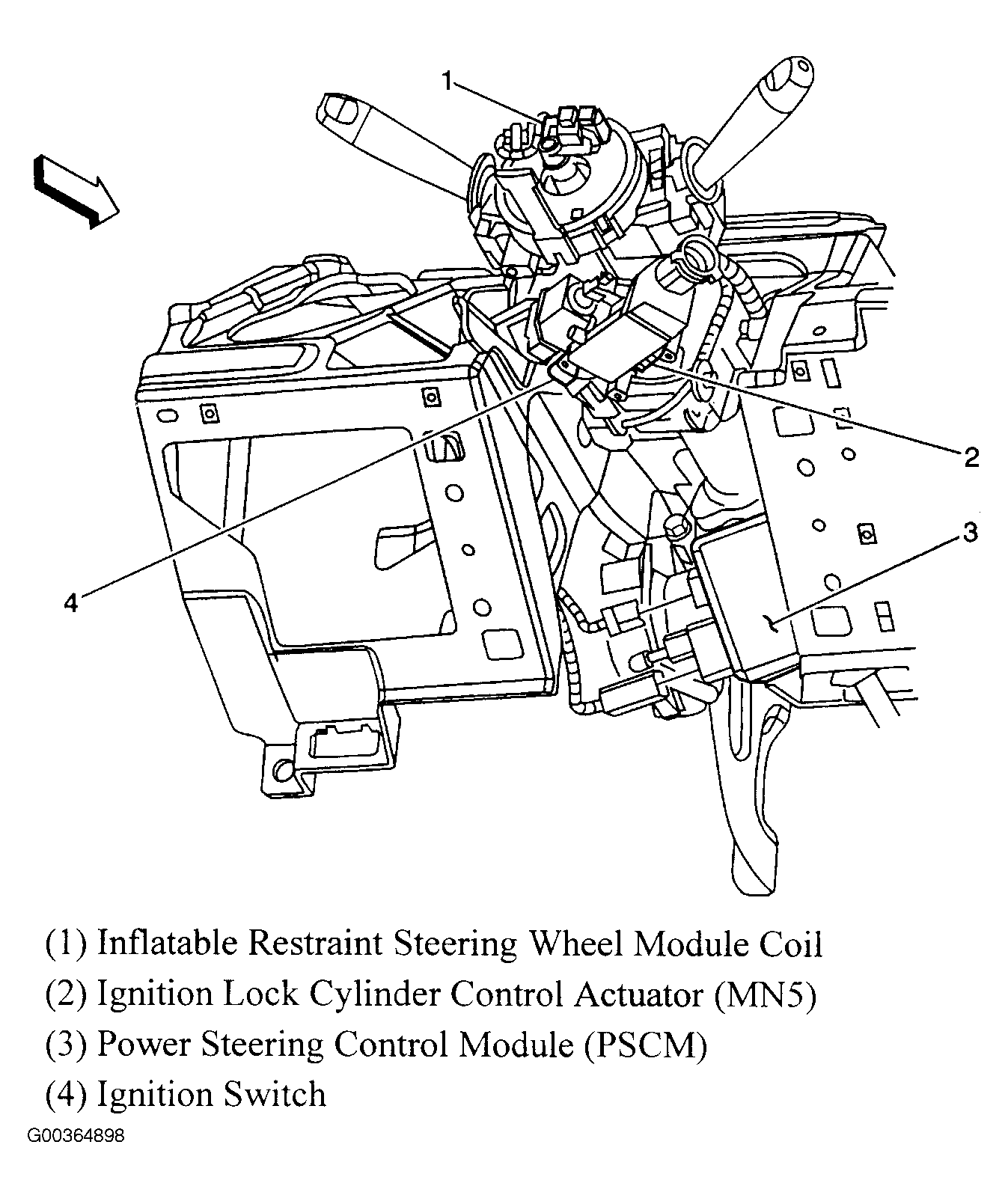

| Power Steering Control Module (PSCM) | Attached to steering column. See Figure. |

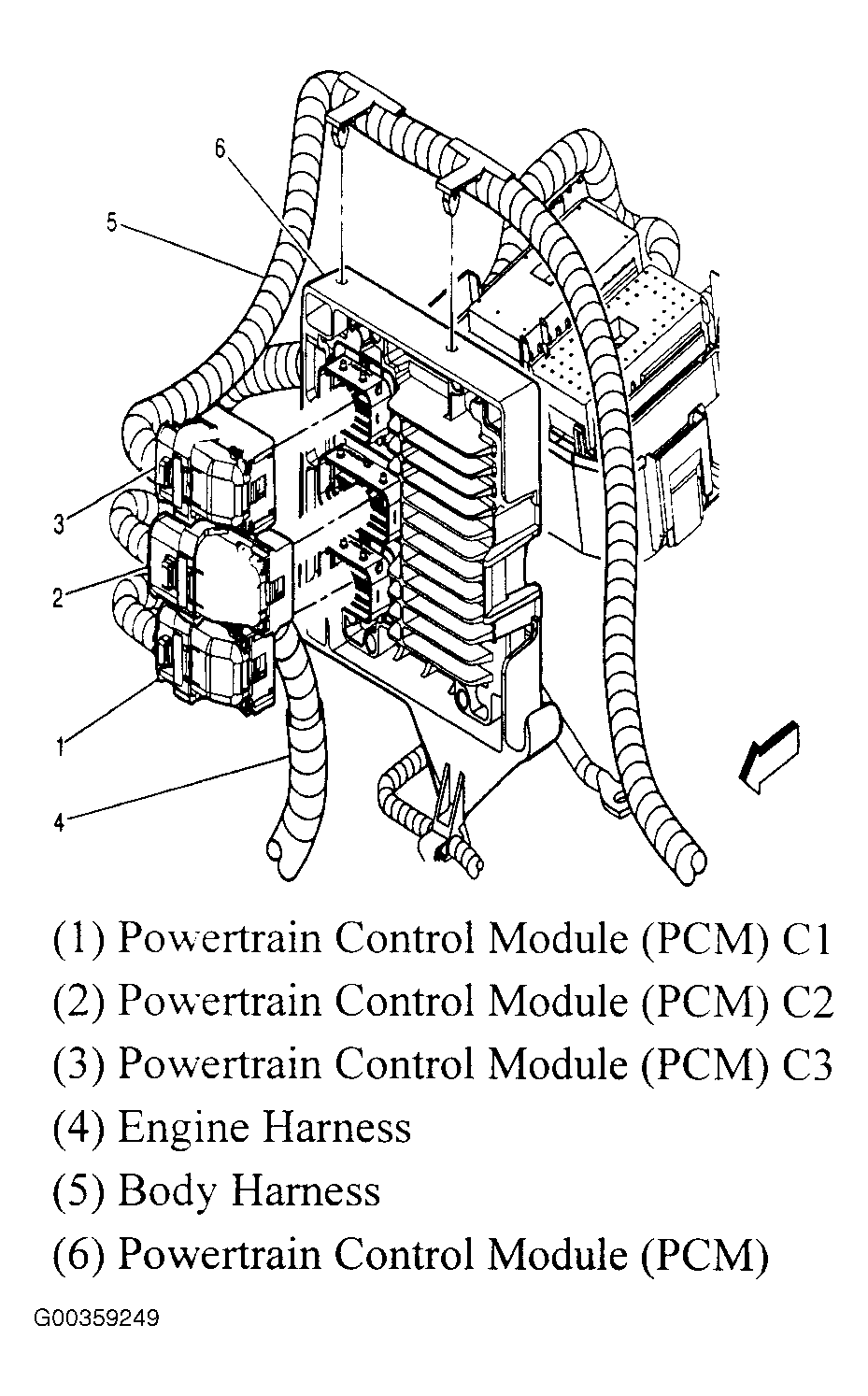

| Powertrain Control Module (PCM) (2.0L) | At rear of engine, near coolant overflow container. See Figure. |
| Roof Rail Module-Left | On upper left "C" pillar. See Figure. |
| Roof Rail Module-Right | On upper right "C" pillar. See Figure. |
| Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |
| Steering Wheel Module | On steering wheel. See Figure. |

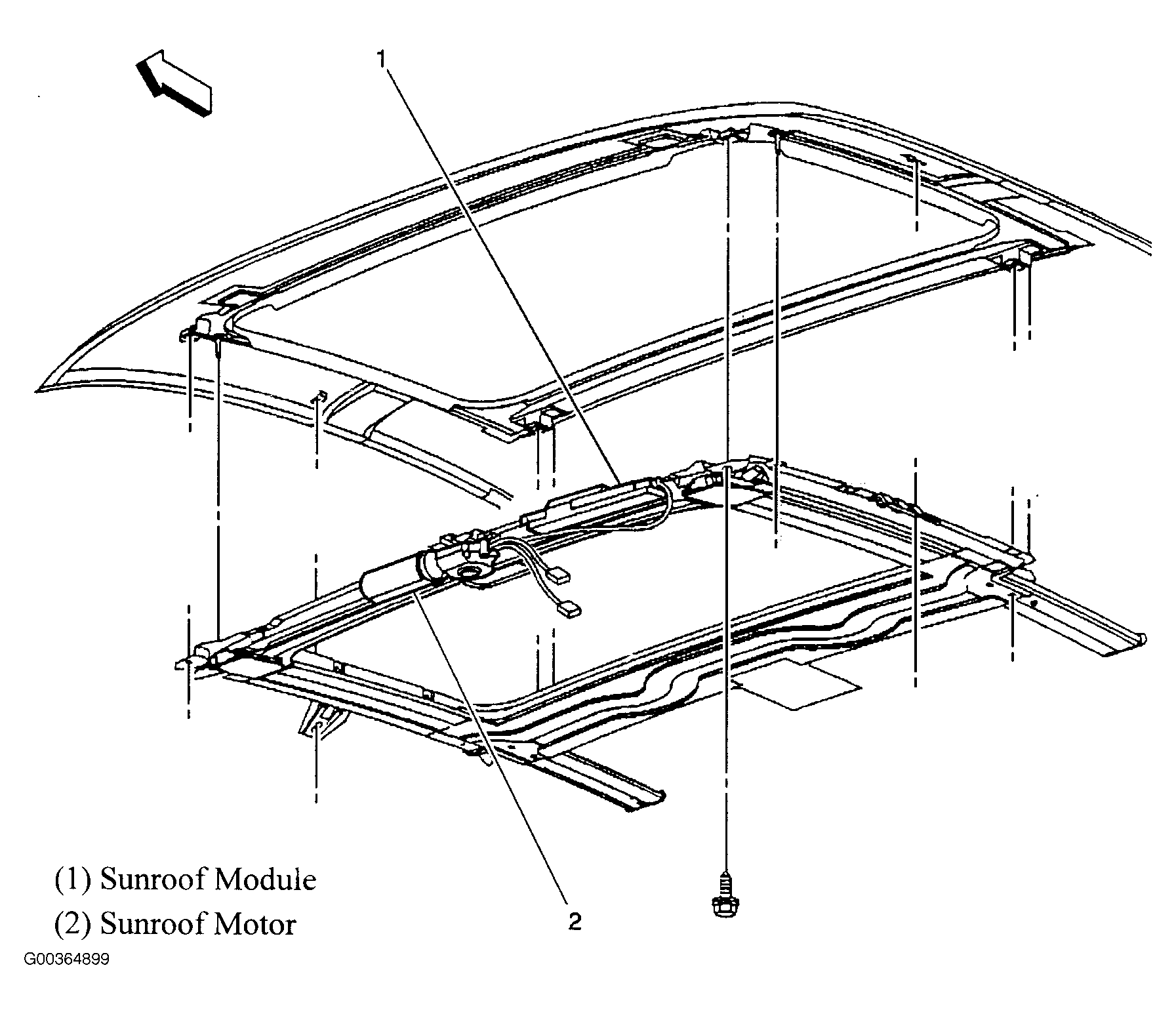

| Sunroof Module | Left of sun visor, in headliner. See Figure. |
| Transmission Control Module (TCM) (A/T) | At left rear of engine compartment, near strut tower. See Figure. |

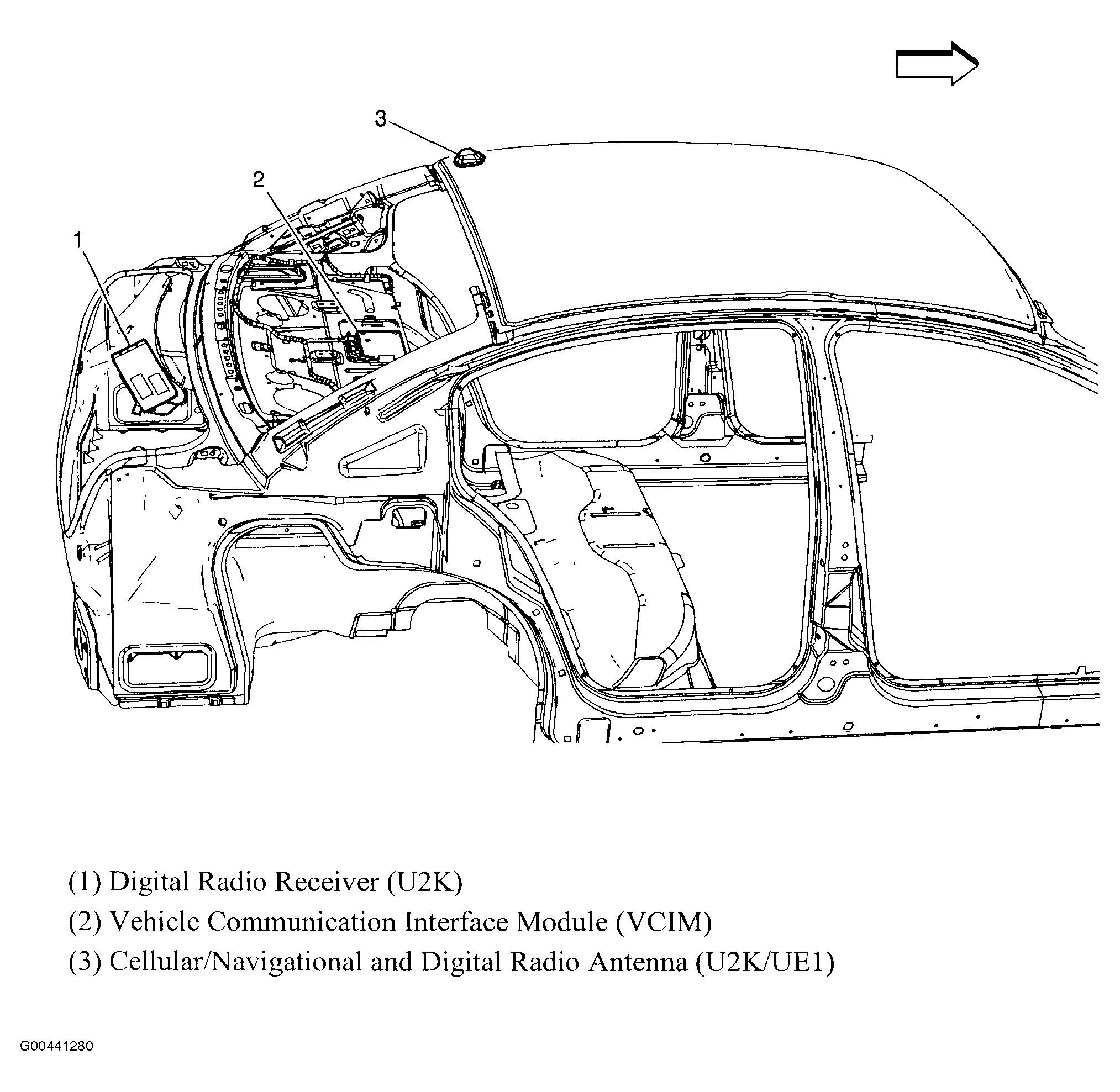

| Vehicle Communication Interface Module (VCIM) | At center of rear package shelf, between rear speakers. See Figure. |
