Installation Procedure

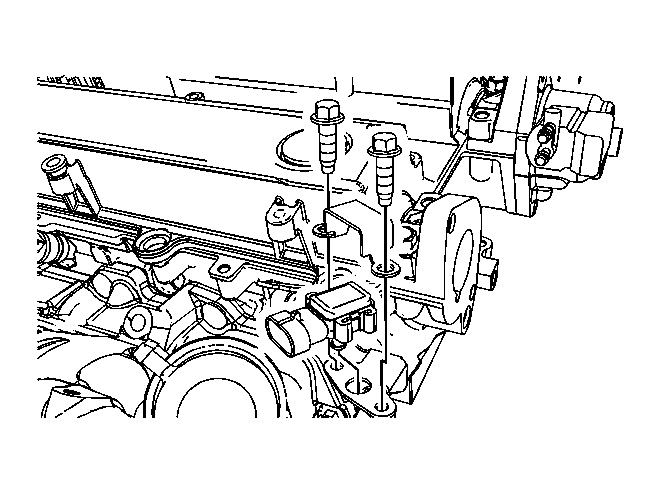

    Fig 1: Identifying BARO Sensor
    GM1686751Courtesy of GENERAL MOTORS CORP.
  1. Install the BARO sensor.
    2. NOTE: Refer to Fastener Notice .
  2. Install the BARO sensor bracket and bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the BARO sensor harness connector.
