Installation Procedure

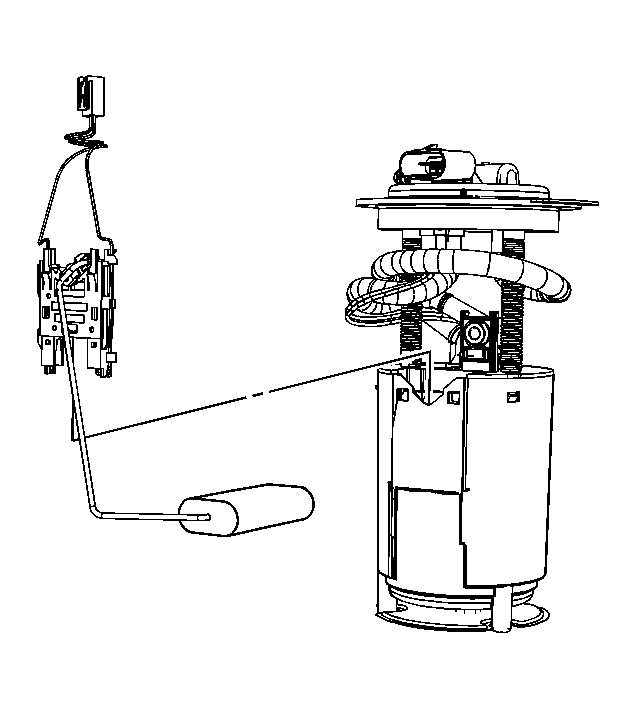

    Fig 1: View of fuel level sensor
    GM1743952Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel level sensor in and down into the module bucket.

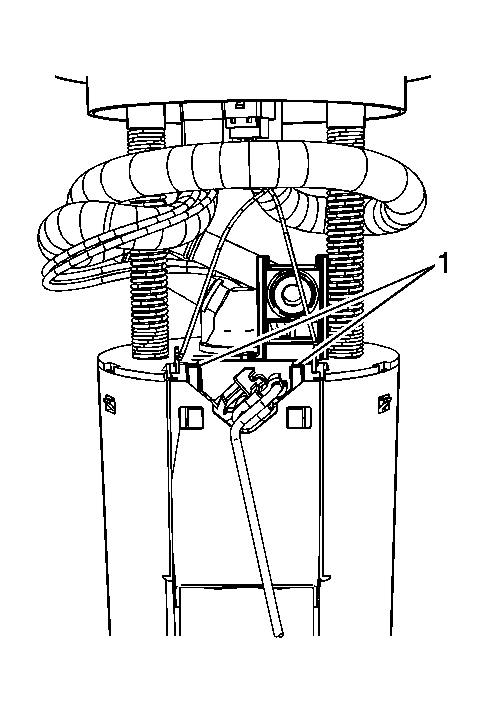

    2. Fig 2: View of fuel level sensor
    GM1743950Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the fuel level sensor retaining tabs (1) are fully engaged to the module bucket.

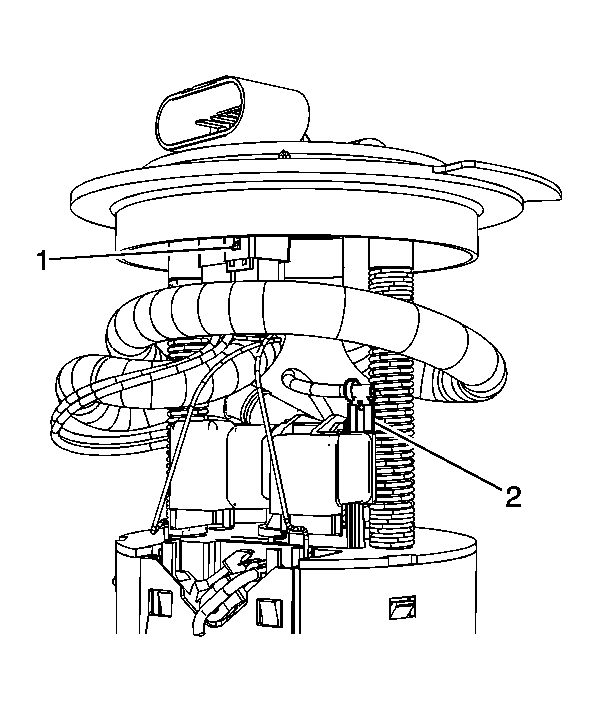

    3. Fig 3: View Of Fuel Level Sensor Electrical Connector Retainer
    GM1743948Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel pressure regulator part way.
  4. Install the fuel pressure regulator wire connector (2) to the fuel pressure regulator.
  5. Connect the fuel level sensor electrical connector to the module cover.
  6. Ensure that the fuel level sensor electrical connector retainer (1) is fully engaged.

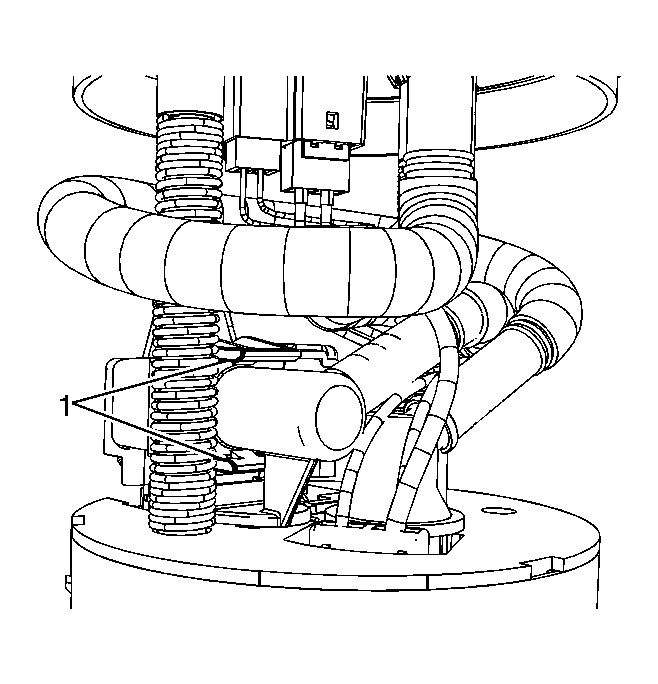

    7. Fig 4: View of fuel level sensor
    GM1743946Courtesy of GENERAL MOTORS CORP.
  7. Slide the fuel pressure regulator completely into the module.
  8. Ensure that the fuel pressure regulator retainers (1) fully engage the module.
  9. Install the fuel pump module. Refer to Fuel Pump Module Replacement .
