Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | In trunk, below rear shelf. See Figure. |
| Auxiliary Power Outlet - Front | At front of center console. See Figure. |
| Auxiliary Power Outlet - Rear | At rear of center console. See Figure. |
| Battery | At right side of trunk, next to spare tire. See Figure. |
| Blower Motor Resistor Assembly | Behind lower right side of dash, behind glove compartment. See Figure. |
| Cellular/Navigation Antenna | Left rear of roof. See Figure. |

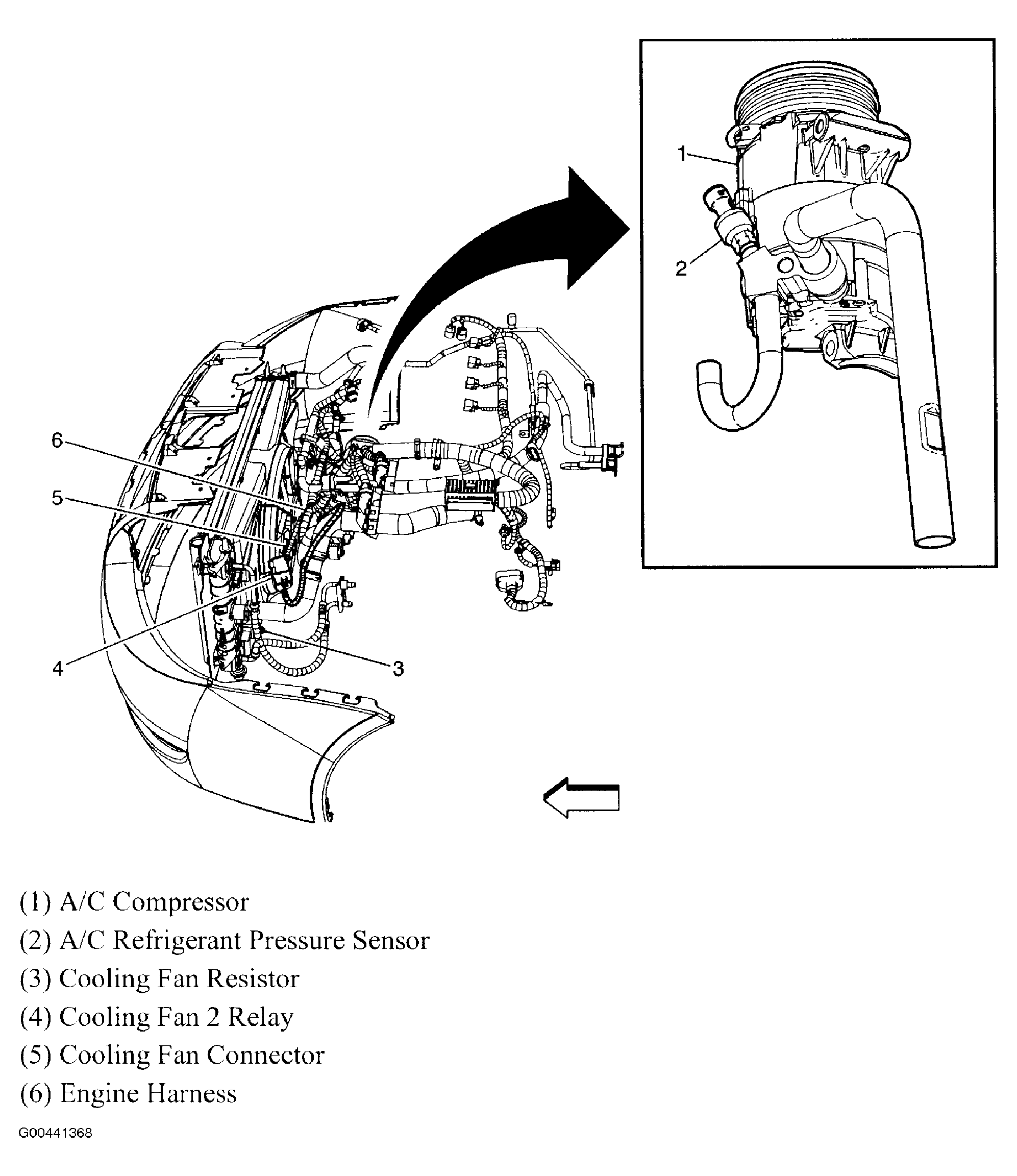

| Cooling Fan Resistor | Lower left front of engine compartment. See Figure. |
| Data Link Connector (DLC) | Under lower left side of dash. See Figure. |
| Digital Radio Antenna | Left rear of roof. See Figure. |
| Digital Radio Receiver | Behind left rear wheelwell. See Figure. |
| Generator | At left front of engine. See Figure. |
| Horn | At left front of vehicle. See Figure. |

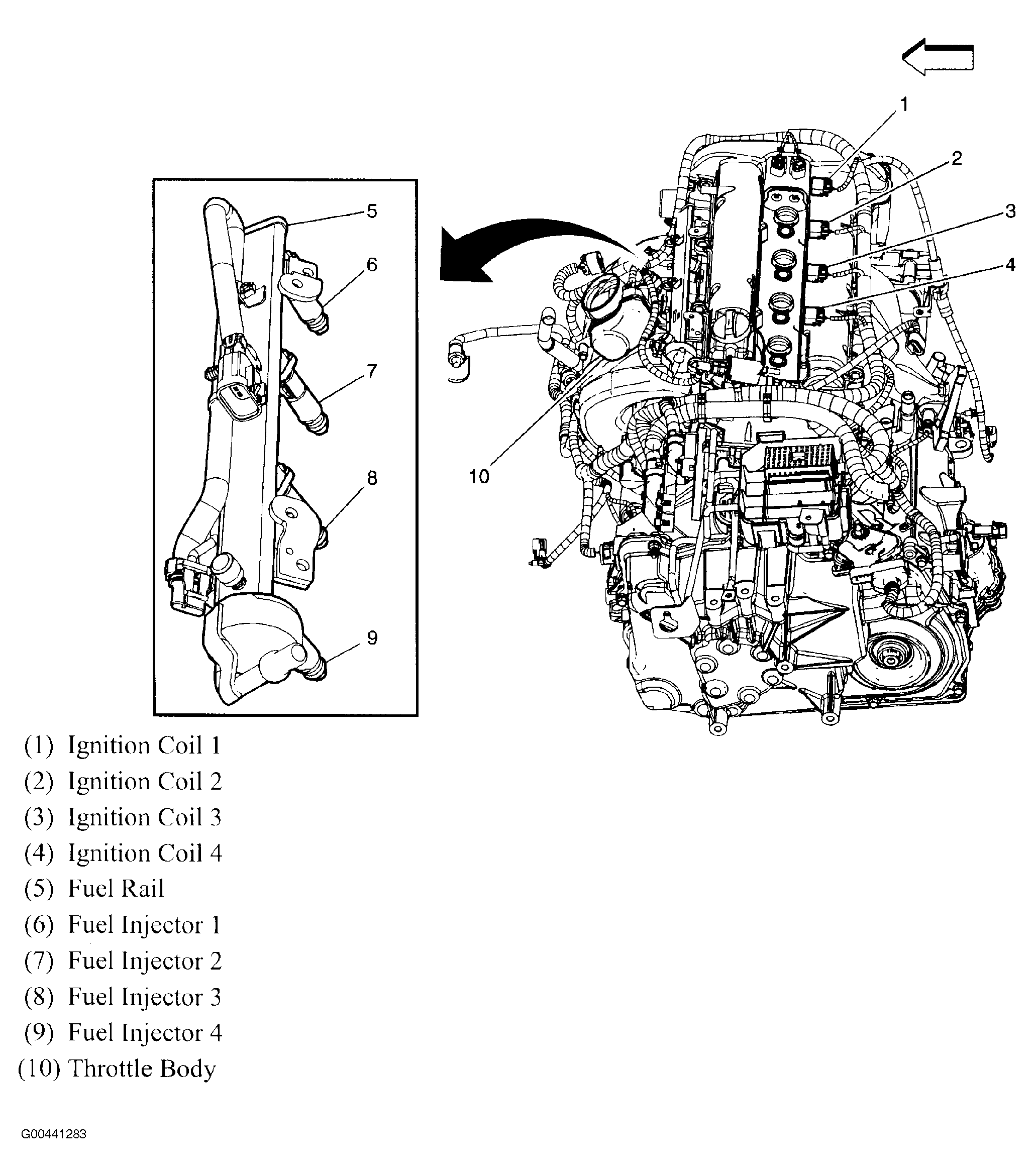

| Ignition Coils 1, 2, 3 & 4 (2.0L) | On top of engine, under cover. See Figure. |
| Ignition Coils 1, 2, 3 & 4 (2.2L) | On top of engine, under cover. See Figure. |
| Ignition Coils 1, 2, 3 & 4 (2.4L) | On top of engine, under cover. See Figure. |
| Inflatable Restraint Steering Wheel Module Coil | Behind steering wheel. See Figure. |
| OnStar Microphone | In inside rearview mirror. See Figure. |
| Seat Belt Pretensioner - LF (Coupe) | At left front side of passenger compartment, attached to roof rail. See Figure. |
| Seat Belt Pretensioner - LF (Sedan) | At base of left "B" pillar. See Figure. |
| Seat Belt Pretensioner - RF (Coupe) | At right front side of passenger compartment, attached to roof rail. See Figure. |
| Seat Belt Pretensioner - RF (Sedan) | At base of right "B" pillar. See Figure. |
| Throttle Body (2.0L) | Top left side of engine, below supercharger. See Figure. |
| Throttle Body (2.2L) | Top left side of engine. See Figure. |
| Throttle Body (2.4L) | Top left side of engine. See Figure. |
