Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Blower Motor | Behind lower right side of dash. See Figure. |
| Cooling Fan 1 (2.0L) | Attached to left side of radiator. See Figure. |
| Cooling Fan (2.2L/2.4L) | At front of engine compartment, attached to radiator. See Figure. |
| Cooling Fan 2 (2.0L) | Attached to right side of radiator. See Figure. |
| Door Latch - Driver | In rear of driver's door. See Figure. |

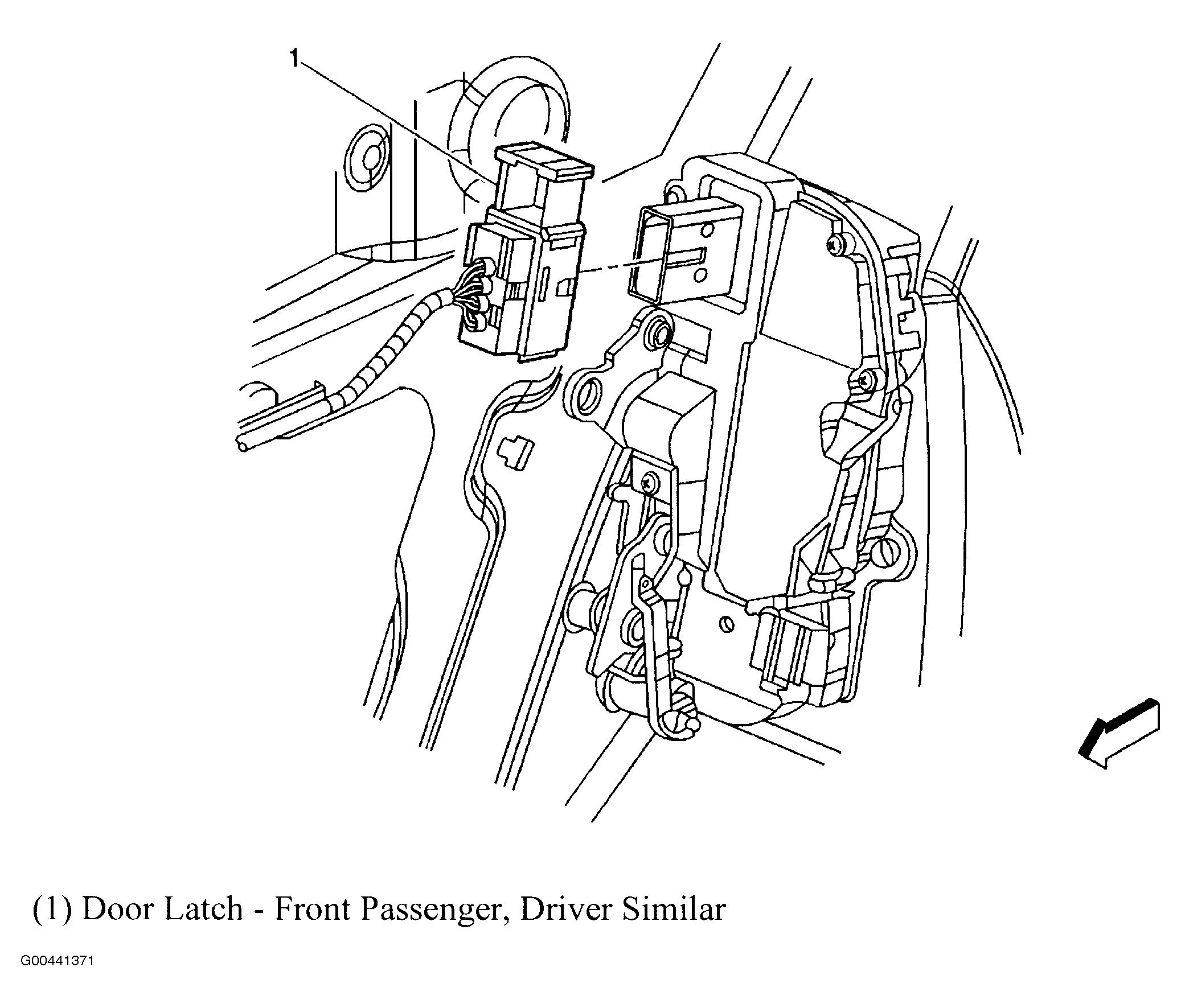

| Door Latch - Front Passenger | In rear of front passenger's door. See Figure. |
| Door Latch - LR | Top rear of left rear door. See Figure. |
| Door Latch - RR | Top rear of right rear door. See Figure. |

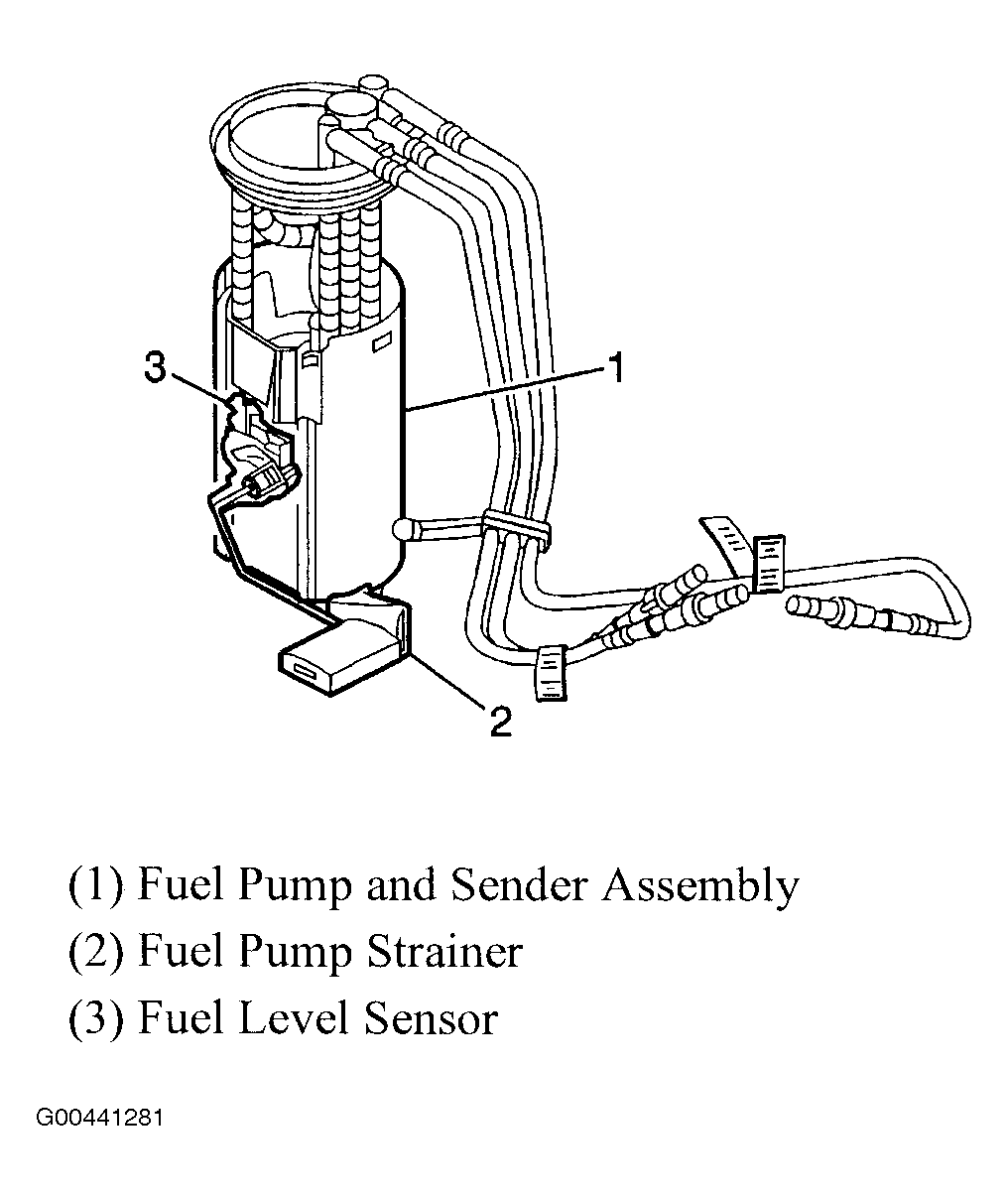

| Fuel Pump & Sender Assembly | Inside fuel tank. See Figure. |
| Outside Rearview Mirror - Driver | Front outside of driver door. |
| Outside Rearview Mirror - Passenger | Front outside of right front door. |
| Rear Compartment Lid Latch | In rear compartment lid. See Figure. |
| Recirculation Actuator | Behind lower right side of dash, near "A" pillar. See Figure. |

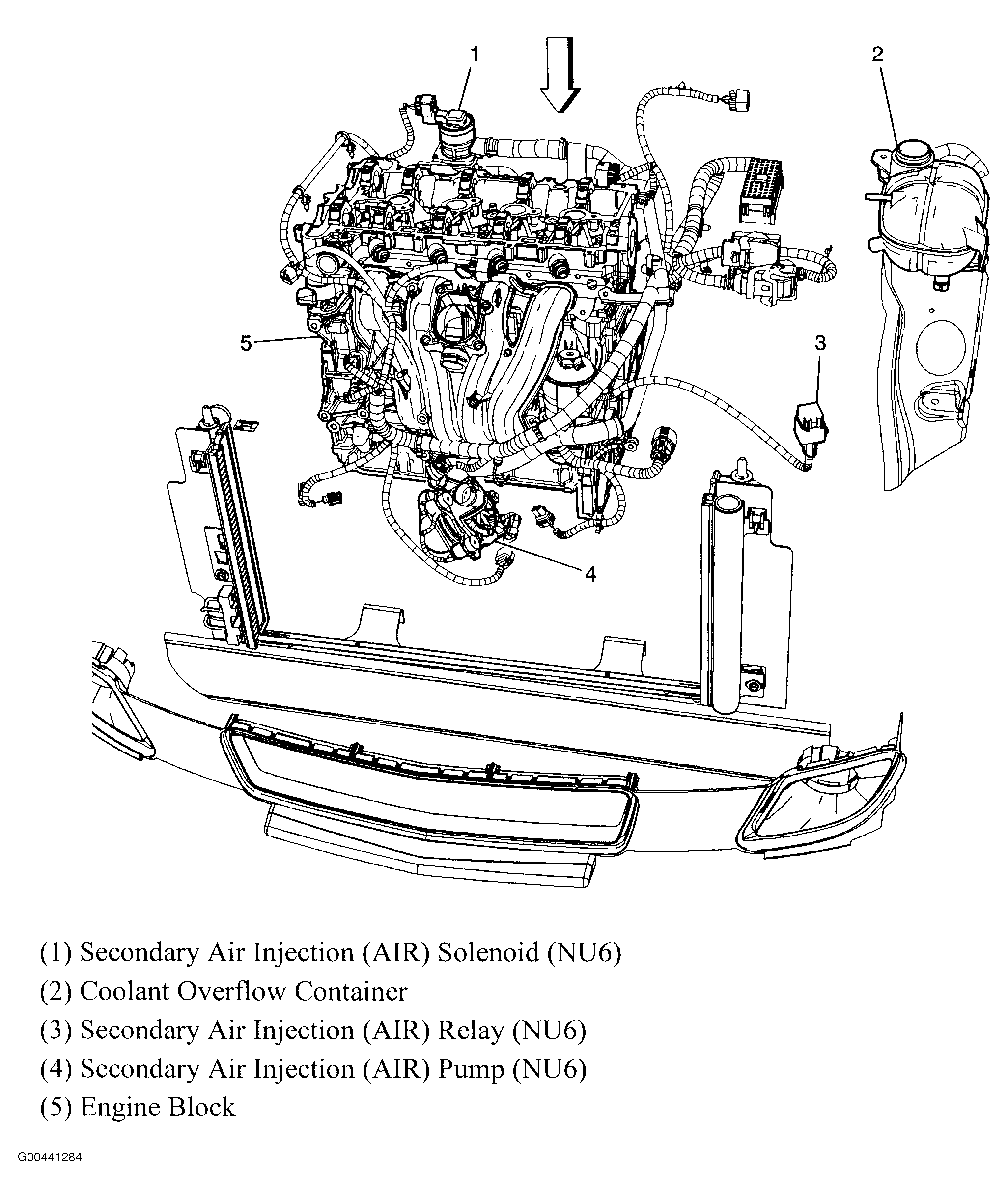

| Secondary Air Injection (AIR) Pump | Left side of engine. See Figure. |

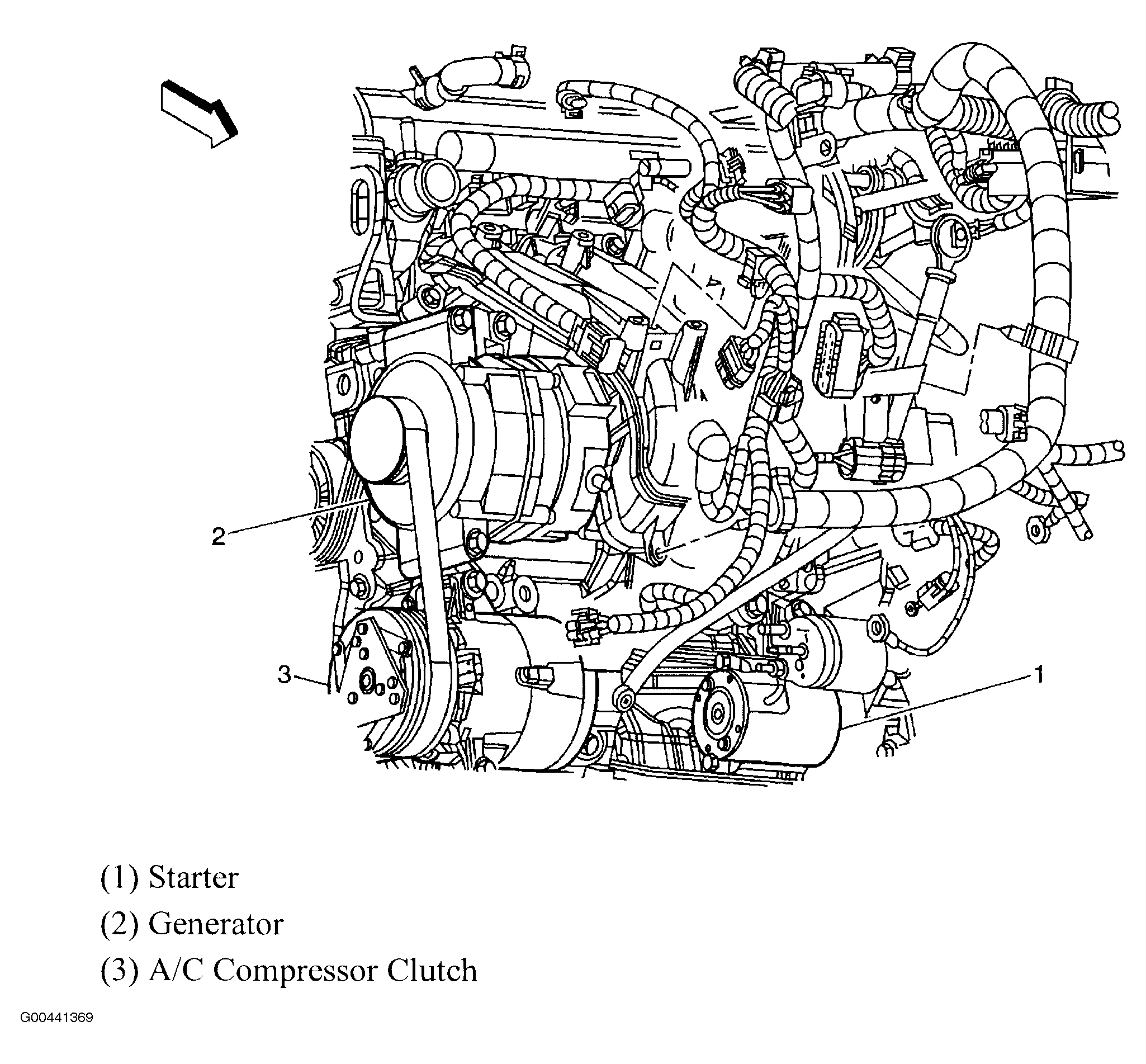

| Starter (2.0L) | At lower left rear of engine. See Figure. |
| Starter (2.2L) | At lower left rear of engine. See Figure. |
| Starter (2.4L) | Lower left rear of engine. See Figure. |
| Sunroof Motor | Front of sunroof assembly. See Figure. |
| Supercharger Intercooler Coolant Pump | Bottom front of engine, near starter. See Figure. |
| Window Motor - LF | In driver door. See Figure. |
| Window Motor - LR | In left rear door. See Figure. |
| Window Motor - RF | In right front door. See Figure. |
| Window Motor - RR | In right rear door. See Figure. |
| Windshield Washer Fluid Pump | On bottom of washer fluid reservoir. See Figure. |
| Windshield Wiper Motor Assembly | At left rear side of engine compartment. See Figure. |
