Installation Procedure

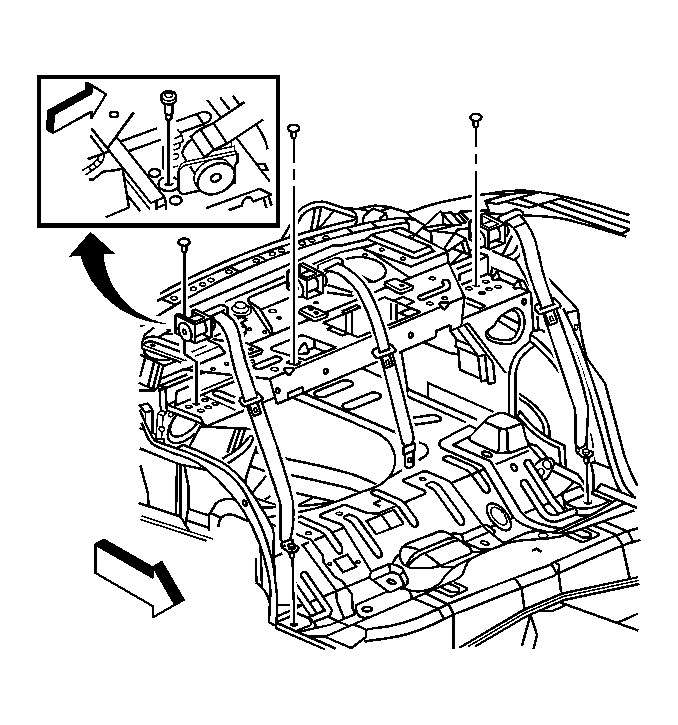

    Fig 1: View Of Rear Seat Belt Anchor Bolts
    GM876579Courtesy of GENERAL MOTORS CORP.
  1. Install the rear seat belt retractor to the rear shelf.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the rear seat belt retractor bolt (1).

    Tighten:  Tighten the bolt to 45 N.m (33 lb ft).

  3. Install the rear window panel trim. Refer to Trim Panel Replacement - Rear Window Shelf .
  4. Check the rear seat retractor belt for proper operation.
