Power Steering Control Module (PSCM) C2

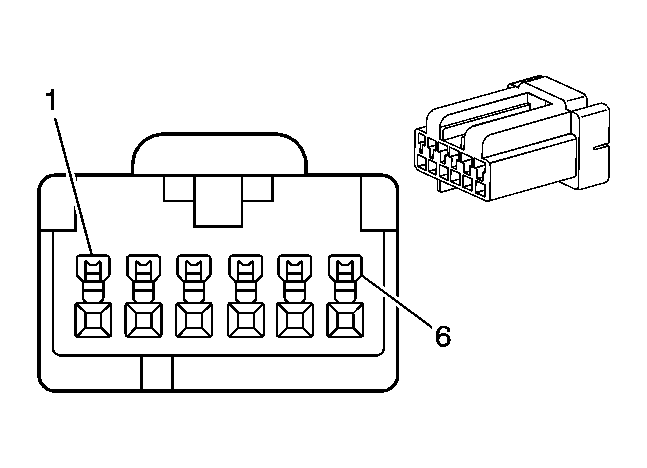

Fig 1: Power Steering Control Module (PSCM) C2 Connector End View
GM872598Courtesy of GENERAL MOTORS CORP.
Power Steering Control Module (PSCM) C2 Connector & Terminal Parts Information

Connector Part Information
  • OEM: 776195-6
  • Service: 88988409
  • Description: 6-Way F (GY)
Terminal Part Information
  • Pins: 4-6
  • Terminal/Tray: 173681-2/17
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
Power Steering Control Module (PSCM) C2 Terminal Identification

Pin Wire Color Circuit No. Function
1-3 - - Not Used
4 PU 1807 Class 2 Serial Data
5 PU 1807 Class 2 Serial Data
6 PK 1539 Ignition 1 Voltage
