DTC C0896: Notes

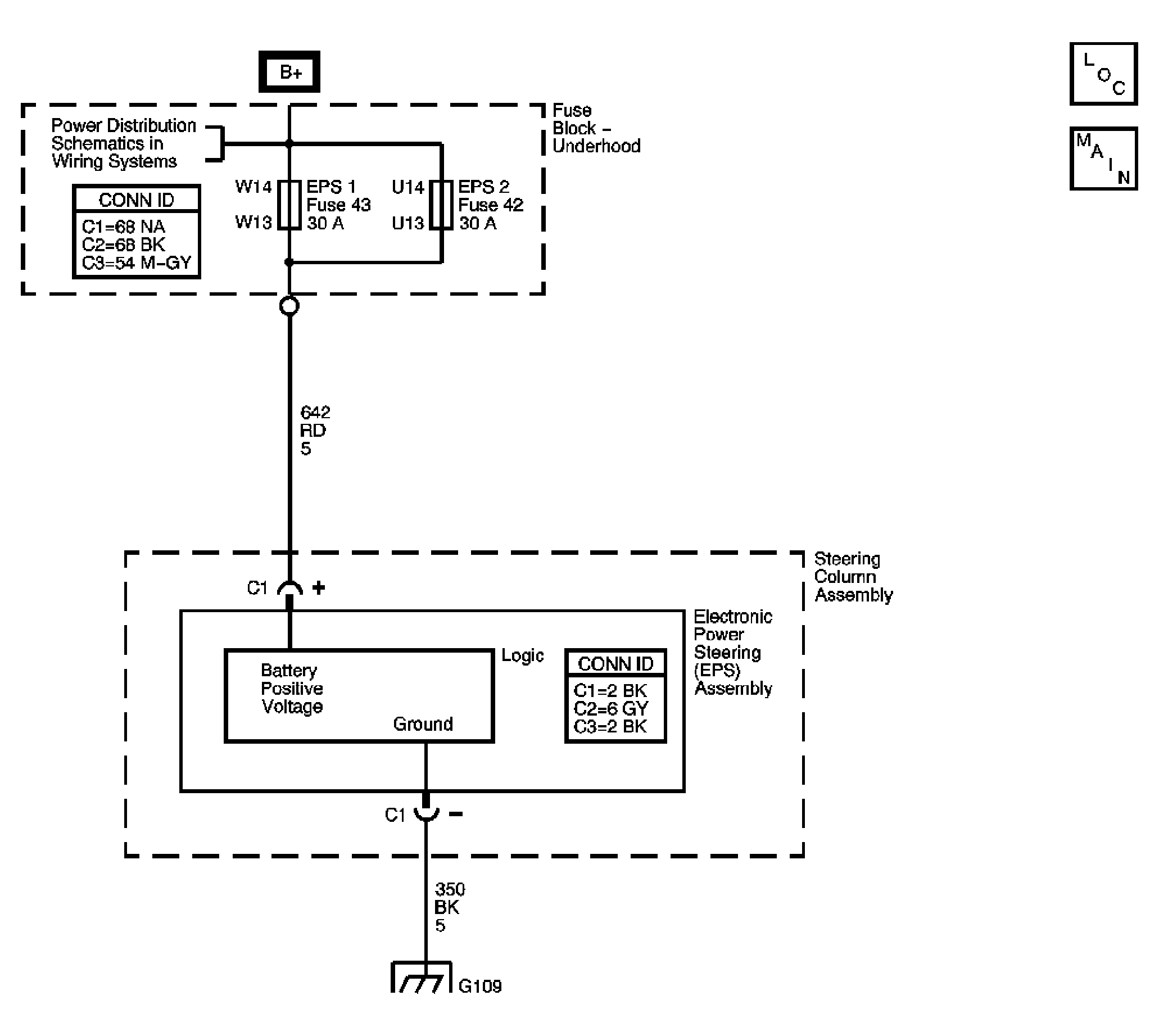

Fig 1: Electronic Power Steering Power Supply Circuit Schematic

GM879525

Courtesy of GENERAL MOTORS CORP.
