Installation Procedure

  1. Install the steering gear to the frame through the LH wheel opening.
  2. Install the rear transmission mount. Refer to Transmission Rear Mount Replacement .

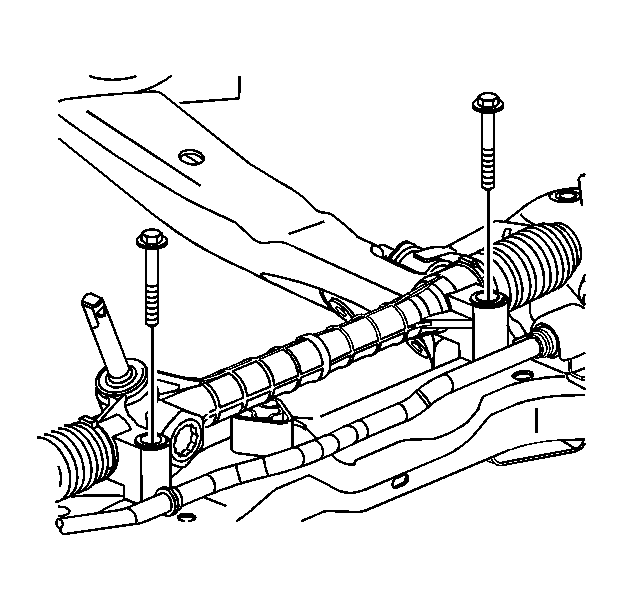

    3. Fig 1: View Of Steering Gear Bolts
    GM851710Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the steering gear bolts.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

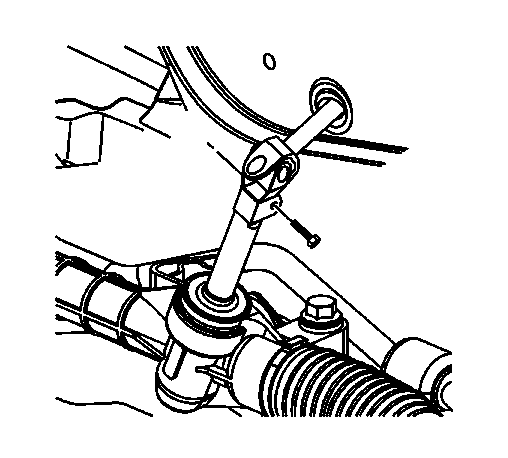

    4. Fig 2: View Of Intermediate Shaft-To-Steering Gear Pinch Bolt
    GM851655Courtesy of GENERAL MOTORS CORP.
  4. Connect the intermediate shaft to the steering gear.
  5. Install a new intermediate shaft pinch bolt.

    Tighten:  Tighten the bolts to 34 N.m (25 lb ft).

    6. Fig 3: View Of Tie Rod End To Steering Knuckle
    GM854972Courtesy of GENERAL MOTORS CORP.
  6. Install the outer tie rods to the steering knuckles.
  7. Install new outer tie rod nuts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft) plus 90 degrees.

  8. Install the front wheels. Refer to Tire and Wheel Removal and Installation (4 Lug Wheel) or Tire and Wheel Removal and Installation (5 Lug Wheel) .
  9. Lower the vehicle.
  10. Remove the strap from the steering wheel.
  11. Adjust the toe if necessary. Refer to Front Toe Adjustment .
