Air Bag Control Module

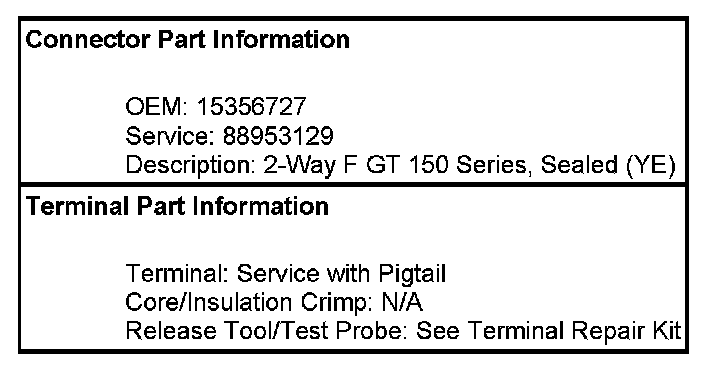

SIR Connector End Views

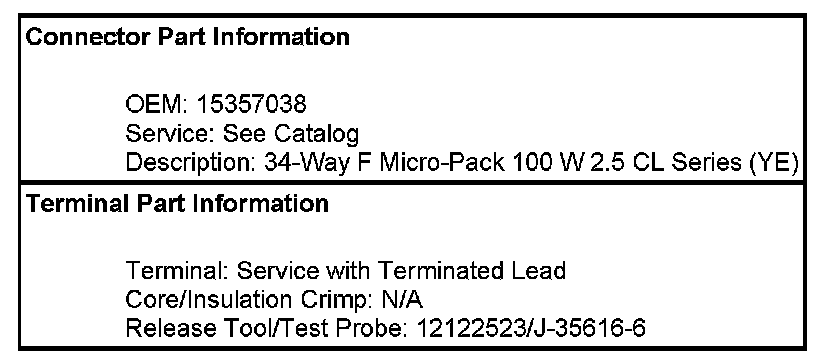

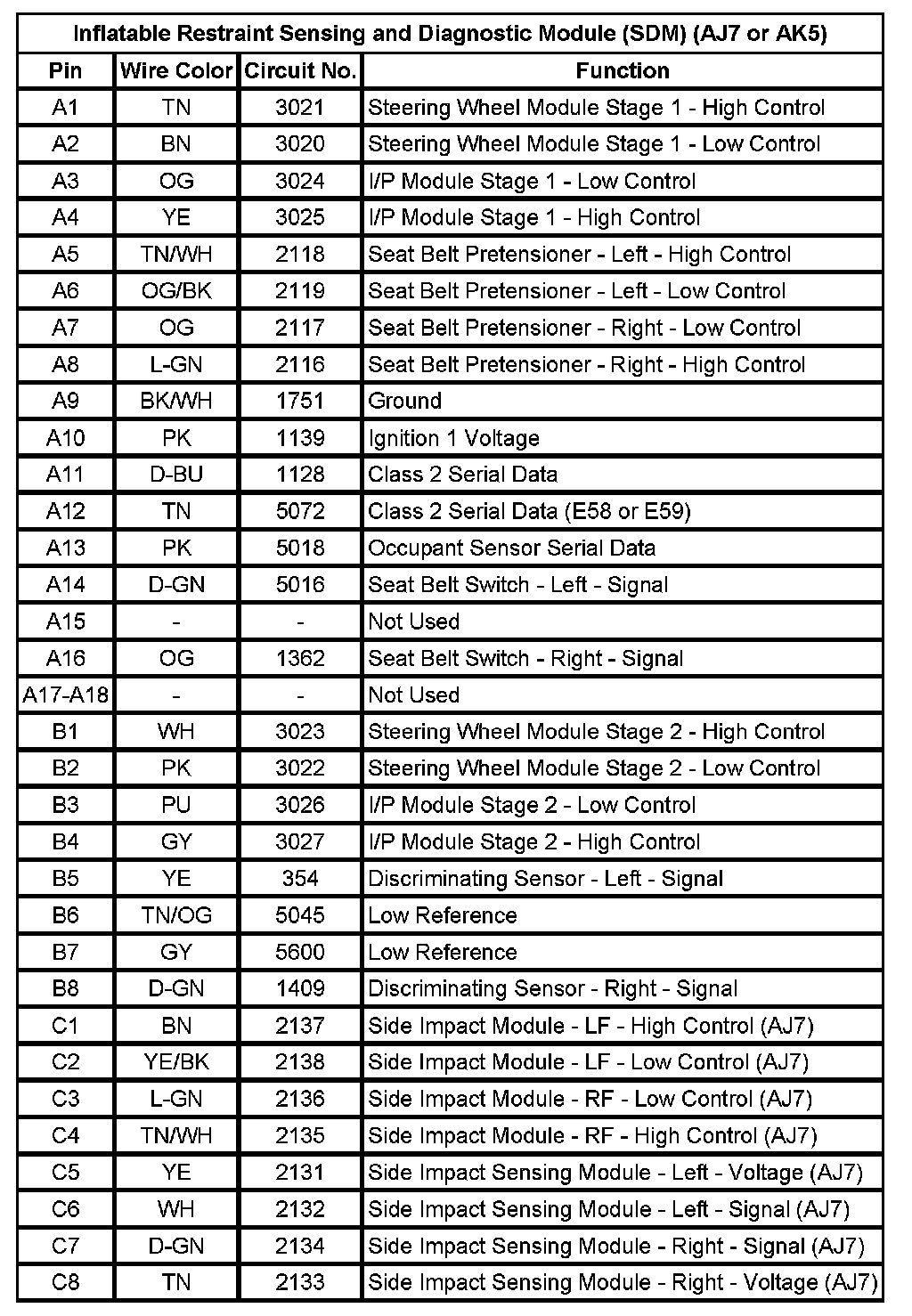

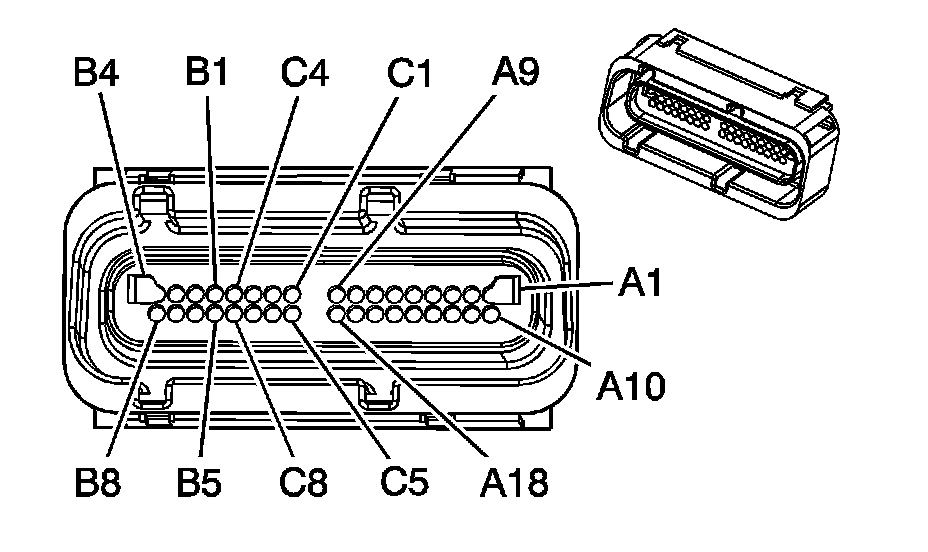

Inflatable Restraint Sensing and Diagnostic Module (SDM) (AJ7 or AK5)

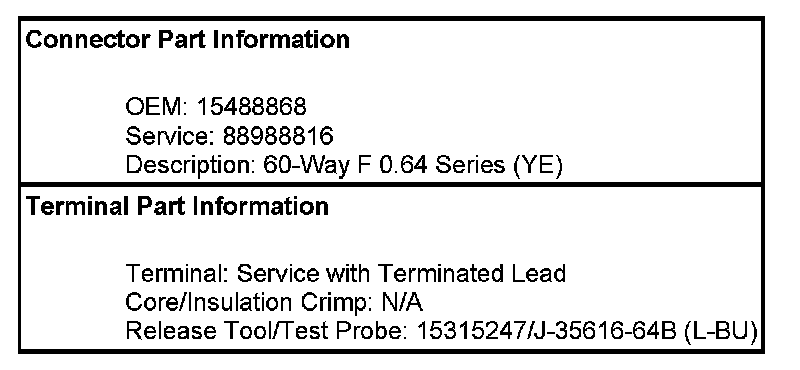

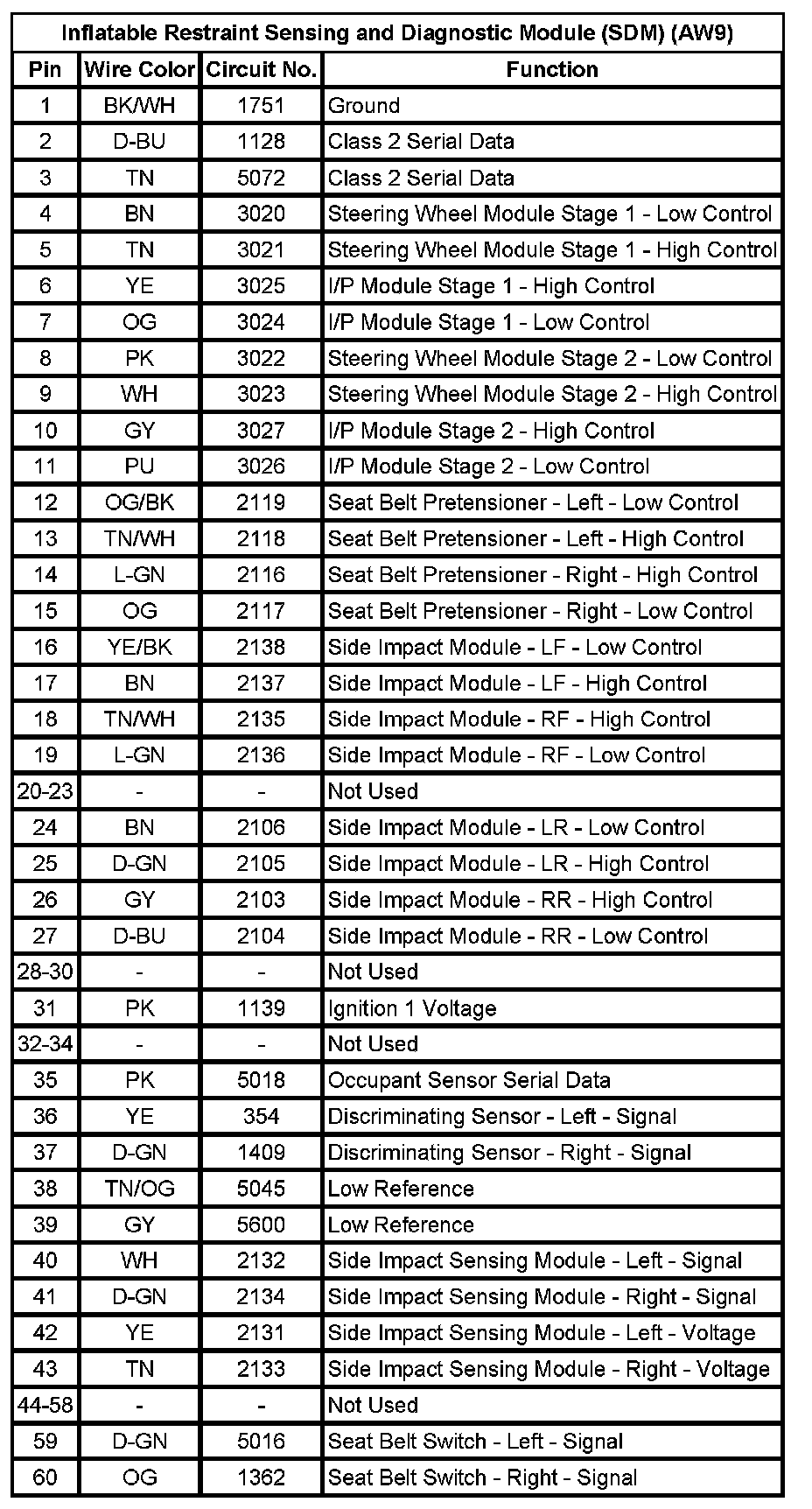

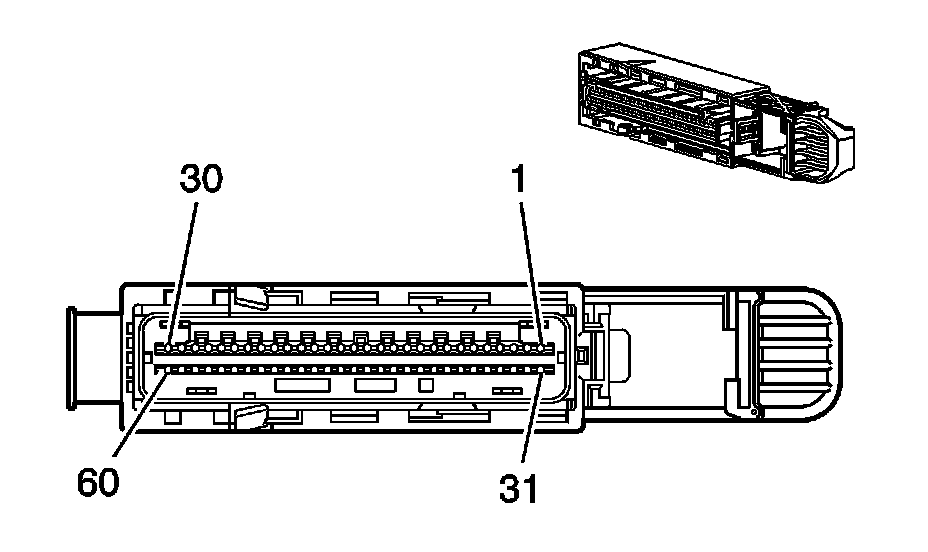

Inflatable Restraint Sensing and Diagnostic Module (SDM) (AW9)

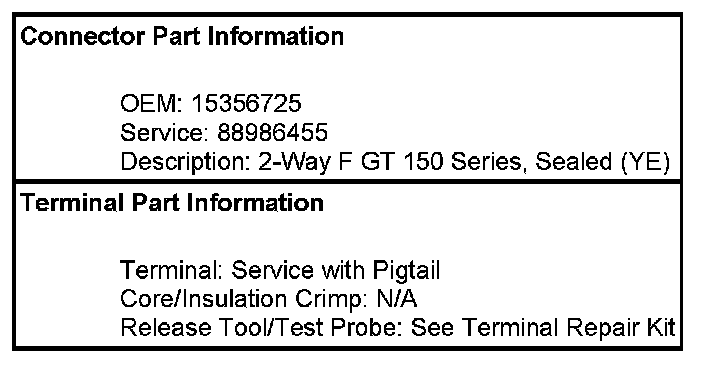

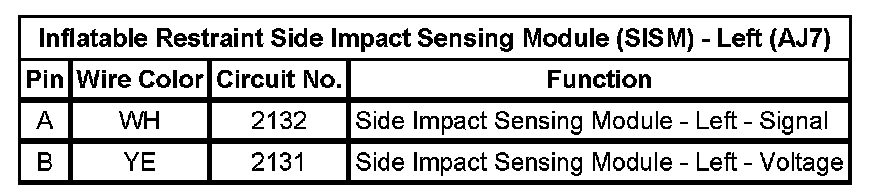

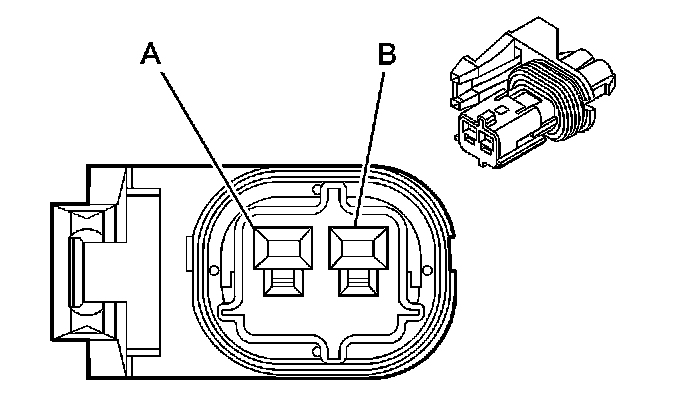

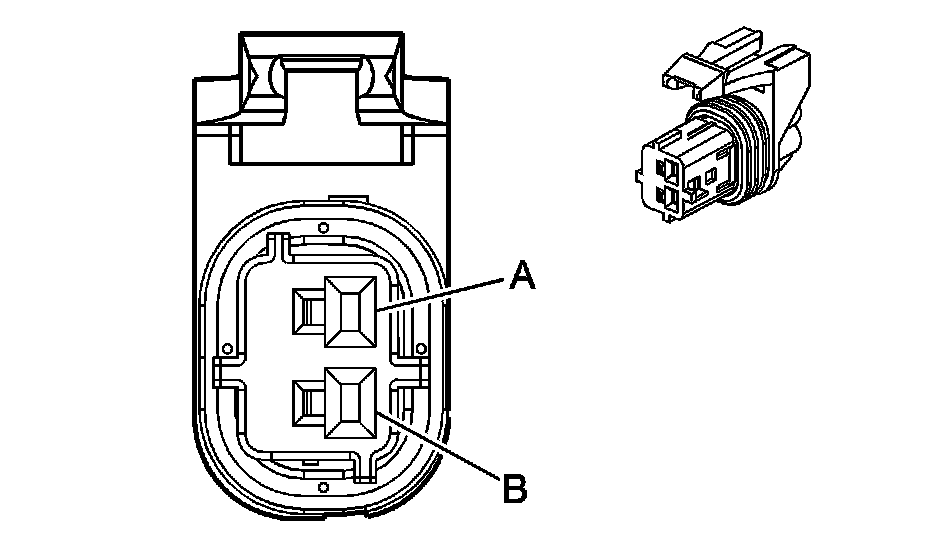

Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AJ7)

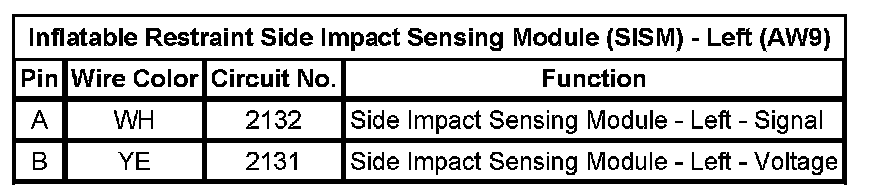

Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AW9)

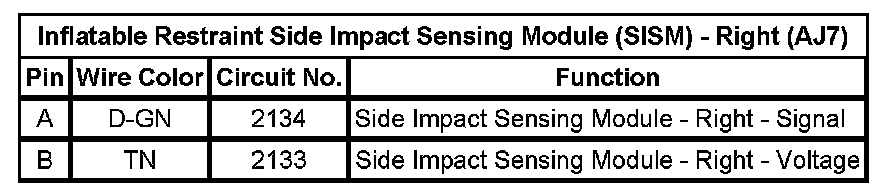

Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AJ7)

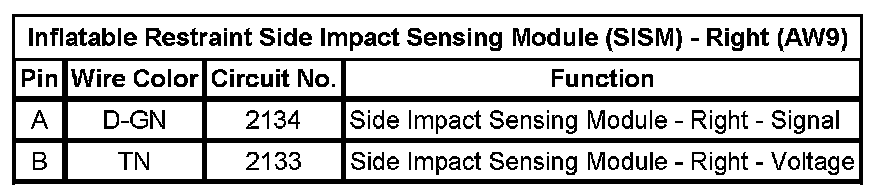

Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AW9)
