Saturn
>>
2007
>>
RELAY AWD V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock Relay
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

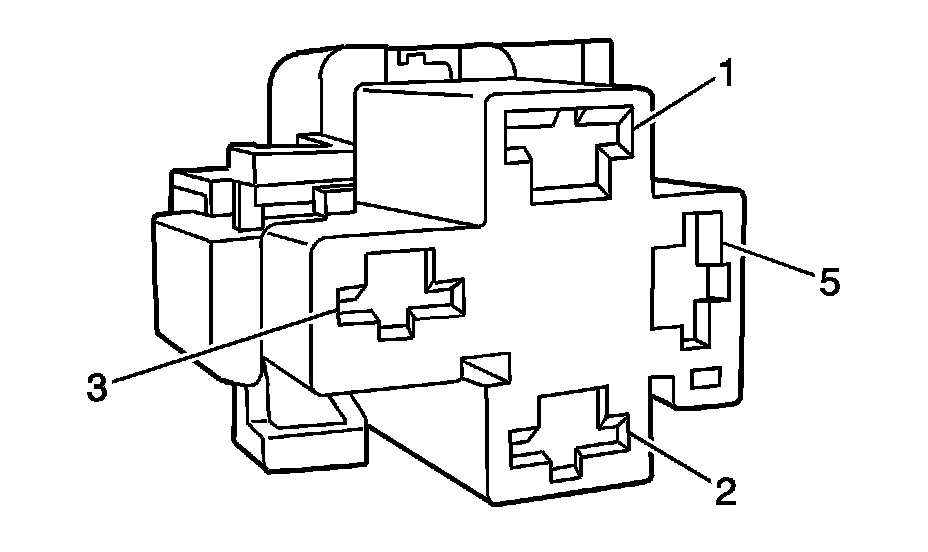

Shift Interlock Relay
Power Seat Connector End Views

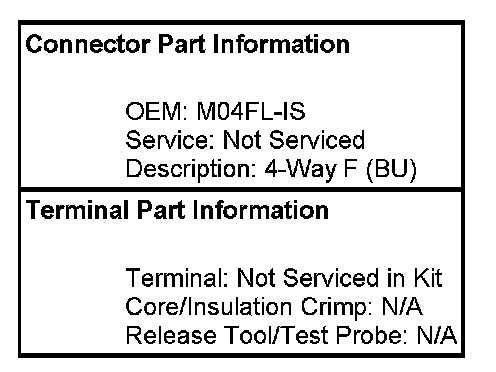

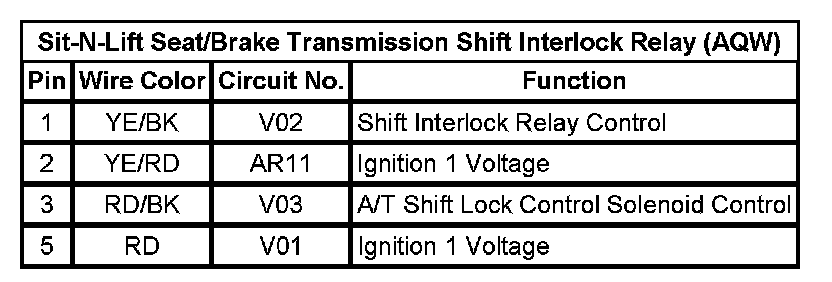

Sit-N-Lift Seat/Brake Transmission Shift Interlock Relay (AQW)
