Central Control Module



Entertainment/Communication Connector End Views

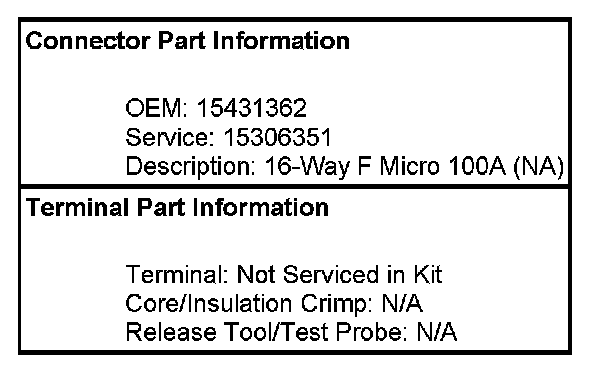

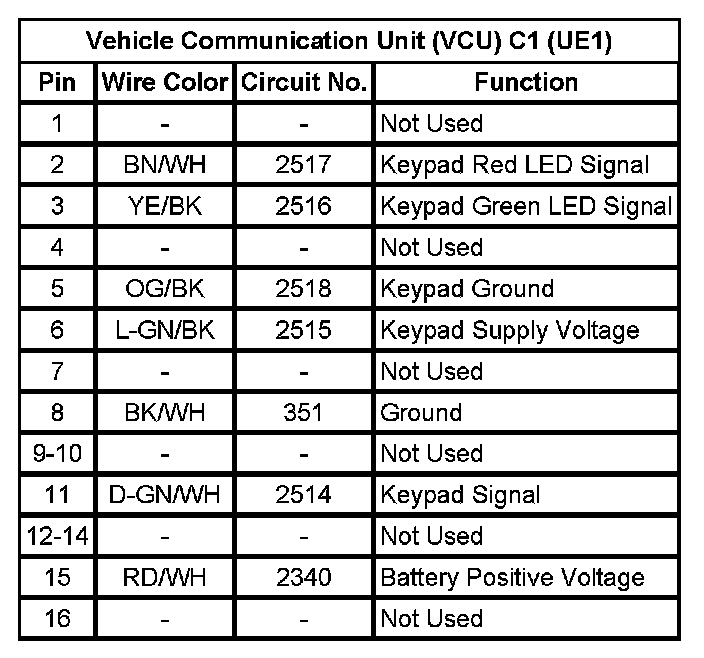

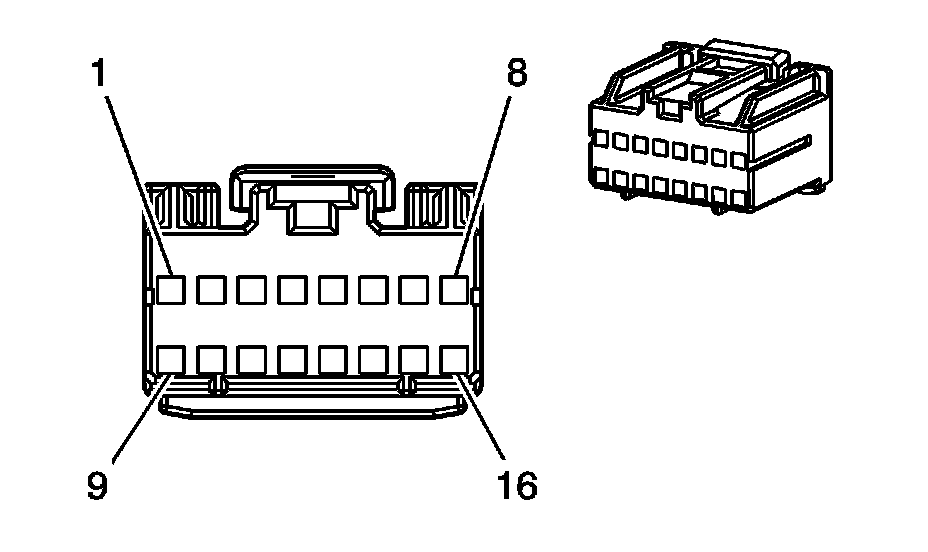

Vehicle Communication Unit (VCU) C1 (UE1)

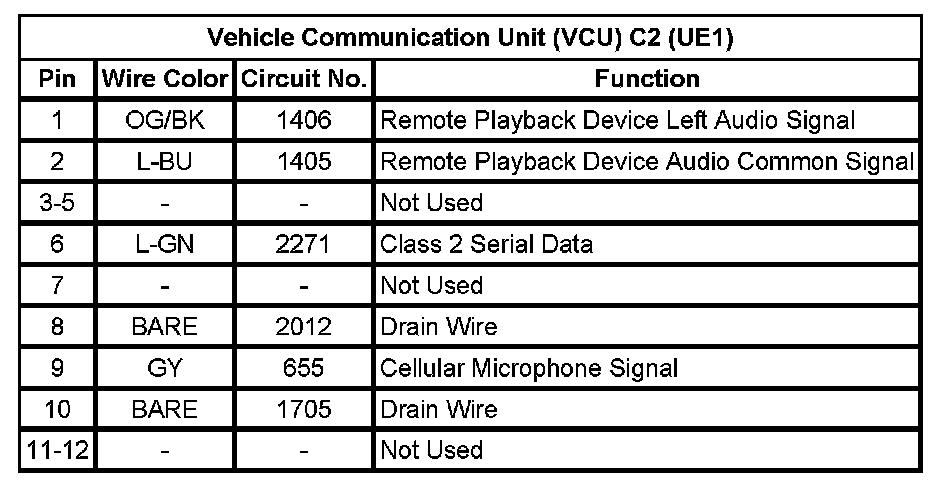

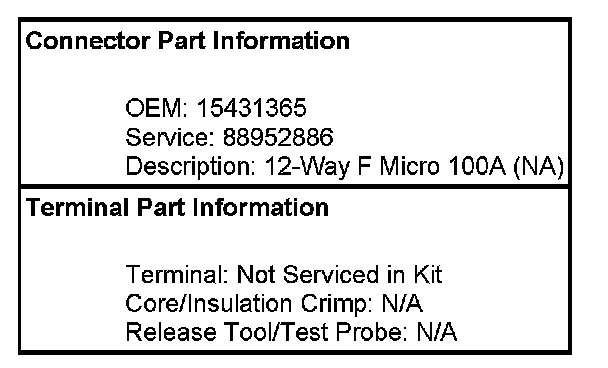

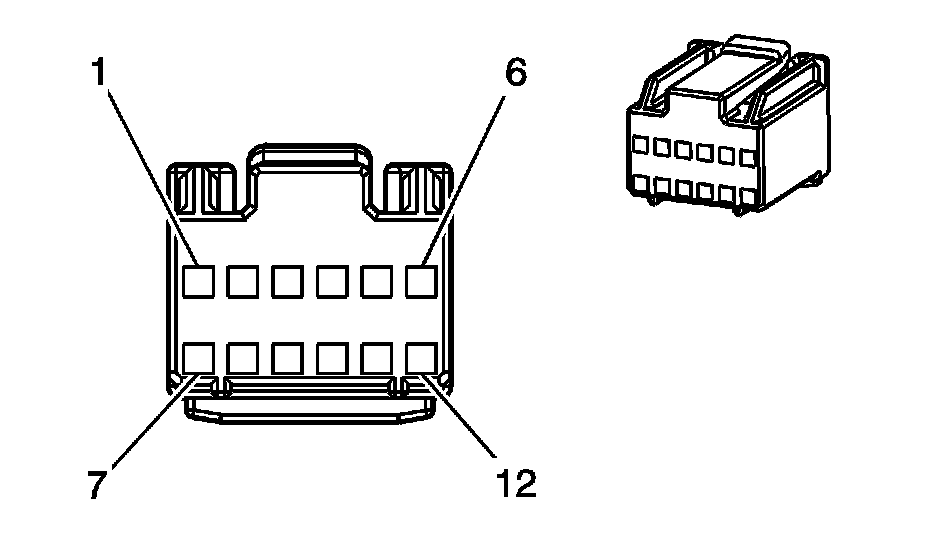

Vehicle Communication Unit (VCU) C2 (UE1)
