Door Module

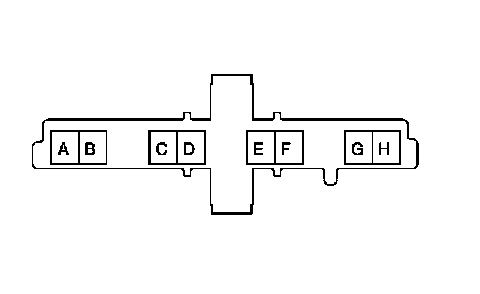

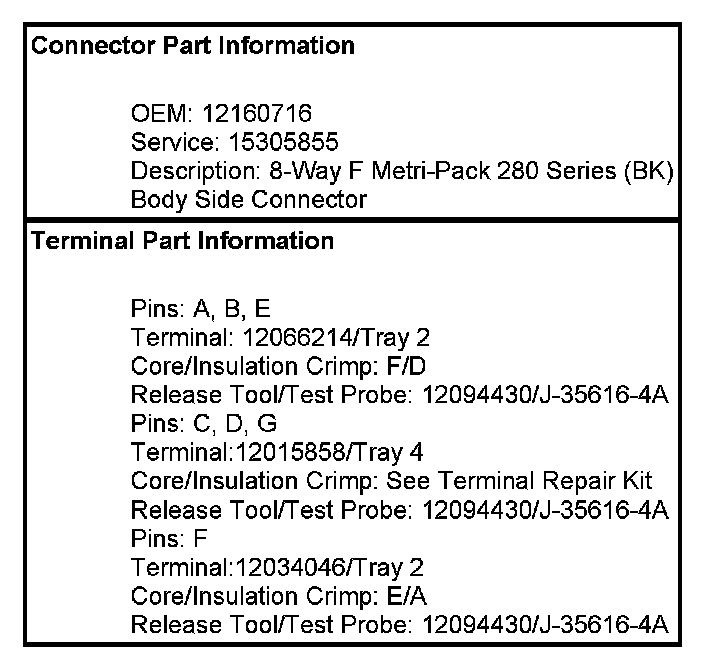

Vehicle Access Connector End Views

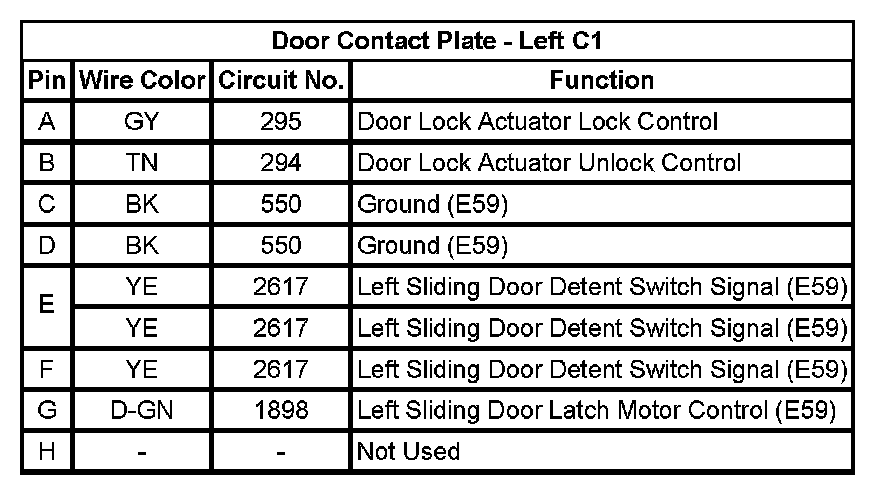

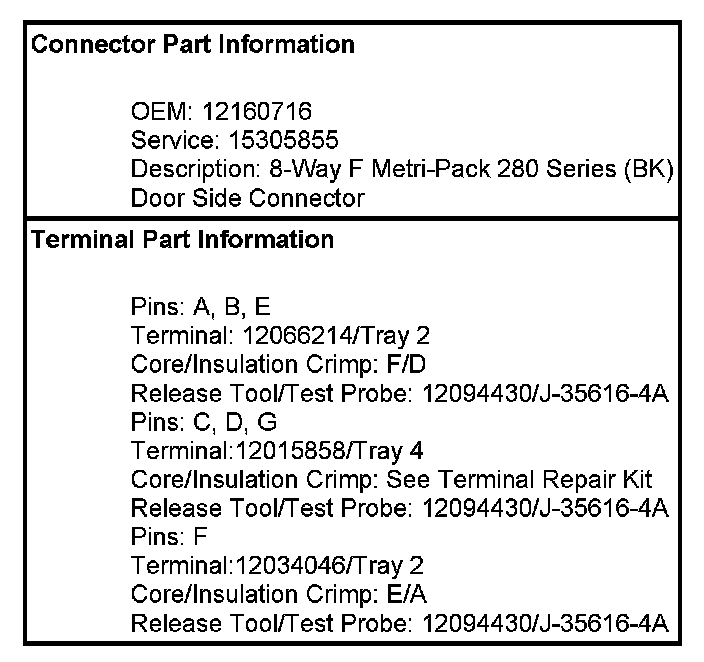

Door Contact Plate - Left C1

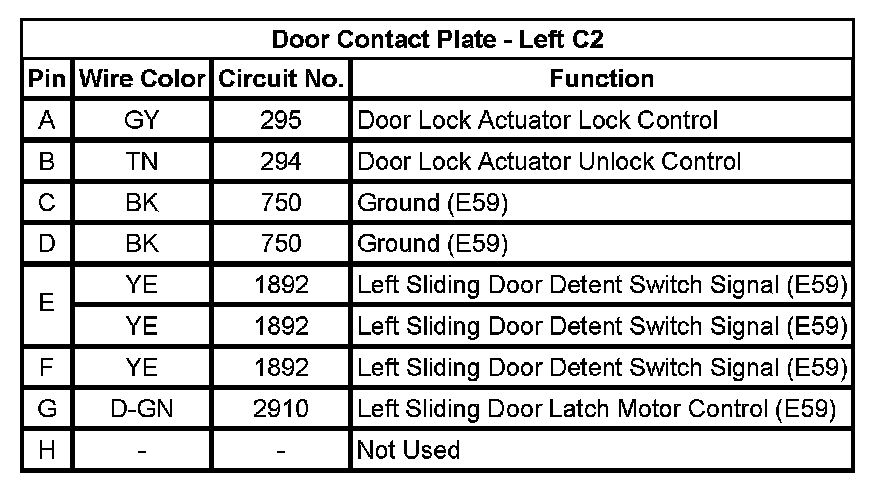

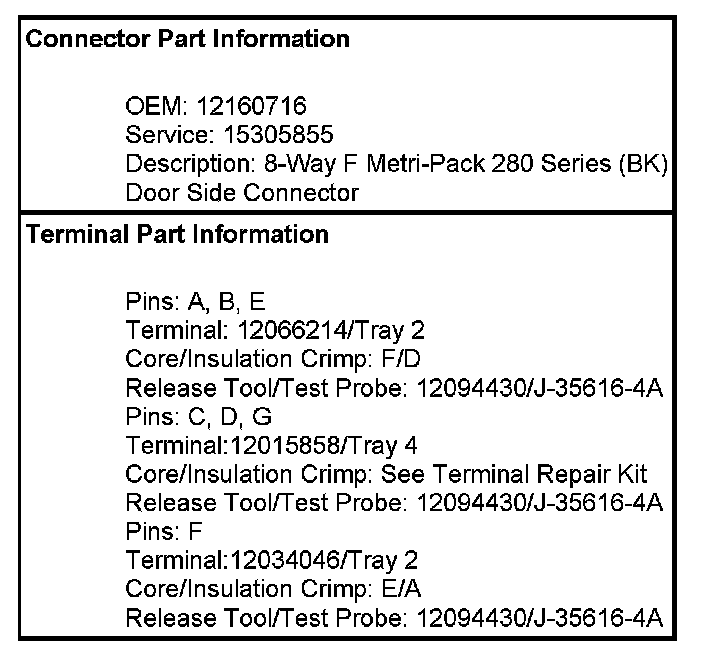

Door Contact Plate - Left C2

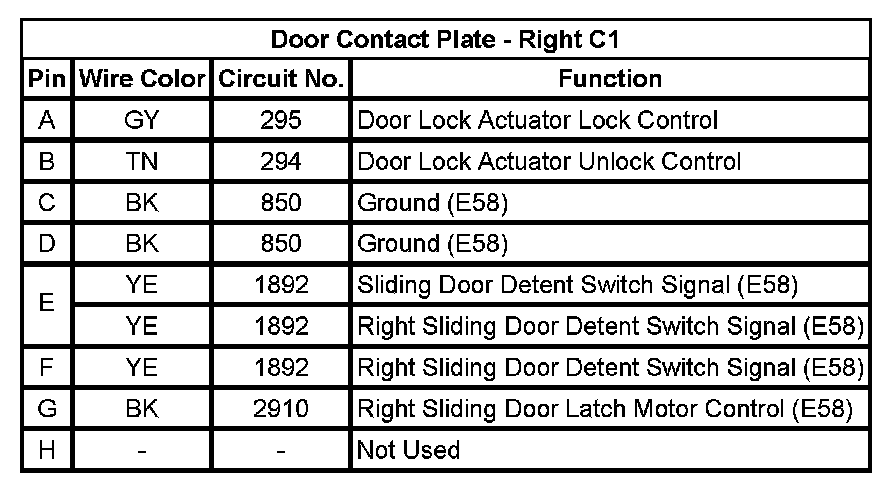

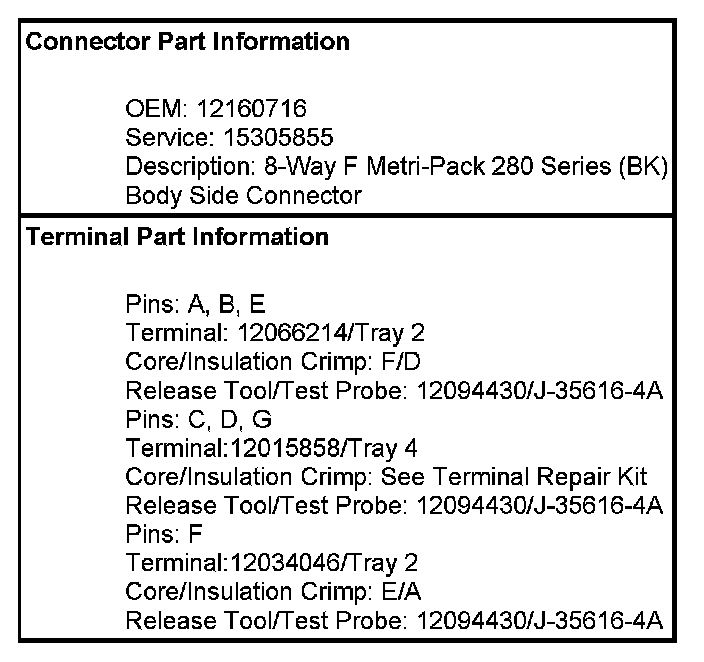

Door Contact Plate - Right C1

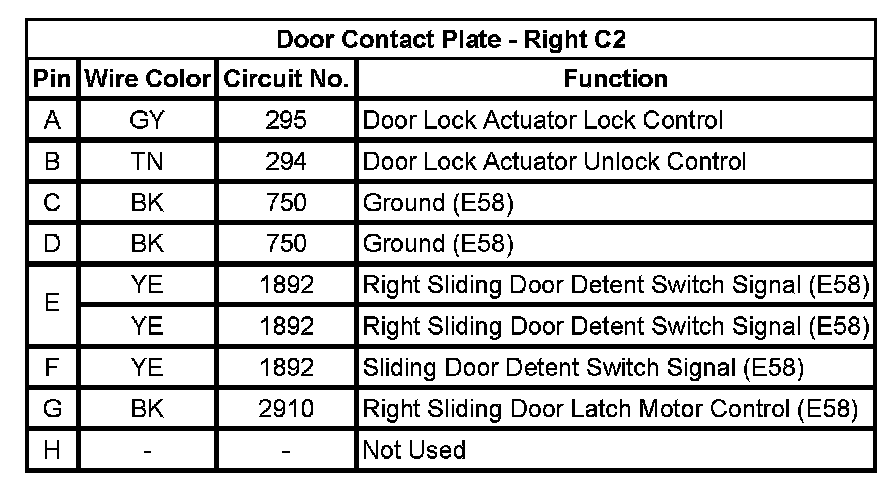

Door Contact Plate - Right C2
