I/P Fuse Block

Electrical Center Identification Views

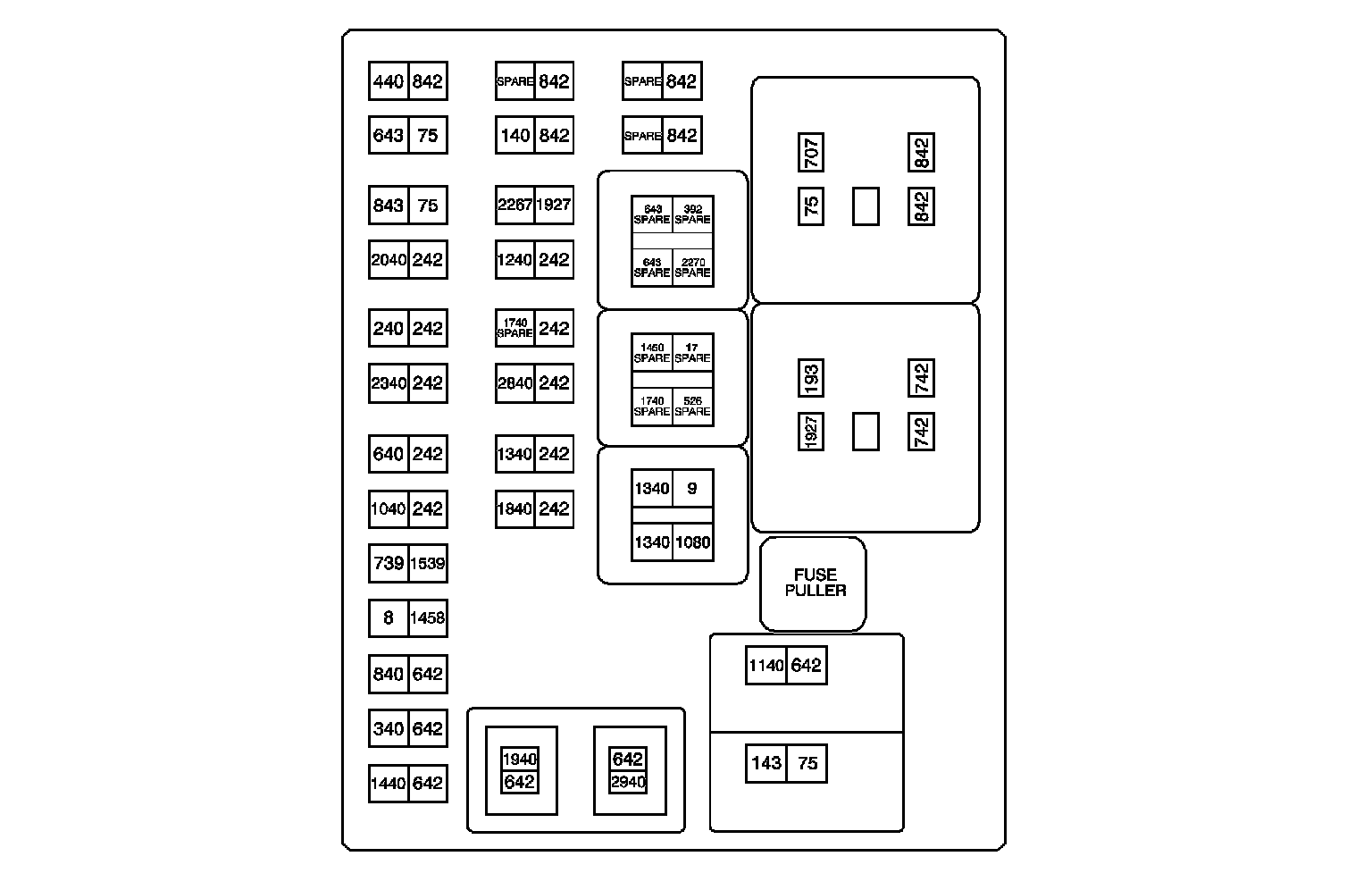

Fuse Block - I/P Top View

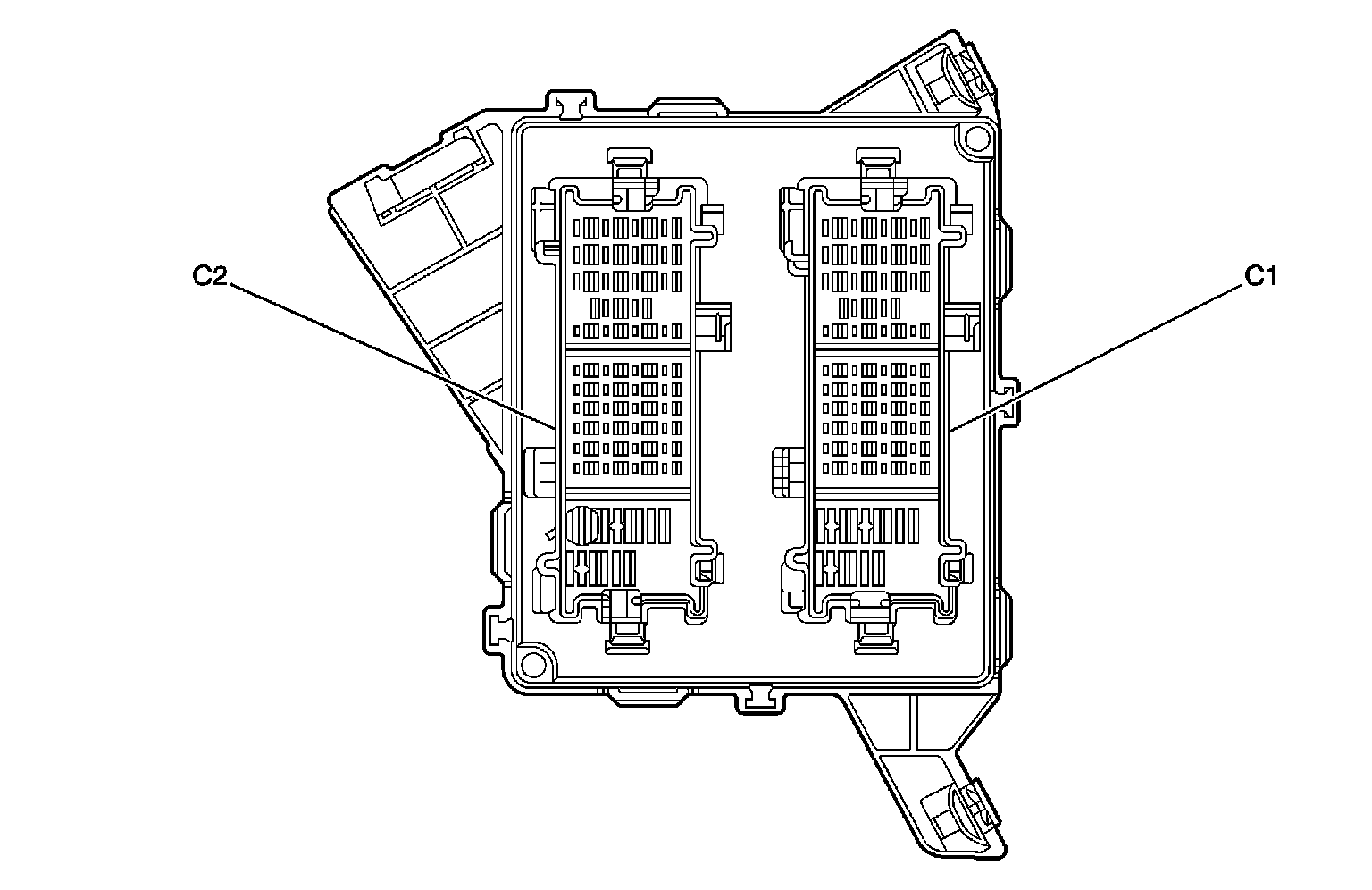

Fuse Block - I/P Bottom View

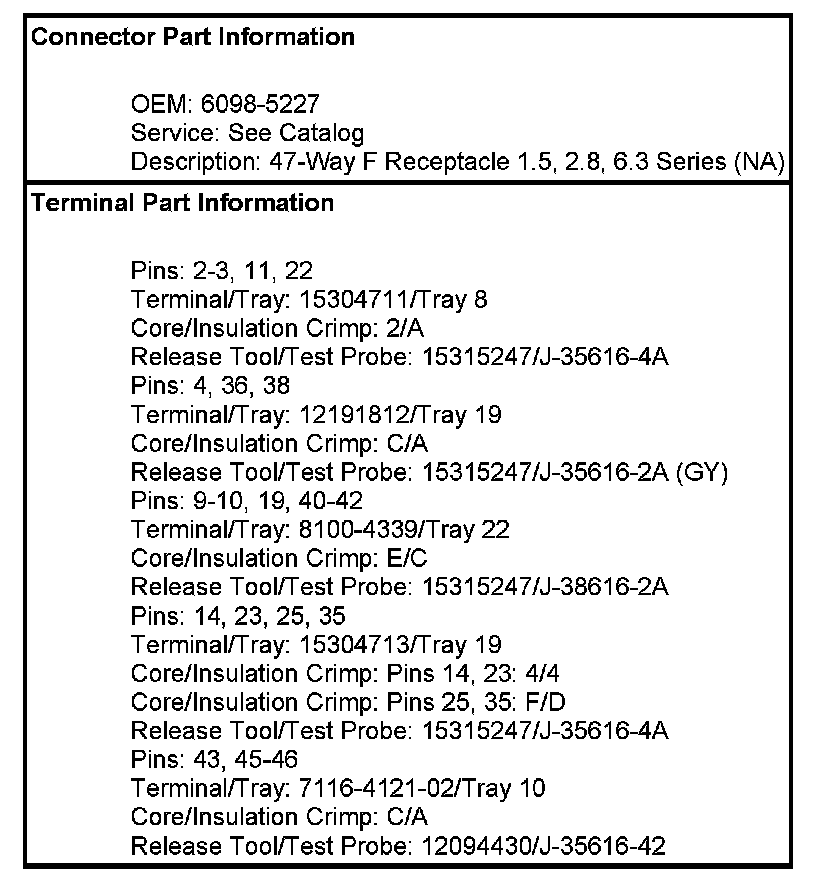

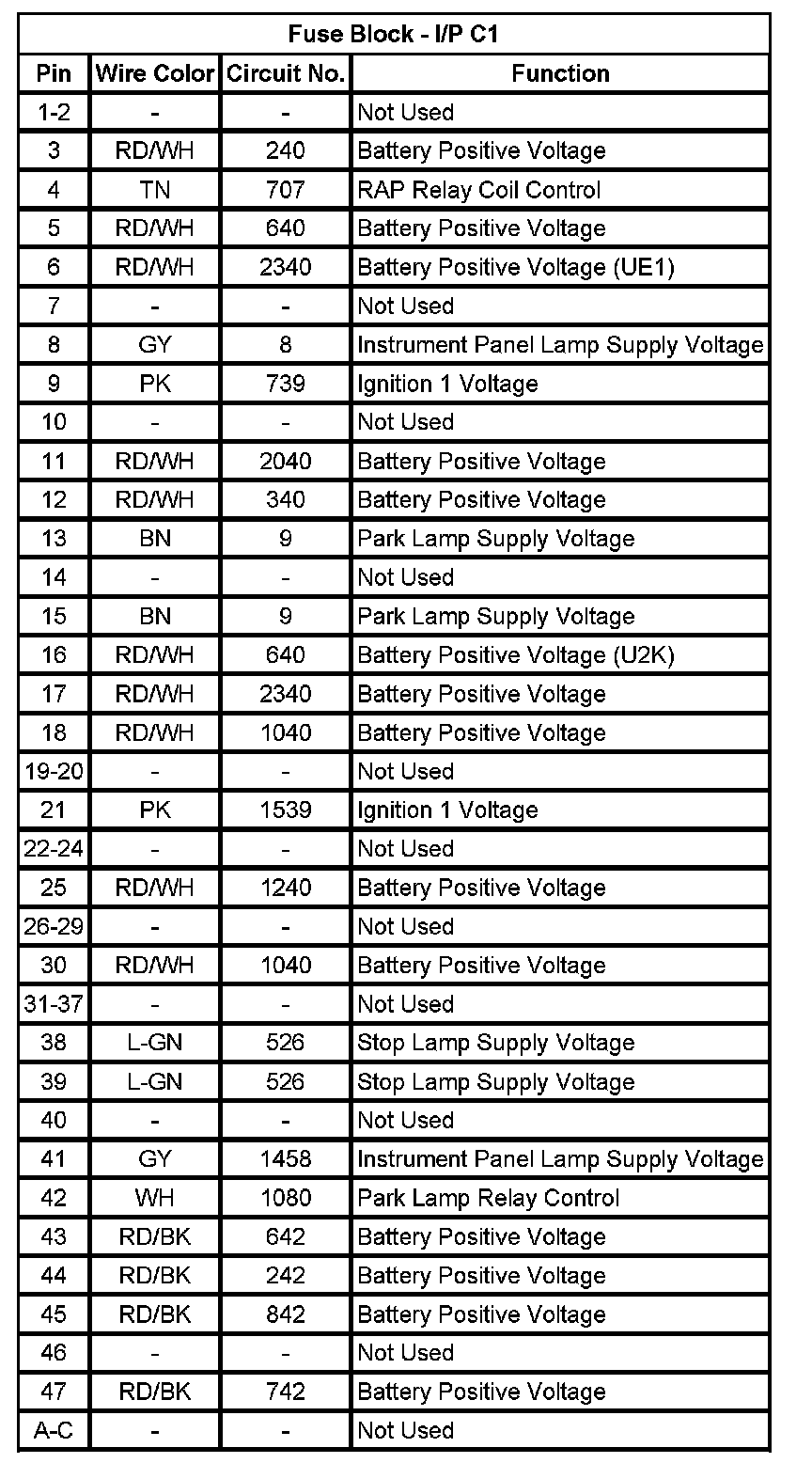

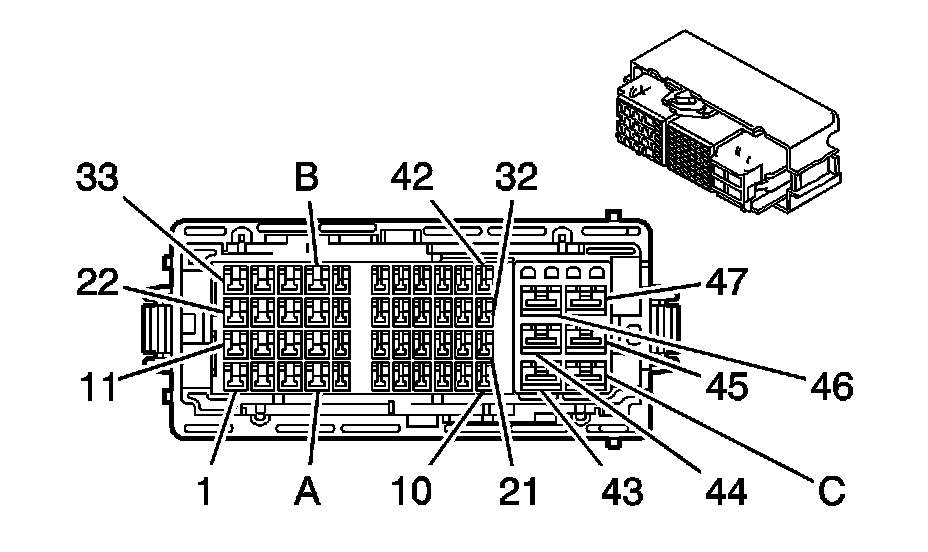

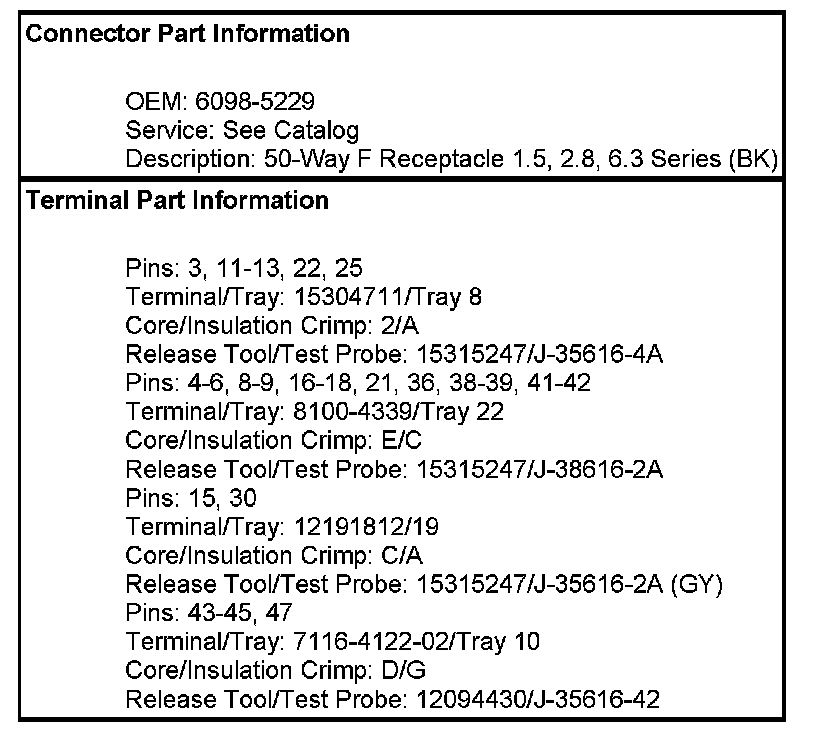

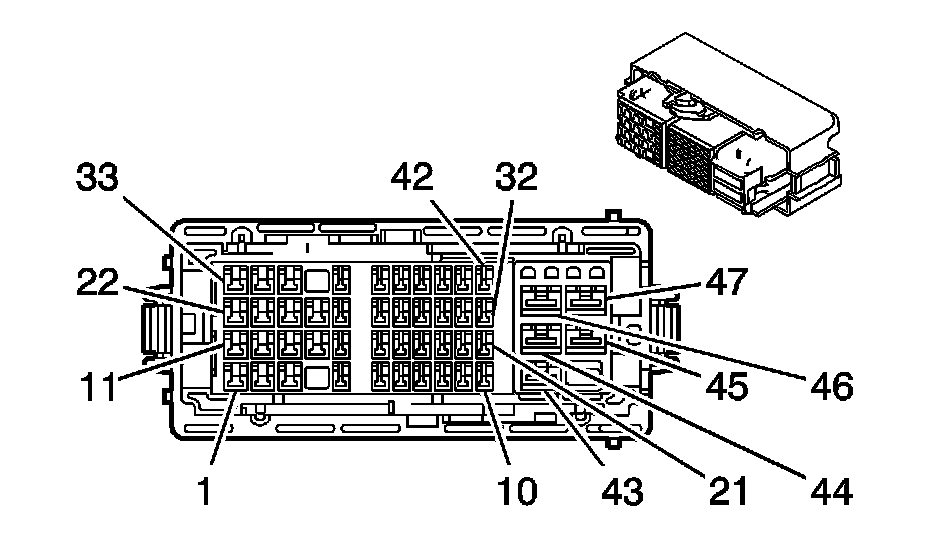

Fuse Block - I/P C1

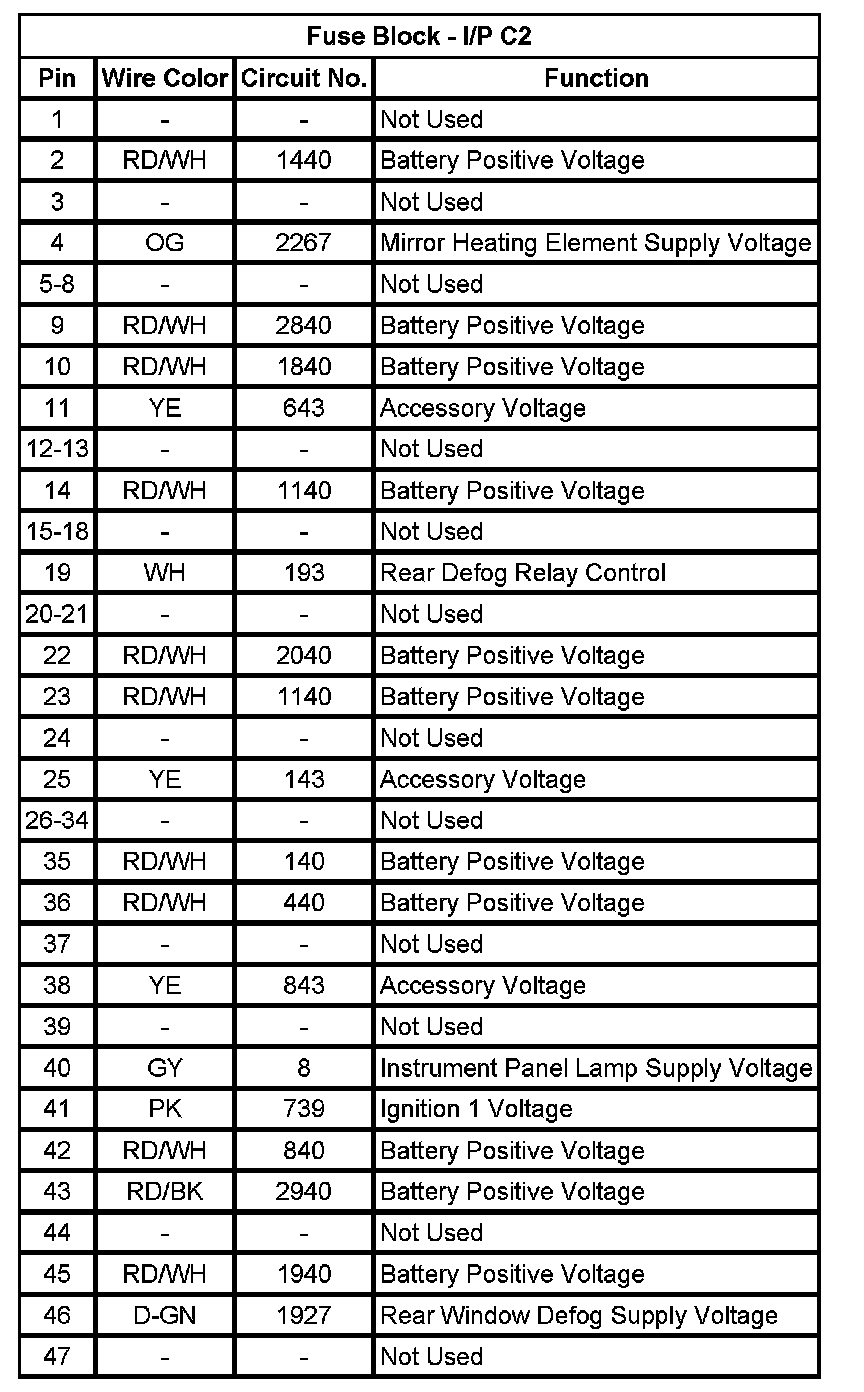

Fuse Block - I/P C2

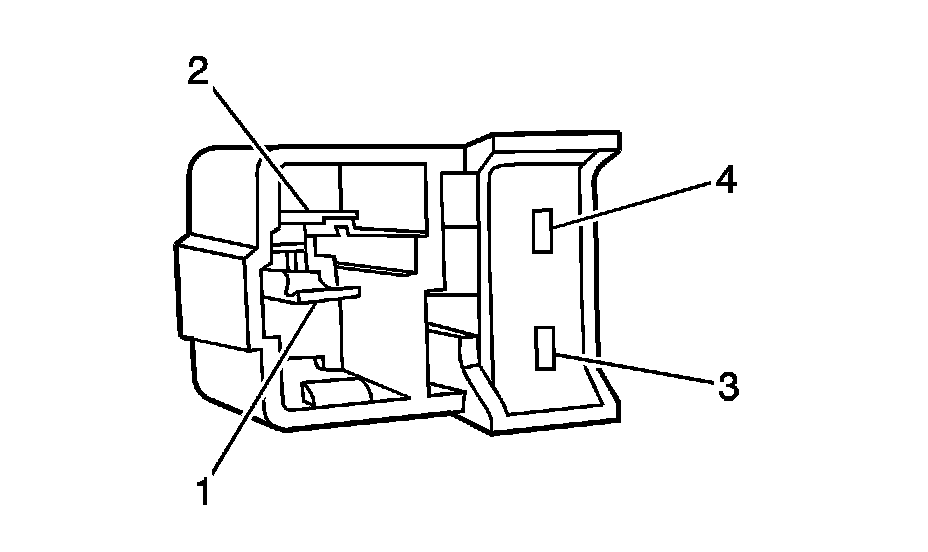

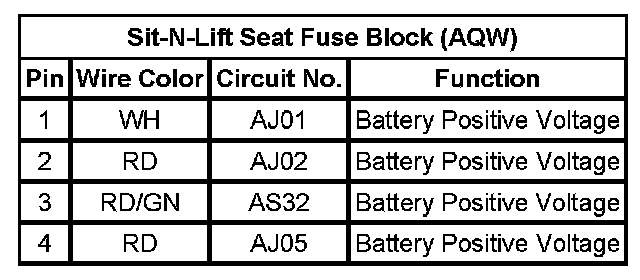

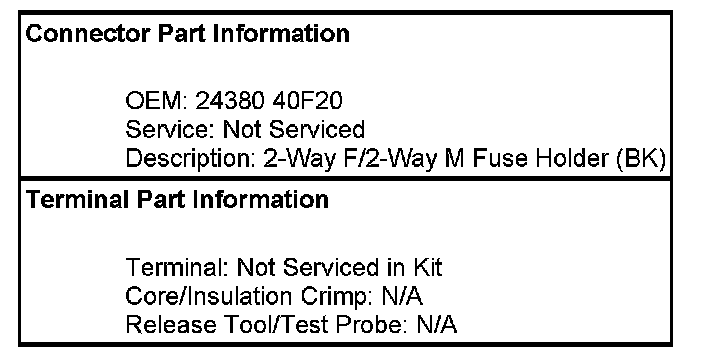

Sit-N-Lift Seat Fuse Block (AQW)
