Underhood Fuse Block
Electrical Center Identification Views

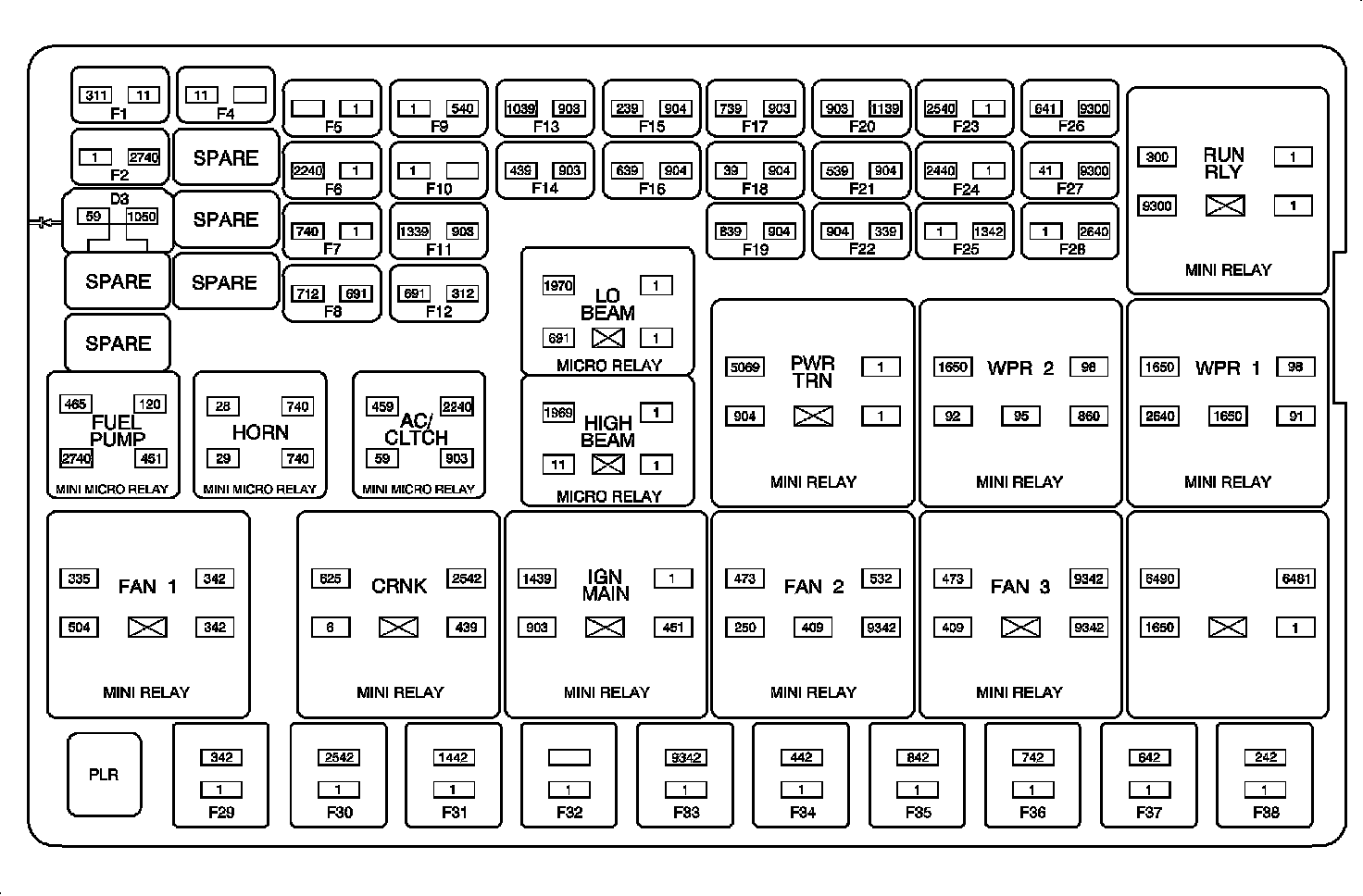

Fuse Block - Underhood Top View

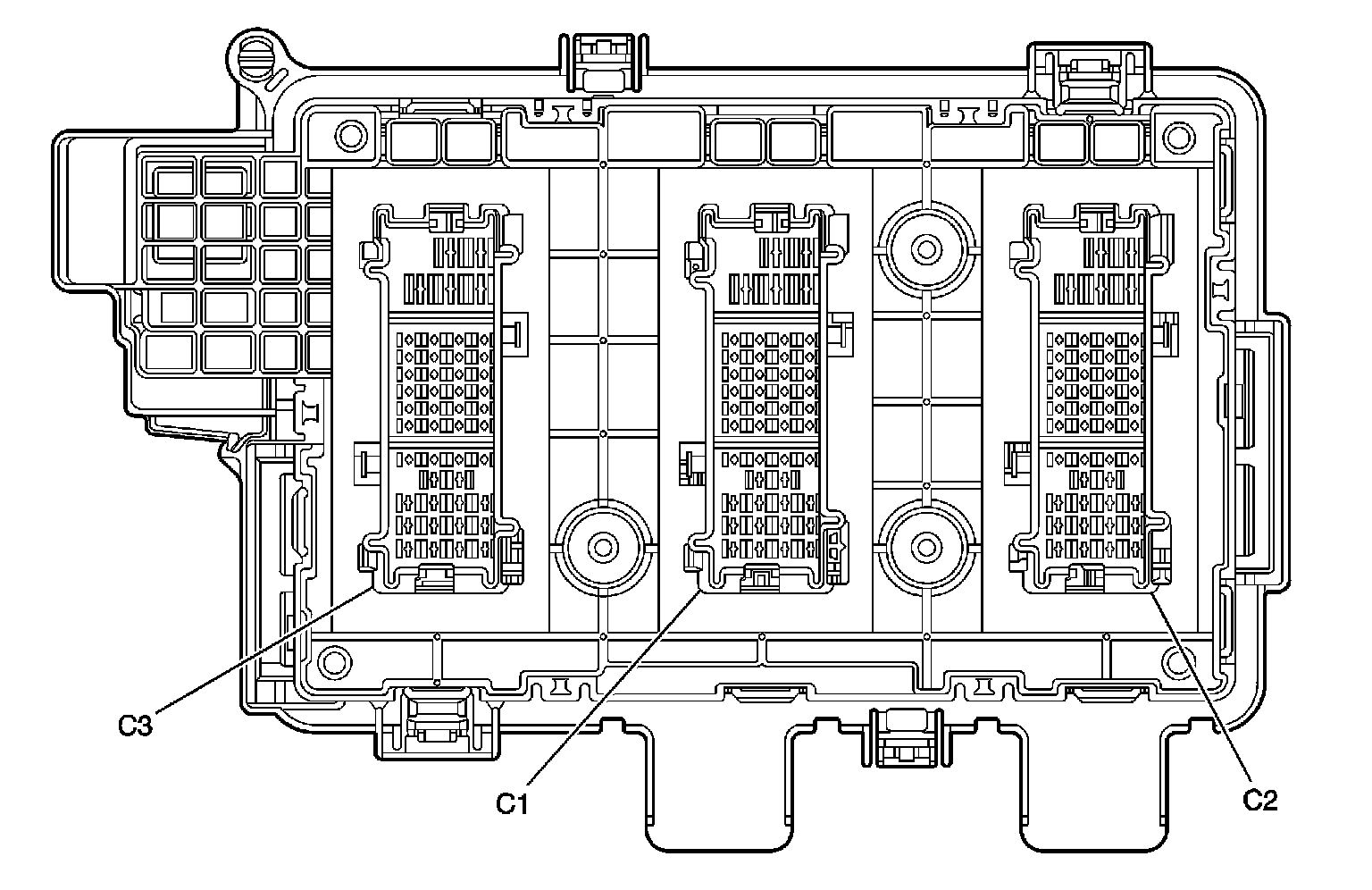

Fuse Block - Underhood Bottom View

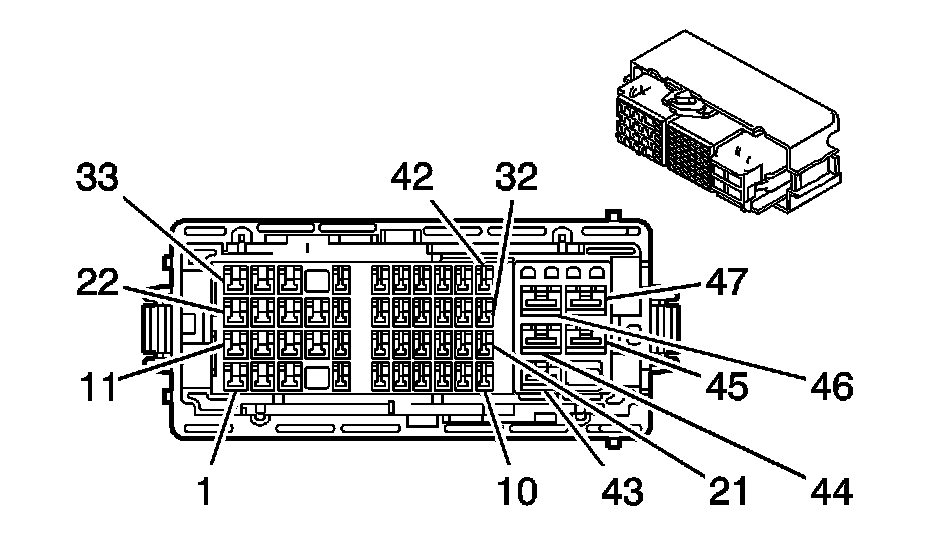

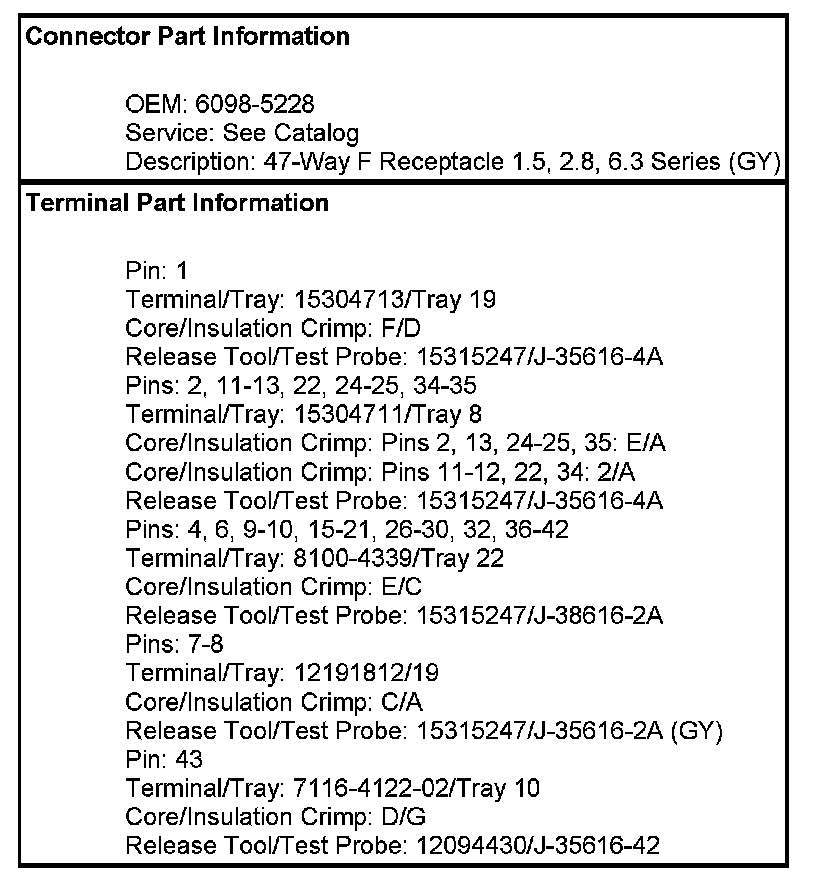

Fuse Block - Underhood C1

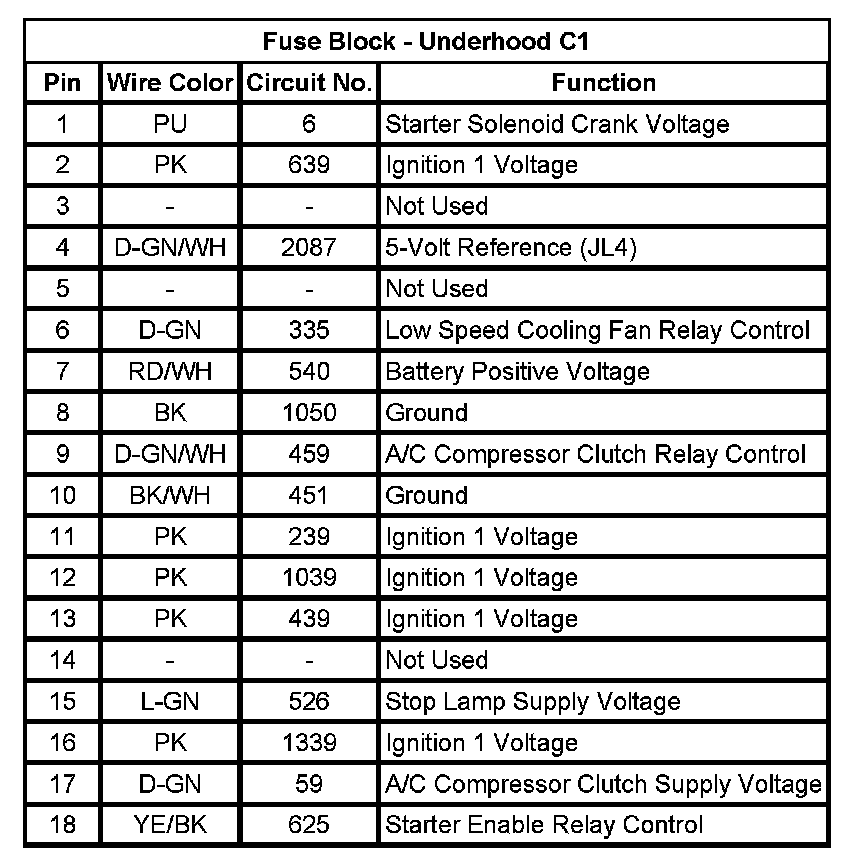

Fuse Block - Underhood C1 (Pin 1 To 18):

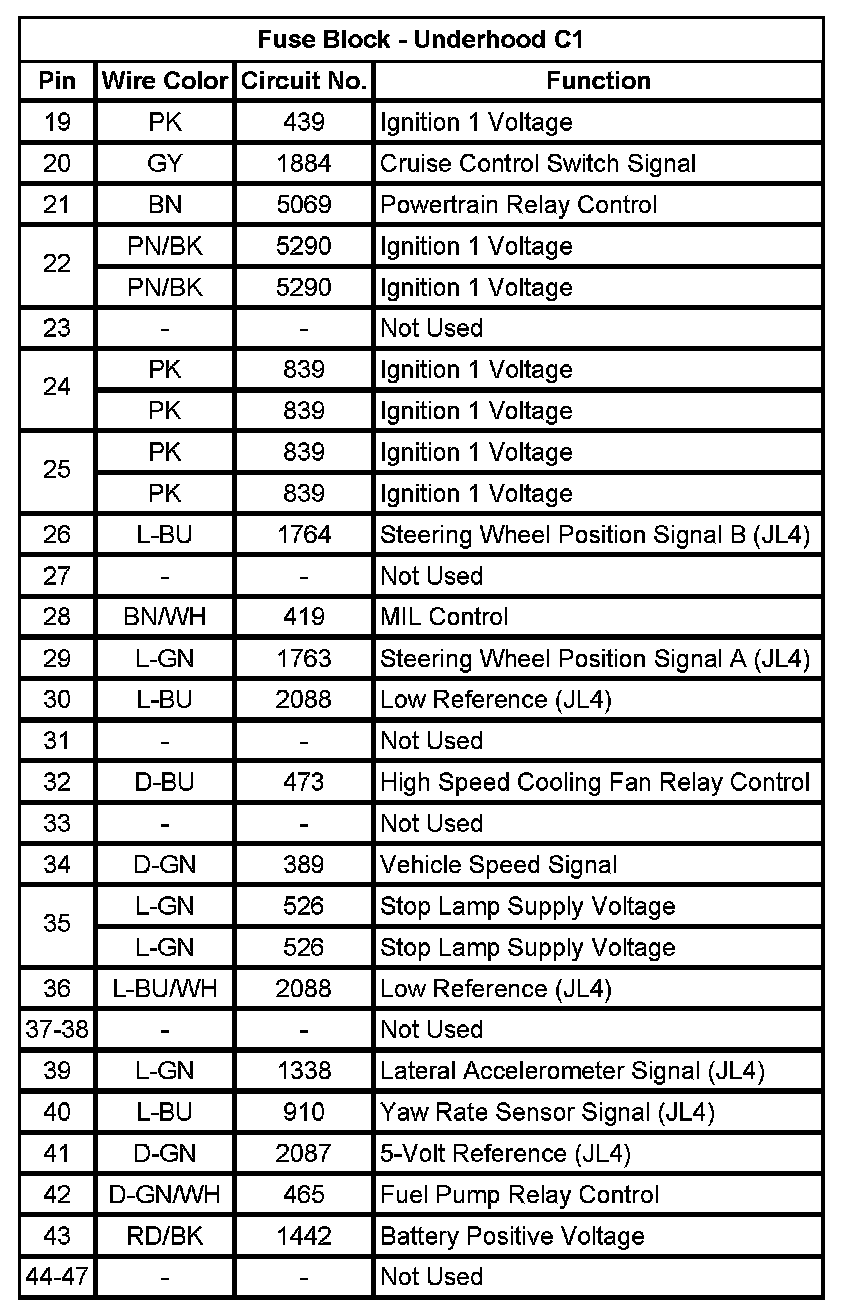

Fuse Block - Underhood C1 (Pin 19 To 47):
Fuse Block - Underhood C2

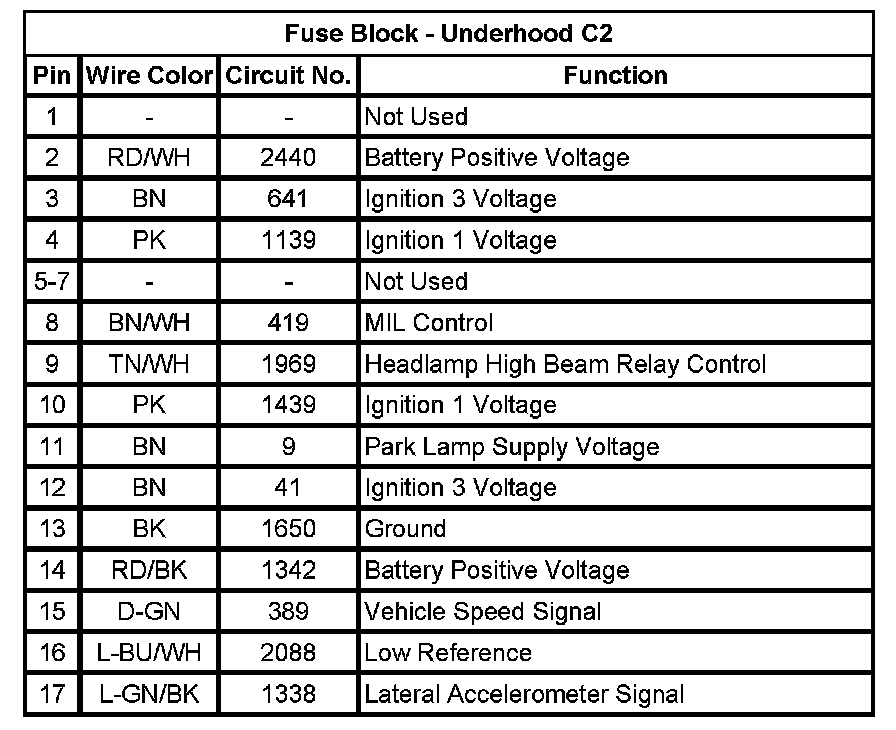

Fuse Block - Underhood C2 (Pin 1 To 17):

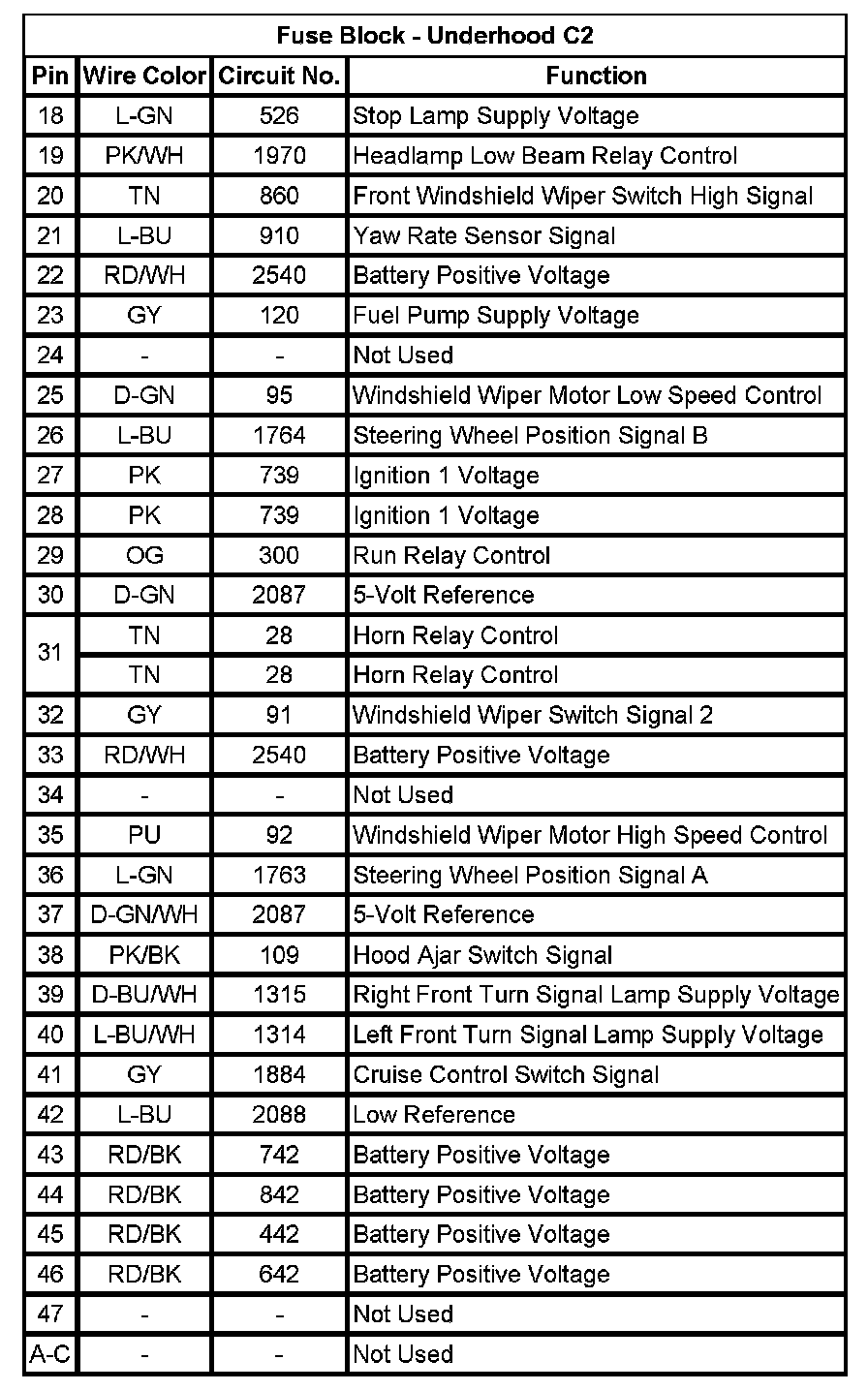

Fuse Block - Underhood C2 (Pin 18 To A-C):

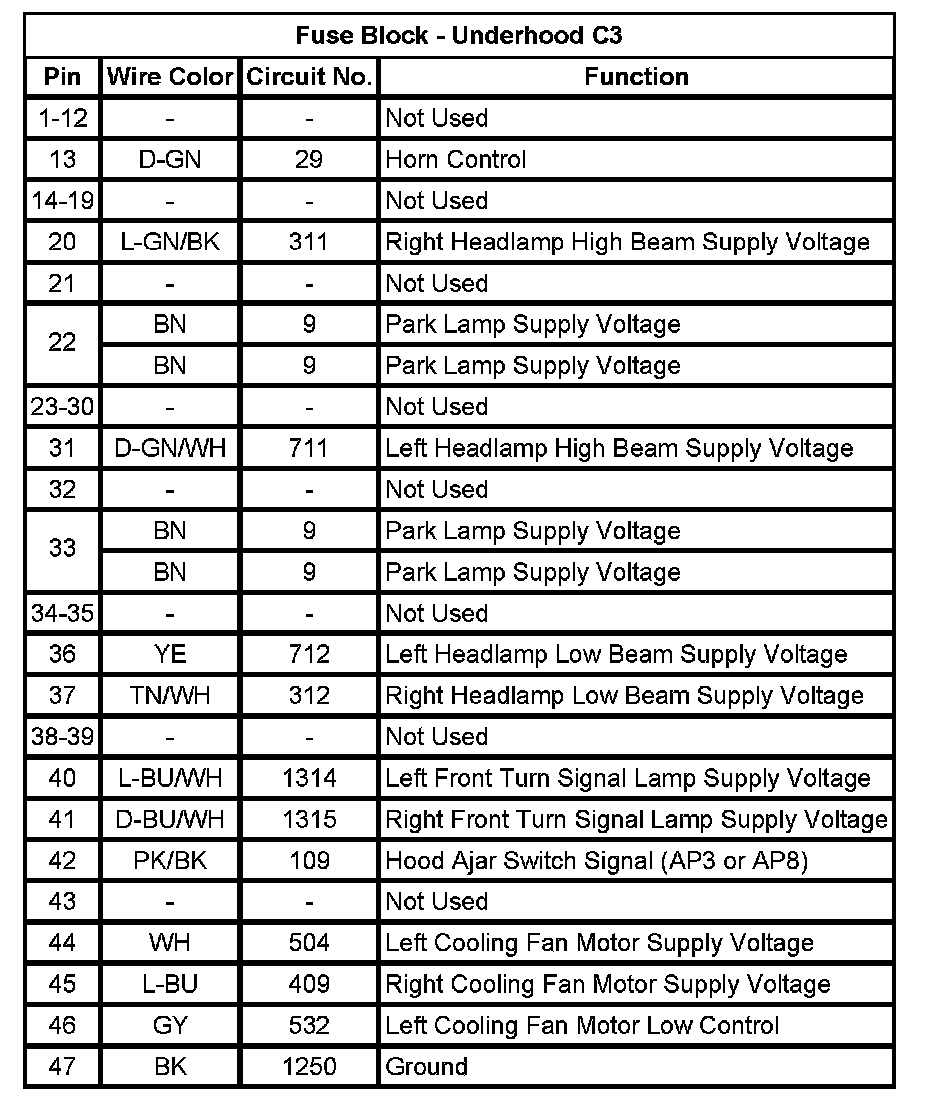

Fuse Block - Underhood C3
