Impact Sensor

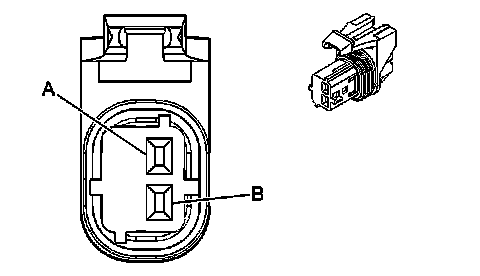

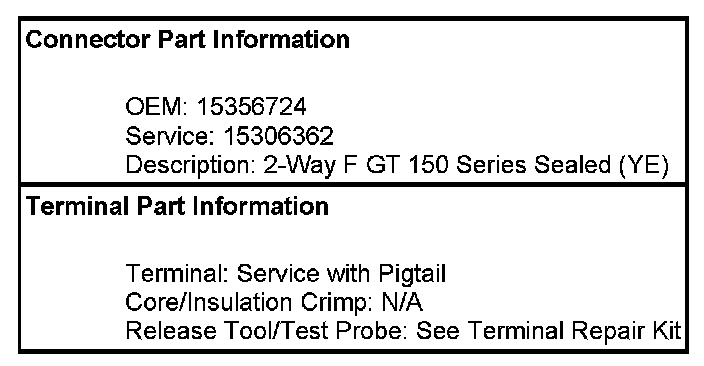

SIR Connector End Views

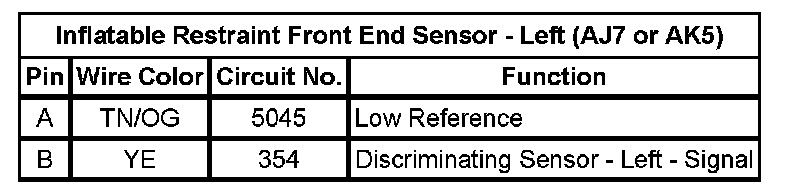

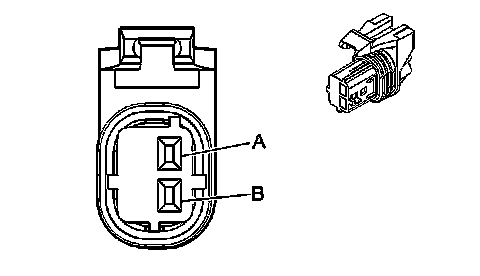

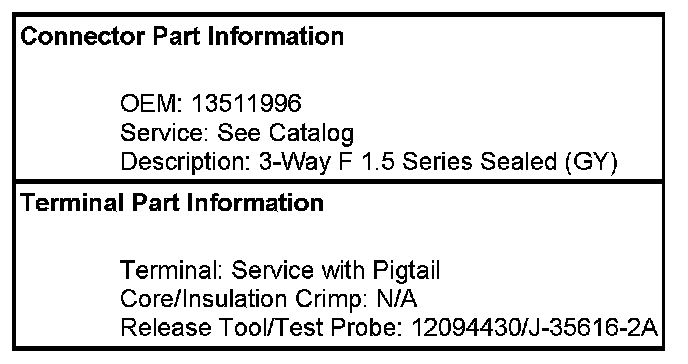

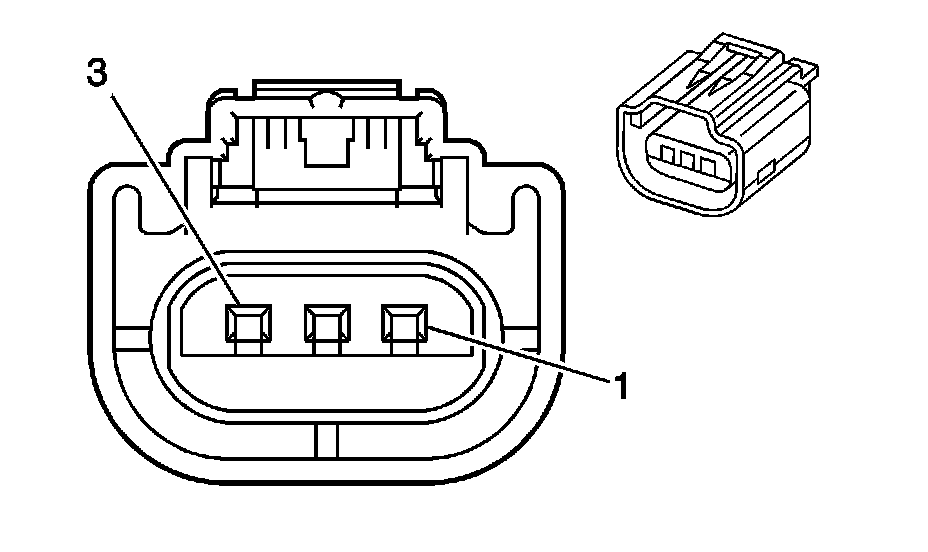

Inflatable Restraint Front End Sensor - Left (AJ7 or AK5)

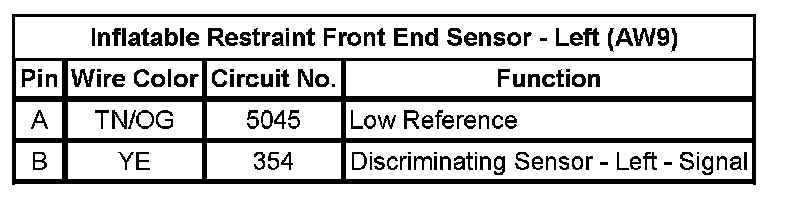

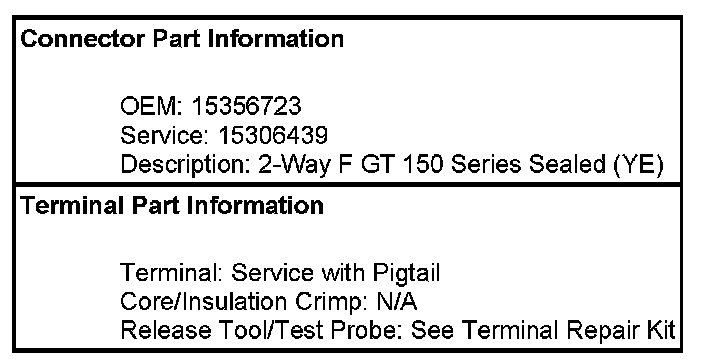

Inflatable Restraint Front End Sensor - Left (AW9)

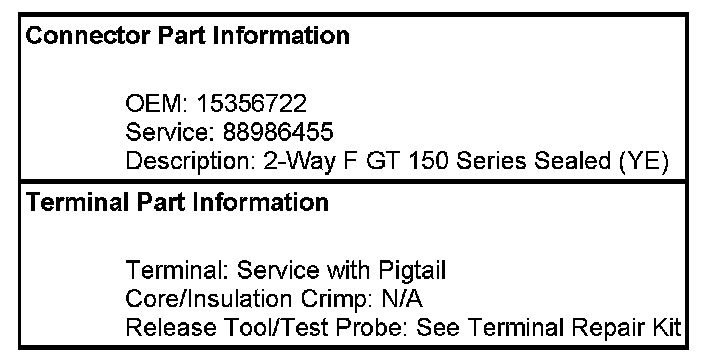

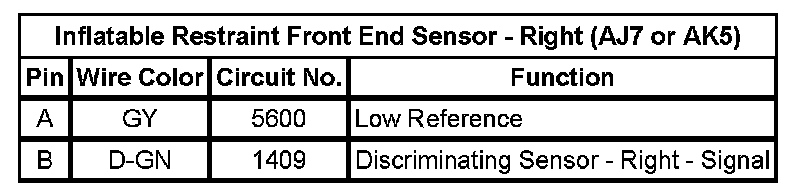

Inflatable Restraint Front End Sensor - Right (AJ7 or AK5)

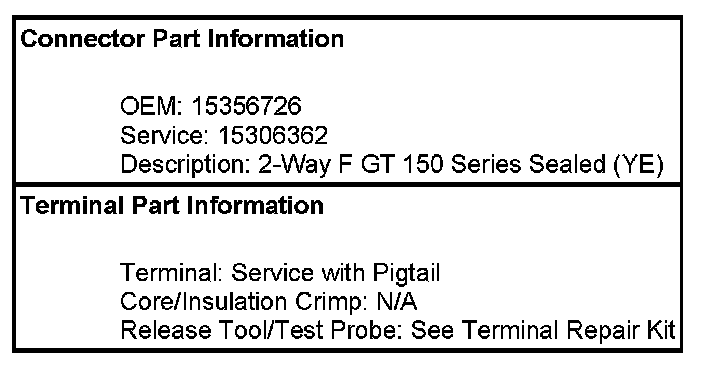

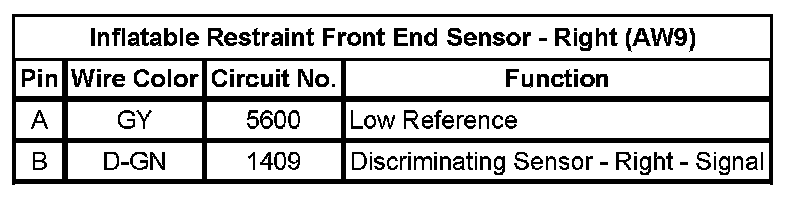

Inflatable Restraint Front End Sensor - Right (AW9)

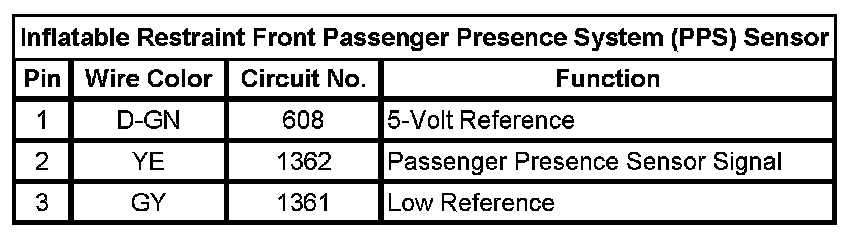

Inflatable Restraint Front Passenger Presence System (PPS) Sensor
