Lateral Accelerometer

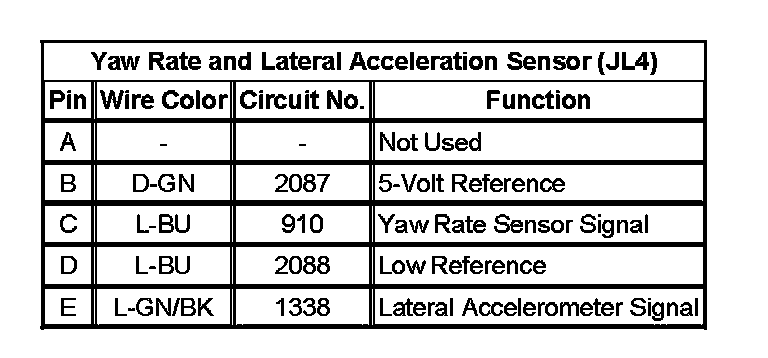

Yaw Rate and Lateral Acceleration Sensor (JL4)

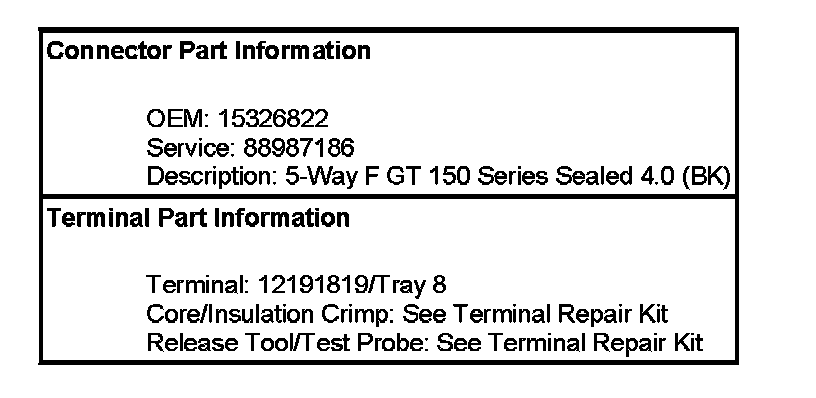

Yaw Rate And Lateral Acceleration Sensor (JL4):
