Body Control Systems

Body Control System Schematics

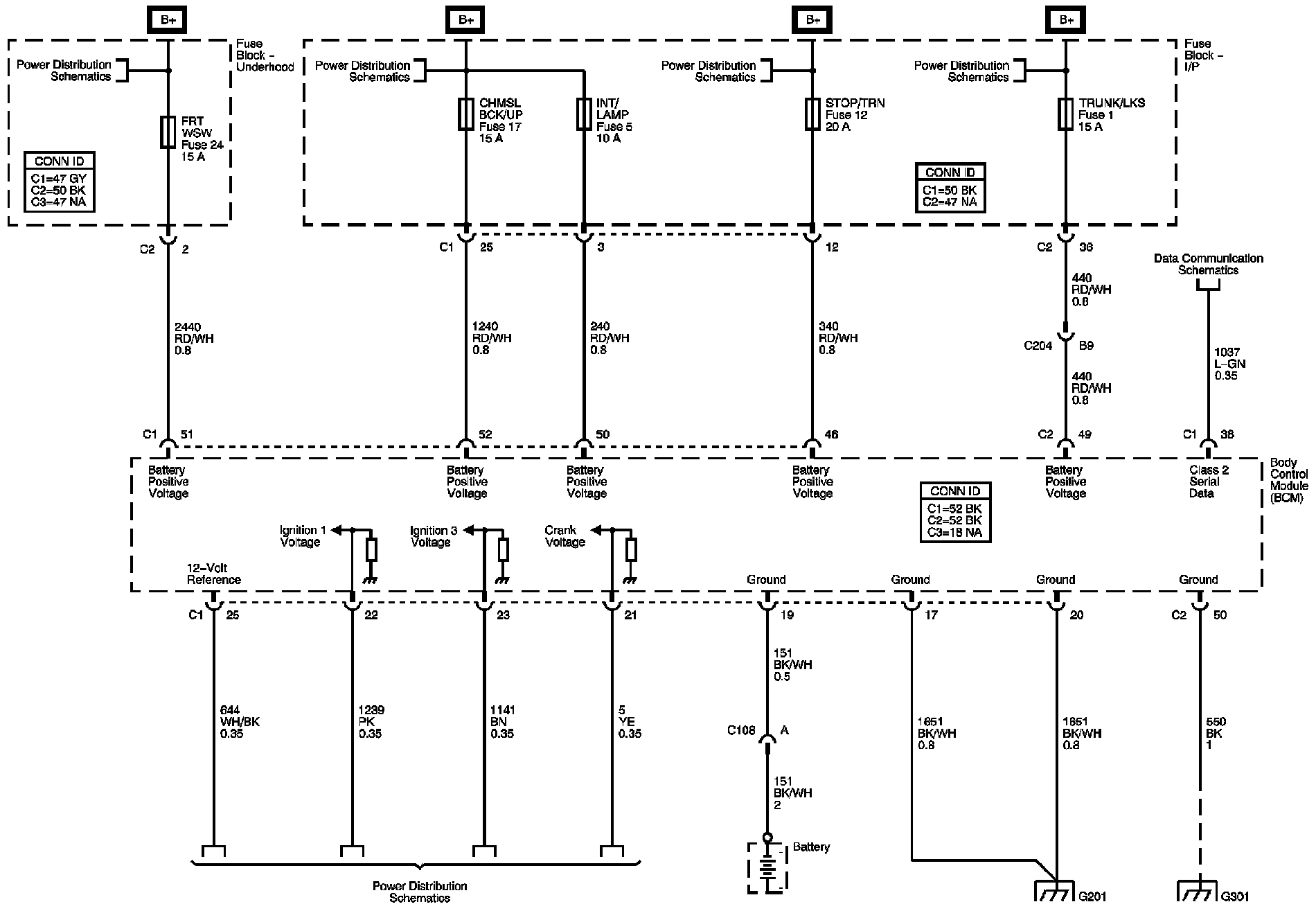

Ground, Power, and References to Data Communication and Power Distribution

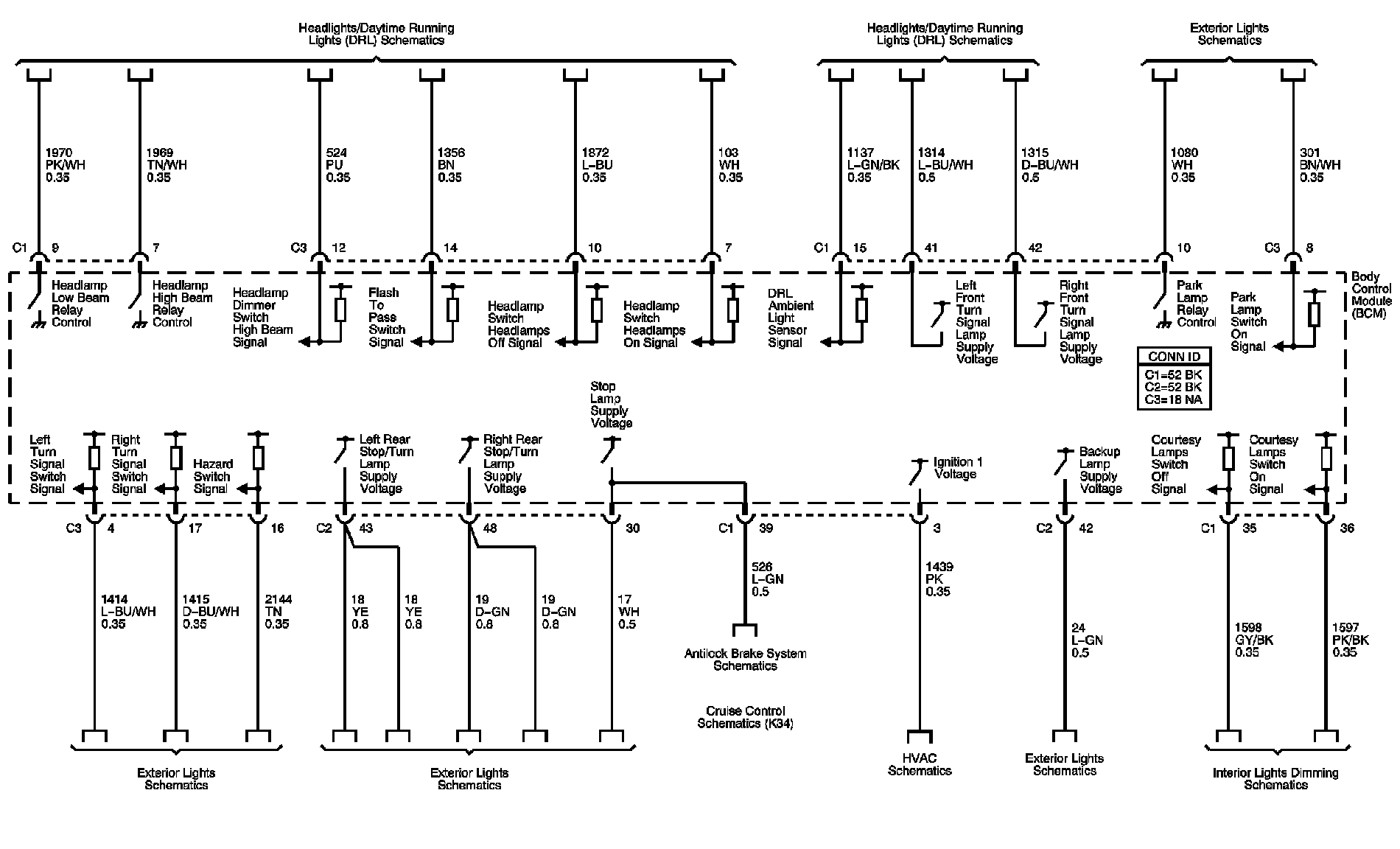

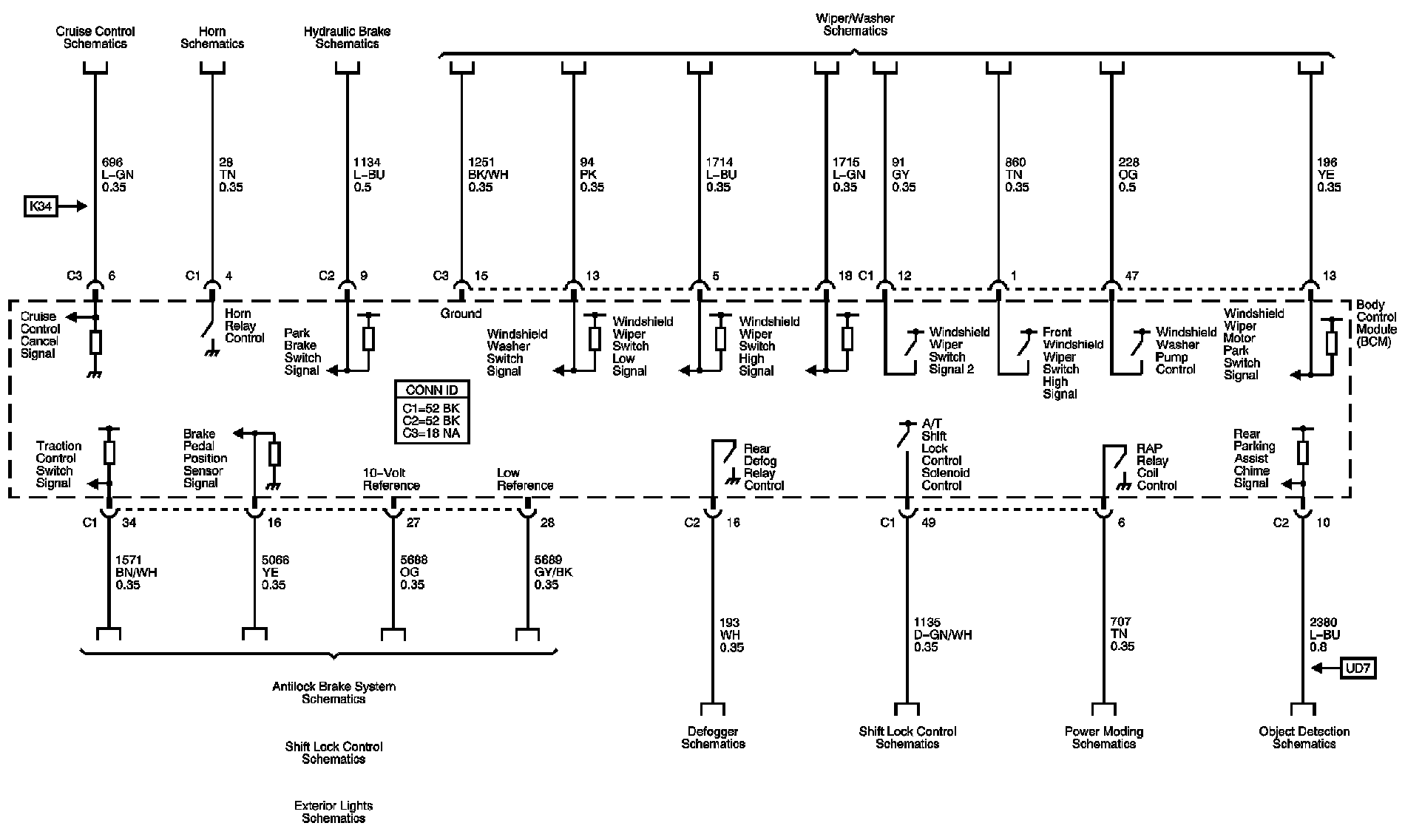

References to Brakes, Cruise Control, Defogger, Exterior Lights, Horn, Object Detection, Power Moding, Shift Lock Control, and Wiper/Washer





References to Antilock Brake System, Cruise Control, HVAC, and Lighting

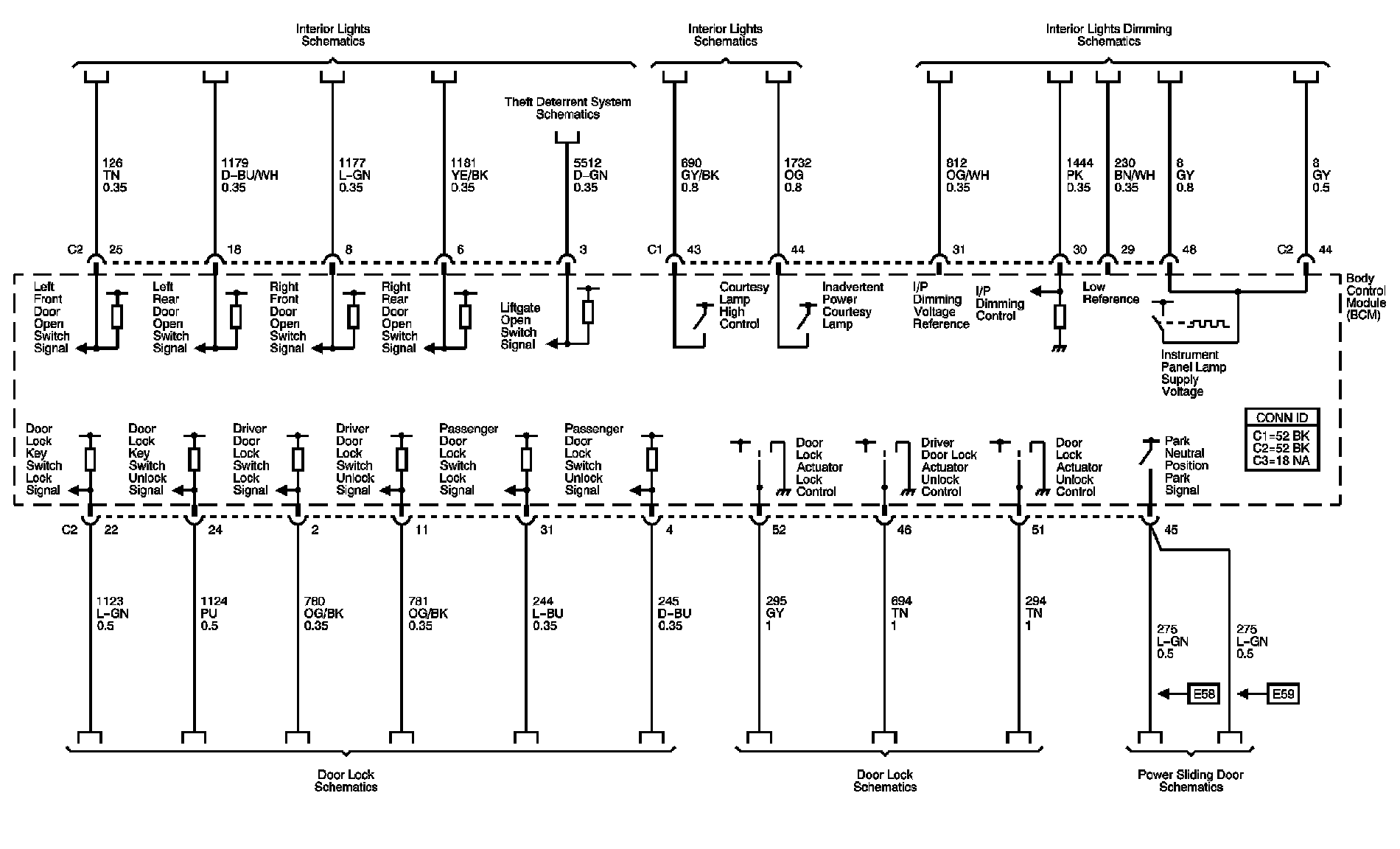

References to Door Locks, Lighting, Sliding Door and Theft Deterrent

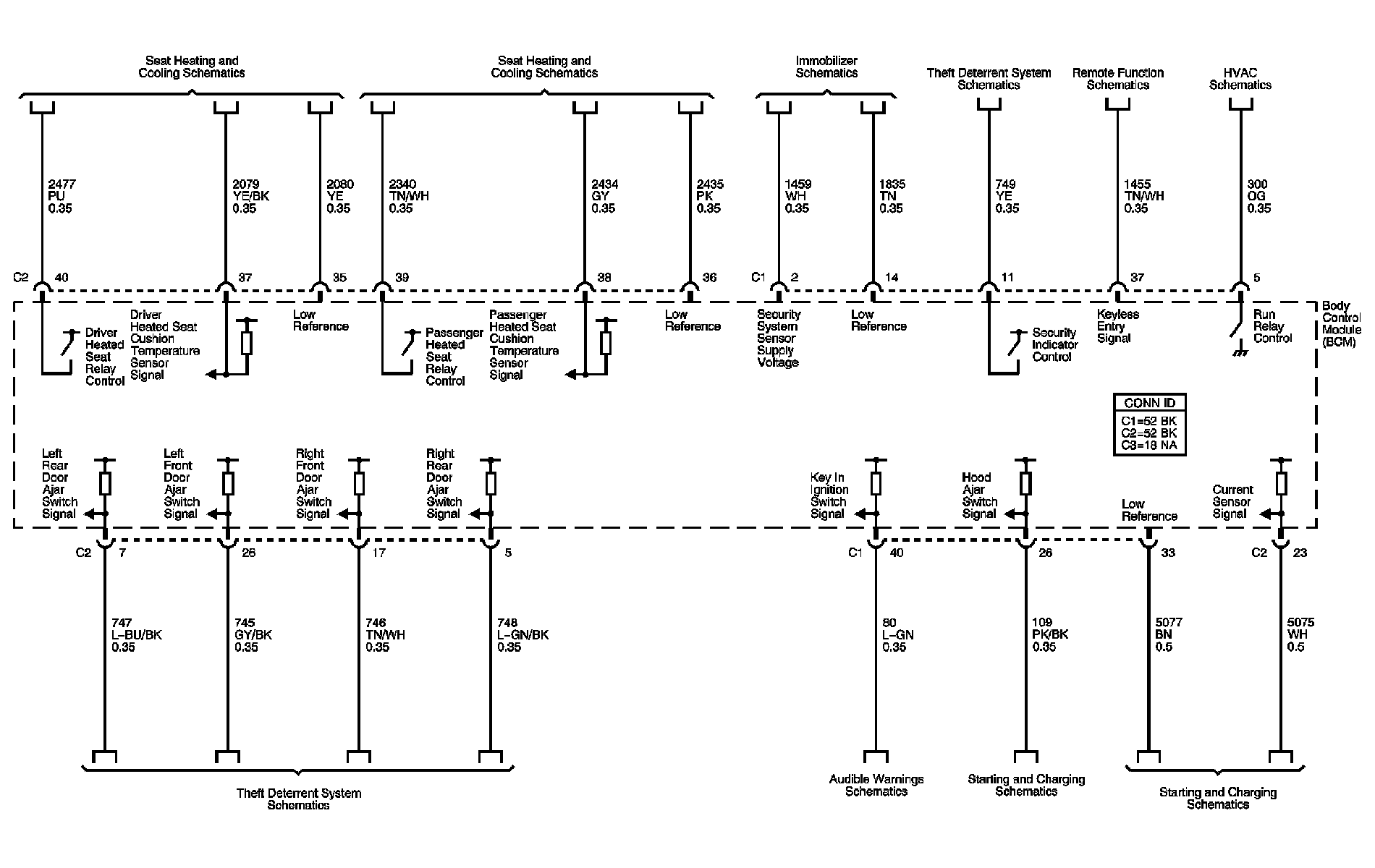

References to Audible Warnings, HVAC, Immobilizer, Remote Function, Seat Heating and Cooling, Starting and Charging, and Theft Deterrent






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
