Power Steering Pump

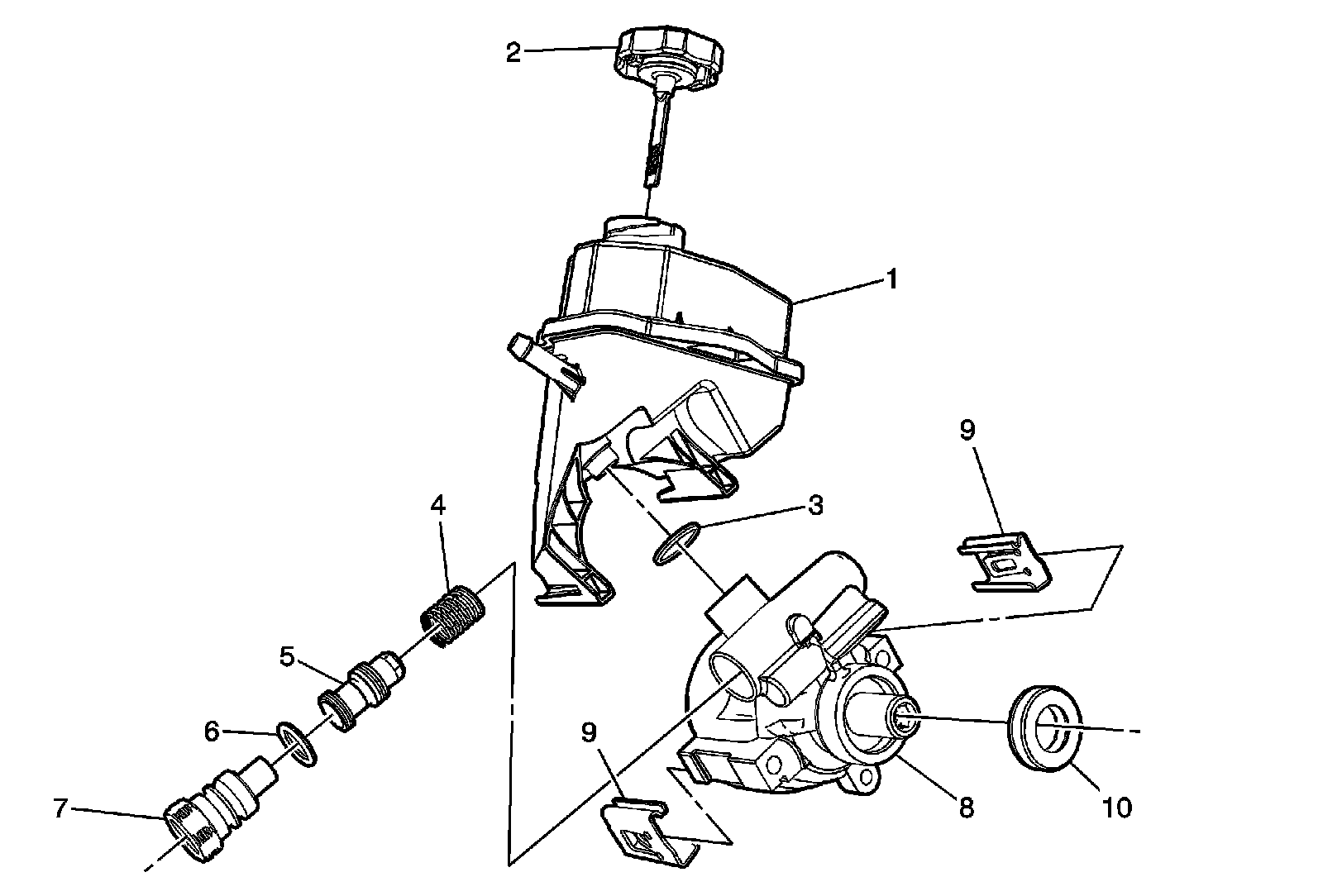

Power Steering Pump Disassembled View

Power Steering Pump Disassembled View:

1 - Power Steering Pump Reservoir
2 - Power Steering Pump Reservoir Cap Assembly
3 - O-ring
4 - Power Steering Pump Flow Control Spring
5 - Power Steering Pump Flow Control Valve
6 - O-ring Seal
7 - O-ring Union Fitting
8 - Power Steering Pump Housing
9 - LH/RH Power Steering Pump Reservoir Retaining Clips
9 - LH/RH Power Steering Pump Reservoir Retaining Clips
10 - Power Steering Pump Drive Shaft Seal
