Control Module HVAC: Locations

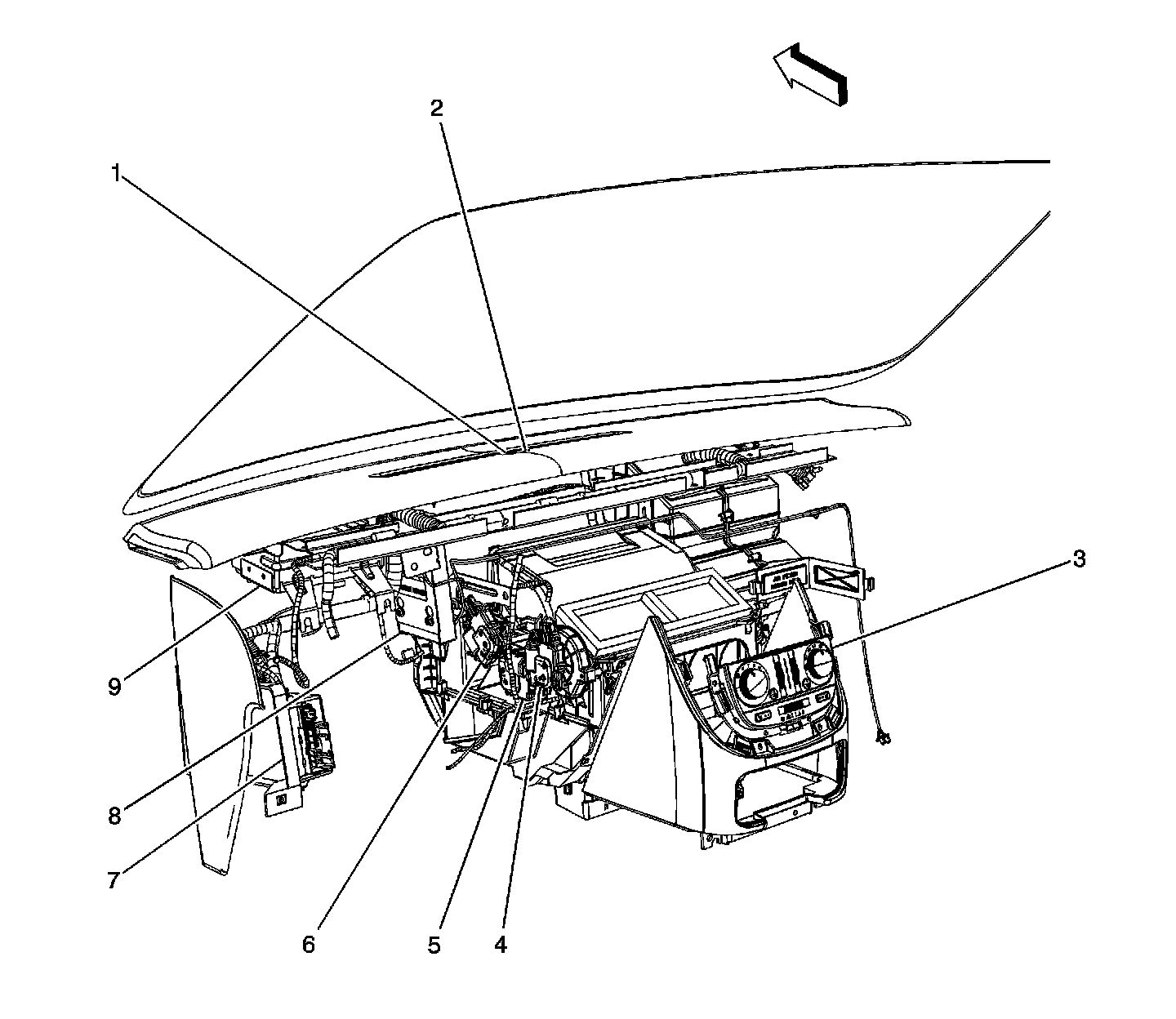

HVAC Component Views

Middle Left Side of I/P Components




1 - Theft Light Emitted Diode (LED) (UA6)
2 - Ambient Light Sensor
3 - HVAC Control Module
4 - Vent and Floor Actuator
5 - Air Temperature Actuator (C60) or Air Temperature Actuator - Left (CJ3)
6 - Defrost Actuator
7 - Body Control Module (BCM)
8 - Digital Radio Receiver (U2K)
9 - Vehicle Communication Unit (VCU) (UE1)
