Frame Views

Harness Routing Views

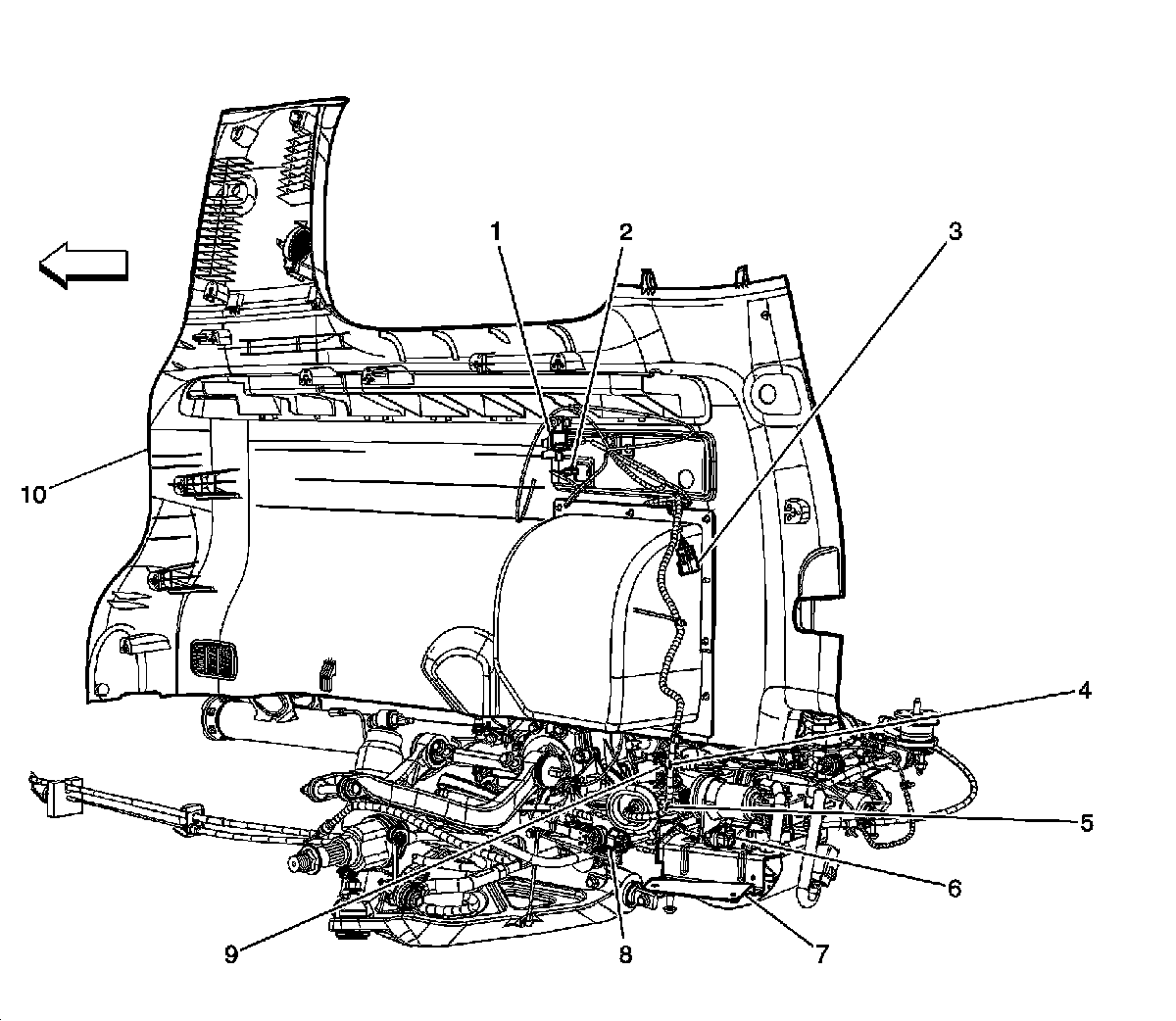

Left Rear Frame and Underbody




1 - Automatic Level Control (ALC) Solenoid Valve (G67 w/o Z10)
2 - Automatic Level Control (ALC) Inflator Air Switch (G67 w/o Z10)
3 - C405 Body Harness to Automatic Level Control (ALC) Jumper Harness (G67)
4 - S431 (G67)
5 - S433 (G67)
6 - Automatic Level Control (ALC) Compressor Connector (G67)
7 - Automatic Level Control (ALC) Compressor (G67)
8 - Automatic Level Control (ALC) Sensor (G67)
9 - C409 ALC Jumper Harness (G67) to Trailer Harness (V92)
10 - Left Rear Cargo Trim Panel
