Power Seat Control Module: Locations

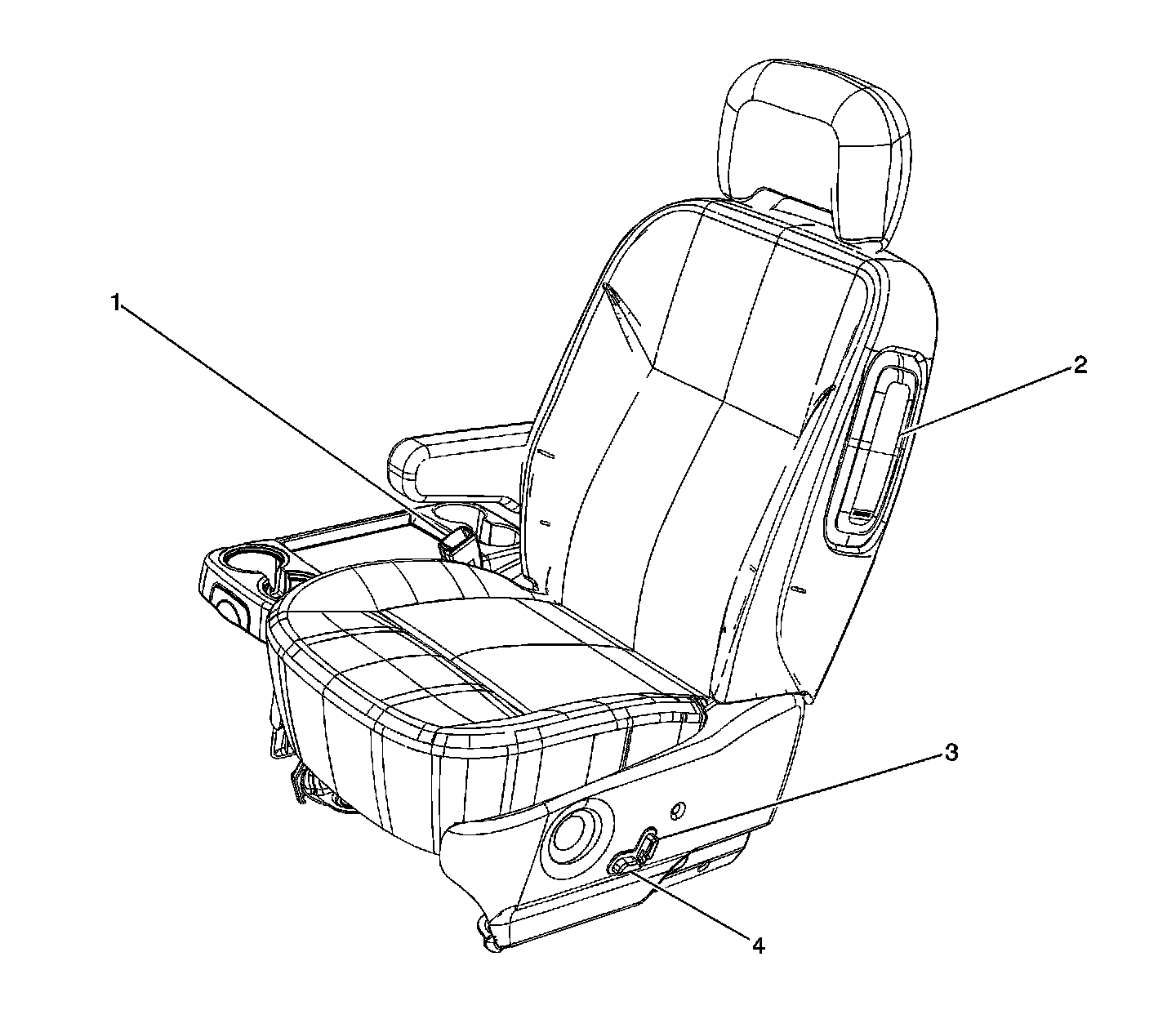

Power Seat Component Views

Driver Seat




1 - Seat Belt Switch - Left
2 - Seat Back Cover
3 - Heated Seat Element - Driver Back (KA1)
4 - Inflatable Restraint Side Impact Module - Left (AJ7)
5 - Memory Seat Module - Driver (AG0)
6 - Seat Adjuster Motor Assembly - Driver (AG0 or AG1)
7 - Seat Adjuster Switch - Driver (AG0 or AG1) (Typical)
8 - Heated Seat Element - Driver Cushion (KA1)
9 - Seat Cushion Cover
