Parking Assist Control Module



Object Detection Connector End Views

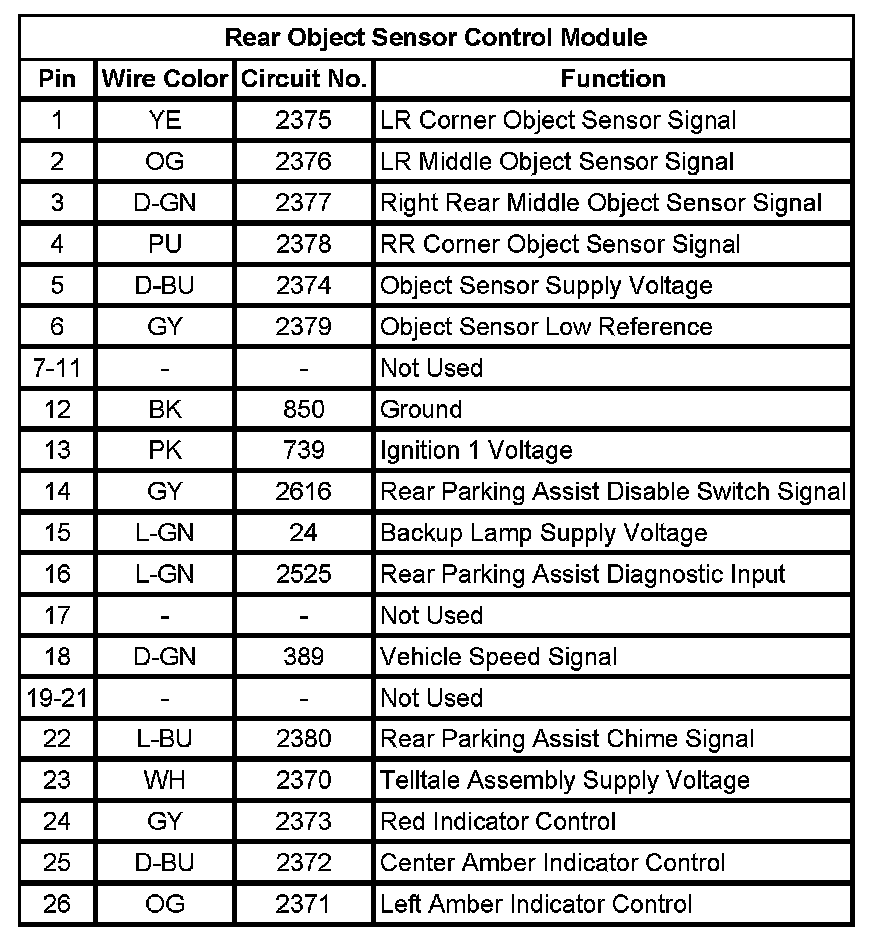

Rear Object Sensor Control Module
