Mobile Entertainment Player Module

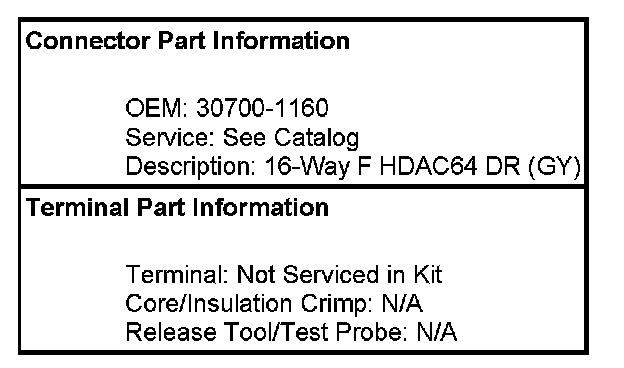

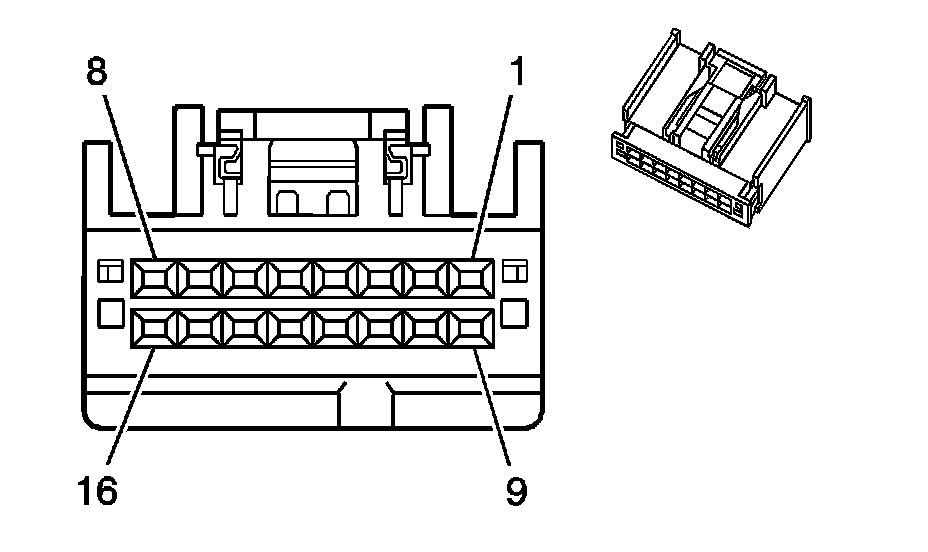

Entertainment/Communication Connector End Views

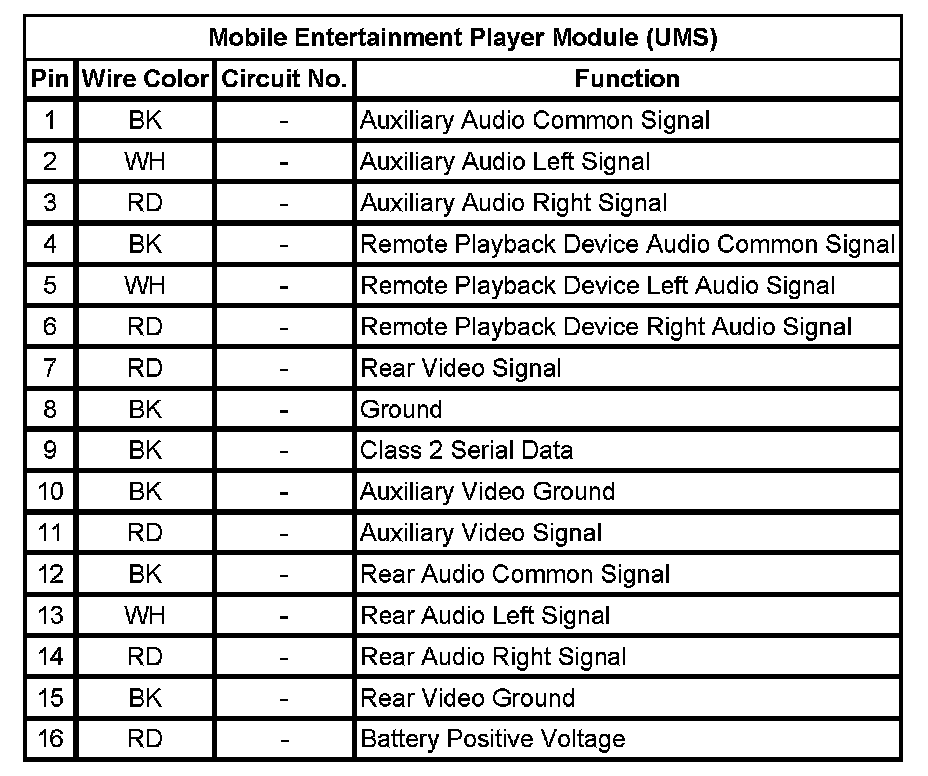

Mobile Entertainment Player Module (UMS)
